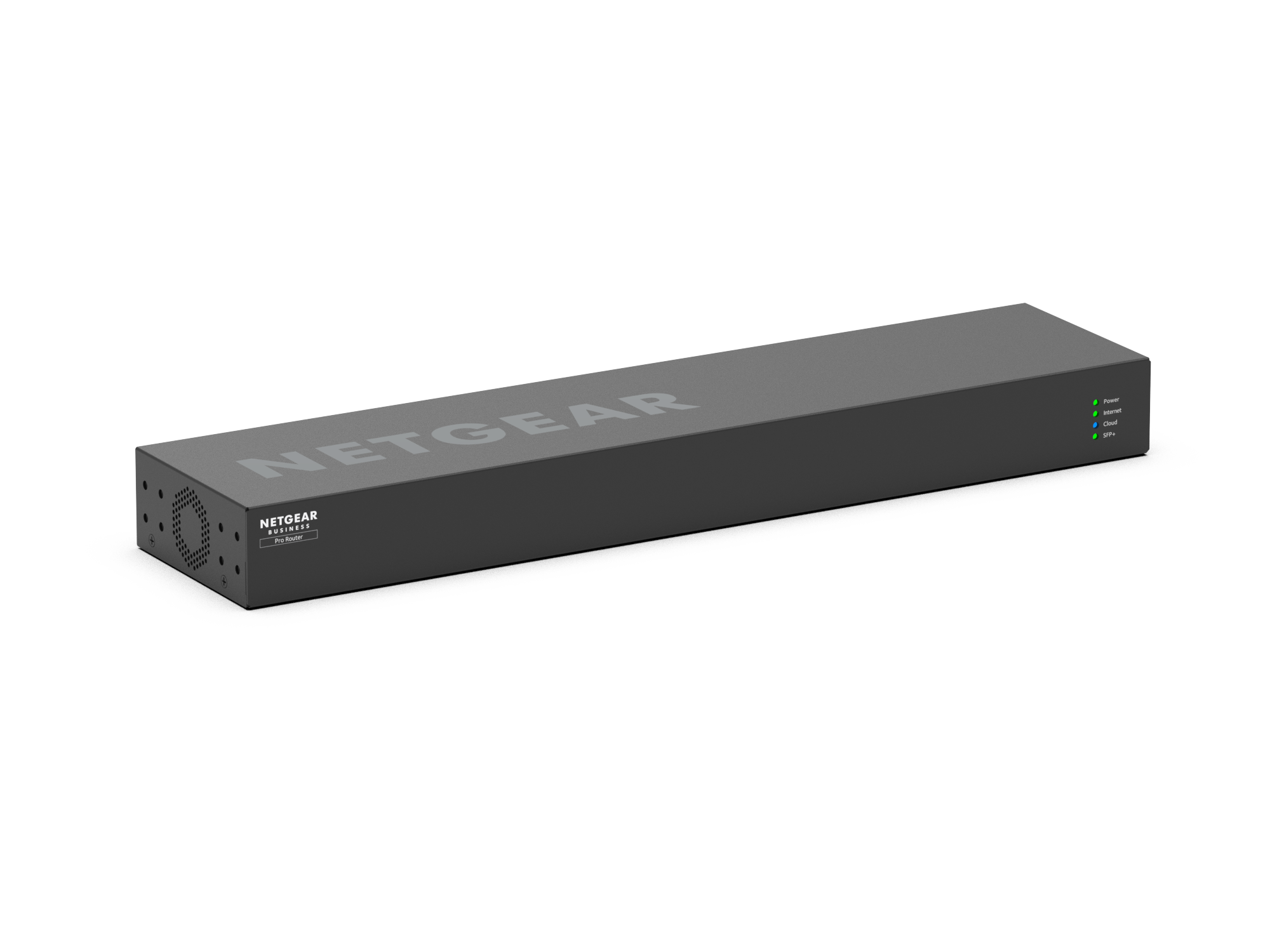

Pro Router (PR60X)
10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
Pro Router (PR60X)
10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management

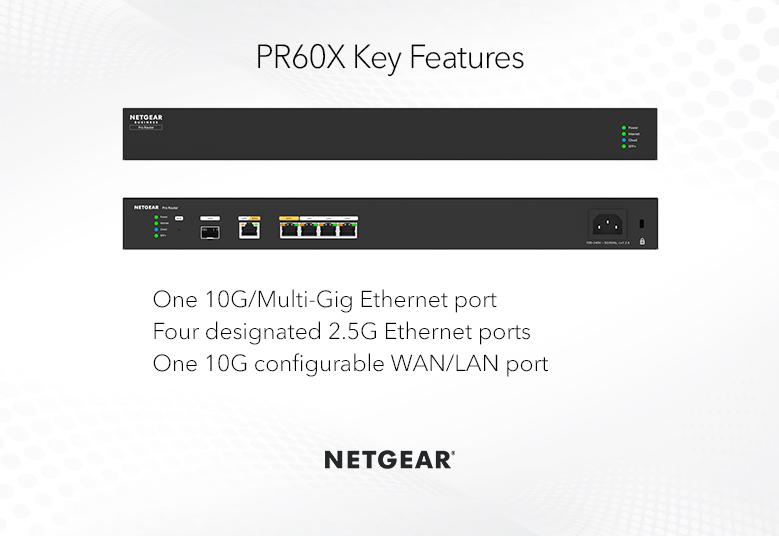

- 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
- High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Control, manage and monitor through NETGEAR Insight

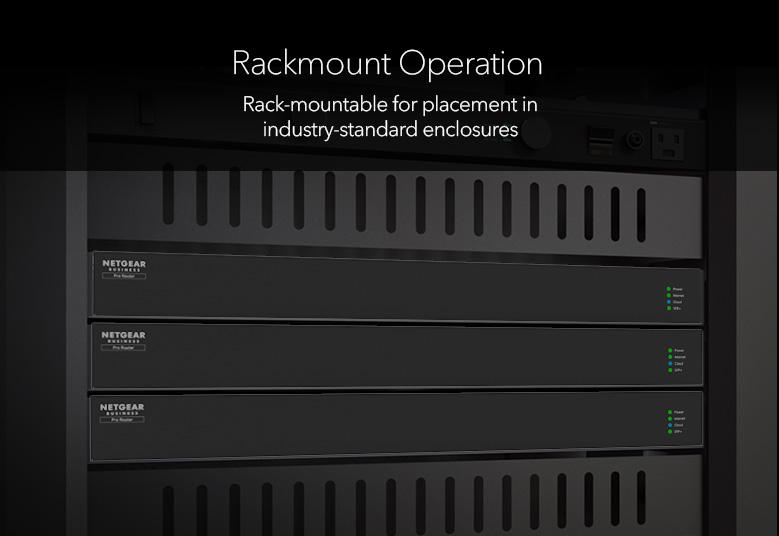

- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-to-site VPN connections
- 3-year hardware warranty, 3-year next business day replacement, 90-day phone/chat support
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Technical Specifications
Product Specifications
-
NETGEAR PR60X 10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
-
Rack-mount kit
-
Rubber feet (for Desktop deployment)
-
Power cord(s) (varies by region)
-
Ethernet cable
-
Installation guide
-
Width440mm
-
Depth100mm
-
Height43.2mm
-
Weight3.34lb (1.513kg)
-
HardwareQuad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
-

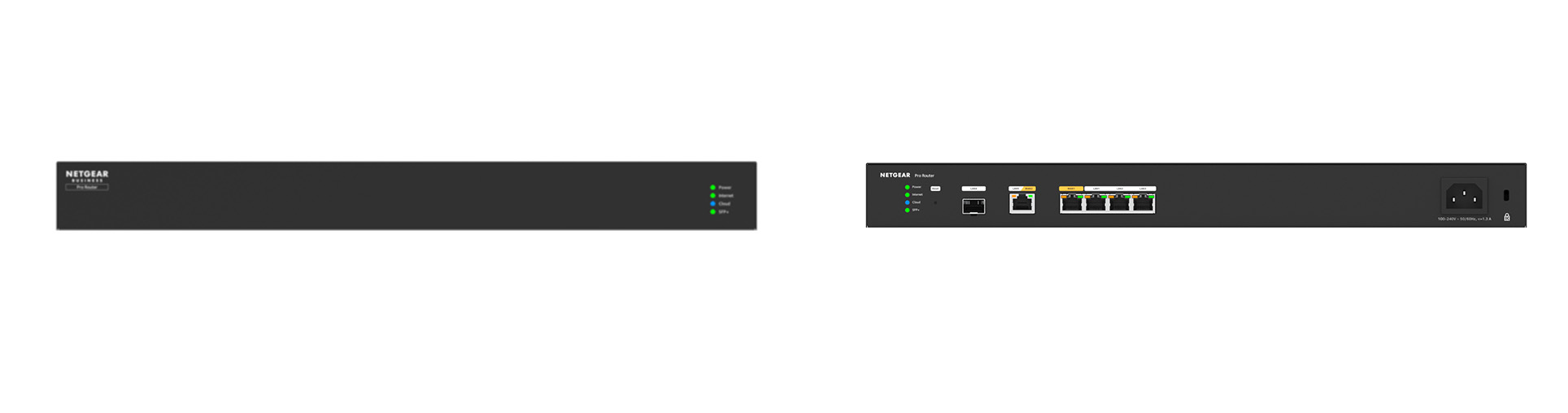

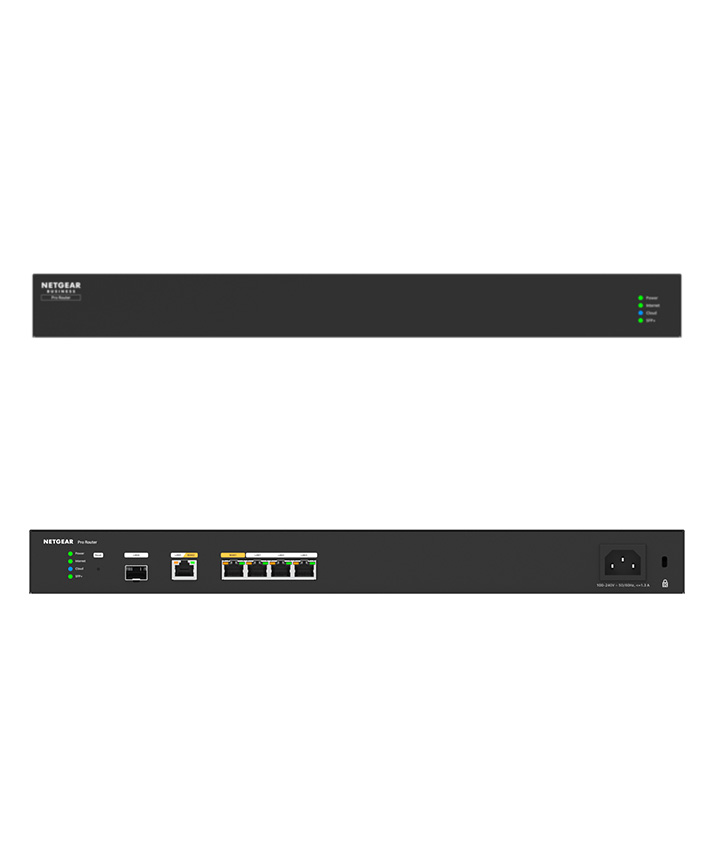

Connectivity
1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN)
3 x 2.5G/1G RJ-45 (LAN)
1 x 10G/1G SFP+ (LAN)
-
Performance
LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port
WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only
-
LAN/VLAN
Maximum Number of VLANs is 8
DHCP Server (limit is 8)
802.1Q VLAN
-
SecurityFirewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port
-
VoIP SIP ALGYes
-
NetworkingISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
-
VPNIPSec Site-to-Site
-
Encryption/Authentication3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
-
Key ExchangeIKEv1, IKEv2, Pre-shared Key
-
Management Options
Insight Remote Cloud Management
Web GUI
-
LoggingAccepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
-
Major Regulatory Compliance EnvironmentRoHS
-
SafetyCE/LVD, CSA
-
EMIFCC Part 15 Class B, CE mark
-
Operating Temperature0° to 40°C (32° to 104° F)
-
Storage Temperature-20° to 70° C (-4° to 158° F)
-
Humidity
Operating humidity 90% maximum relative humidity, non-condensing,
Storage humidity 95% maximum relative humidity, non-condensing
-
Power
AC 100-240V, 50/60Hz, 1.3A
Electrical Specifications Power adapter input localized to regions
-

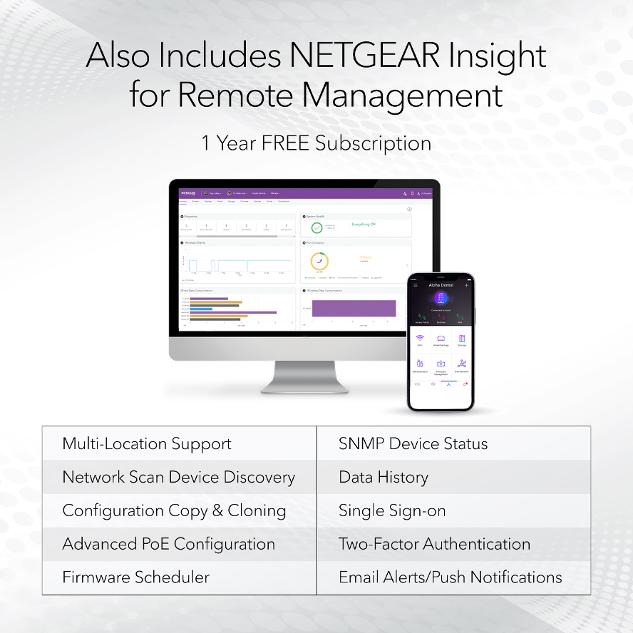

NETGEAR Insight Remote Cloud Management
NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
Learn More
-
ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one-, three-, or five-year contracts.
