Upgrade to blazing-fast 5.4Gbps† of WiFi 6 on up to 75 devices simultaneously across more space: 7 rooms or up to 7,500 sq. ft. Protected by award-winning NETGEAR security services, the RBK763S includes a dedicated connection for instant router-satellite communication and 7 Gigabit ports to give your most demanding tech products their own wired connection. 1 year of award-winning NETGEAR Armor internet security included. RBK763S RBK763S-100EUS RBK763S-100EUS

AX5400 WiFi Mesh System (RBK763S) armor

NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, with 1 year of NETGEAR Armor included, Router + 2 Satellites armor

AX5400 WiFi Mesh System (RBK763S)

NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, with 1 year of NETGEAR Armor included, Router + 2 Satellites armor

Upgrade to blazing-fast 5.4Gbps† of WiFi 6 on up to 75 devices simultaneously across more space: 7 rooms or up to 7,500 sq. ft. Protected by award-winning NETGEAR security services, the RBK763S includes a dedicated connection for instant router-satellite communication and 7 Gigabit ports to give your most demanding tech products their own wired connection. 1 year of award-winning NETGEAR Armor internet security included.

BUY NOW

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

ORBI FAMILY
COMPARISON

760 Series
WiFi: WiFi 6
Speed: up to 5.4Gbps
Devices: up to 75
Coverage: up to 12,500 sq.ft.

850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.

SHOP 850 SERIES

960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.

SHOP 960 SERIES

ENGINEERED FOR
BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.

UNSTOPPABLE
STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

RBK763S-P4-Mobile

Common Module Orbi

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.

ADD SATELLITES TO
MEET YOUR NEEDS


Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).

Shop Satellite
netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

LEARN MORE WATCH VIDEO
NETGEAR Smart Parental Controls


netgear-spc

CONNECTED KIDS ARE PROTECTED TOO

Easily manage kids’ time and accessibility online across all connected devices. Promote healthy Internet habits, foster responsibility and build trust with your kids.

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

TAP.
MANAGE.
CONTROL.



Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

App_Store_Badge google-play-badge

Technical Specifications

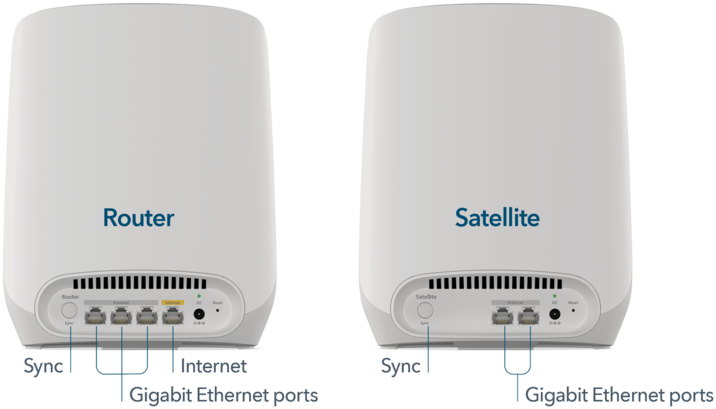

RBK762 Tech Specs Connection Diagram
  • Dimensions: 8.3 x 6.6 x 2.5in each
  • Weight: 1.6lb each
  • WiFi Coverage : 7,500 sq. ft.
  • AX5400 Router & AX5400 Satellites (600 + 2400 + 2400Mbps)†
  • Simultaneous Tri-band WiFi : Radio 1: IEEE® 802.11b/g/n/ax 2.4GHz—1024-QAM support
  • - Radio 2: IEEE® 802.11a/n/ac/ax 5GHz—1024-QAM support
  • - Radio 3: IEEE® 802.11a/n/ac/ax 5GHz—1024-QAM support
  • MU-MIMO capable for simultaneous data streaming
  • Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
  • Processor : Router & Satellites
  • - Powerful dual-core 1GHz processor
  • Memory : Router
  • - 4GB eMMC NAND flash and 1GB RAM
  • Antenna : Router & Satellites (each)
  • - Four (4) high-performance internal antennas with high-power amplifiers
  • Ports : Orbi Router
  • - One (1) 1 Gigabit Ethernet WAN port
  • - Three (3) 1 Gigabit Ethernet LAN ports
  • Ports : Orbi Satellites (each)
  • - Two (2) 1 Gigabit Ethernet LAN ports
  • Control your WiFi using voice commands when you have Amazon Alexa™ or the Google® Assistant
  • Security : NETGEAR Armor whole home Internet security with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft
  • Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
  • Guest WiFi Network is easy to setup separate & secure Internet access for guests

    • NETGEAR Smart Parental Controls™ : Easily manage your kids’ time online across their connected devices. Learn more at www.netgear.com/spc

  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • WARRANTY
  • Find troubleshooting tips to diagnose product issues in our knowledge base
  • SUPPORT
  • Extend your warranty & technical support within 90 days of product purchase [US only].
  • GET PROSUPPORT
  • One (1) Orbi Router (RBR760)
  • Two (2) Orbi Satellites (RBS760)
  • One (1) 2m Ethernet cable
  • Three (3) Power adapters
  • Quick start guide

Footnotes:

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.

† Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.4Gbps wireless speeds achieved when connecting to other 802.11ax 5.4Gbps devices.

NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor

NETGEAR Smart Parental Controls™ fees apply for a Premium Plan. Visit www.netgear.com/spc for more information.
