  • 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
  • 750W internal power supply providing 196W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement
  • TAA compliant SKU is available. Contact your sales representative
 XSM4344C​​ XSM4344C-100AJS XSM4344C-100AJS

M4350-40X4C Fully Managed Switch (XSM4344C​​) armor

40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch armor

M4350-40X4C Fully Managed Switch (XSM4344C​​)

40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
  • 750W internal power supply providing 196W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement
  • TAA compliant SKU is available. Contact your sales representative

28-Port | 24 PoE+ 648W-720W | 24x1G | 4xSFP+ | GSM4328​​

52-Port | 48 PoE+ 236W-1,440W | 48x1G | 4xSFP+ | GSM4352​​

52-Port | 48 PoE++ 194W-3,314W | 44x2.5G, 4x10G/Multi-Gig | 4xSFP28 25G | MSM4352

16-Port | 8x10G/Multi-Gig | 8xSFP+ | XSM4316​​

24-Port | 12x10G/Multi-Gig | 12xSFP+ | XSM4324​​

28-Port | 24 PoE+ 576W-720W | 24x10G/Multi-Gig | 4xSFP28 25G | XSM4328CV​​

28-Port | 24xSFP+, 4xSFP28 25G | XSM4328FV​​

40-Port | 36 10G/Multi-Gig PoE++ 280W-1,760W | 4xSFP28 25G | XSM4340CV​​

40-Port | 24 10G/Multi-Gig PoE++ 290W-1,770W | 8xSFP+, 8xSFP28 25G | XSM4340V​​

40-Port | 32xSFP+, 8xSFP28 25G | XSM4340FV​​

20-Port | 16xSFP28 25G, 4xQSFP28 100G | ​VSM4320C

44-Port | 40 10G/Multi-Gig PoE++ 196W-1,670W | 4xQSFP28 100G | XSM4344C​​
We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

M4350 Power and Throughput m4350 Power And Throughput

POWER AND
THROUGHPUT


Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

M4350 AV OVER IP SIMPLIFIED M4350 AV OVER IP SIMPLIFIED

  • Groundbreaking AV GUI

    A simplified user interface makes it easy to assign configuration profiles to each port.

  • Multicast in an Instant

    NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

  • Sleek, Quiet Design

    Less fan noise, and mounting ears included for rack mounting.

  • Automatic Configuration

    Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

M4350 FAST, EASY CONFIGURATION M4350 FAST, EASY CONFIGURATION


FAST, EASY
CONFIGURATION
FOR AV PROS



A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.


FOCUS ON THE EVENT
NOT FAN NOISE



Most models have quiet mode which greatly reduces fan noise.


DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX



With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

COMPARE M4350 SERIES SWITCHES

SWITCHES_M4350

XSM4344C
 		SWITCHES_M4350

GSM4328
 		SWITCHES_M4350

GSM4352
 		SWITCHES_M4350

MSM4352
 		SWITCHES_M4350

XSM4316
 		SWITCHES_M4350

XSM4324
 		SWITCHES_M4350

XSM4328CV
 		SWITCHES_M4350

XSM4328FV
 		SWITCHES_M4350

XSM4340CV
 		SWITCHES_M4350

XSM4340V
 		SWITCHES_M4350

XSM4340FV
 		SWITCHES_M4350

VSM4320C

# Total Ports

# Total Ports

44

# Total Ports

28

# Total Ports

52

# Total Ports

52

# Total Ports

16

# Total Ports

24

# Total Ports

28

# Total Ports

28

# Total Ports

40

# Total Ports

40

# Total Ports

40

# Total Ports

20

Port Types

Port Types

40x 1G/2.5G/5G/10G, 4x QSFP28 (100G)

Port Types

24x 1G, 4x SFP+

Port Types

48x 1G, 4x SFP+

Port Types

44x 1G/2.5G, 4x 1G/2.5G/5G/10G, 4x SFP28 (25G)

Port Types

8x 1G/2.5G/5G/10G, 8x SFP+

Port Types

12x 1G/2.5G/5G/10G, 12x SFP+

Port Types

24x 1G/2.5G/5G/10G, 4x SFP28 (25G)

Port Types

24x SFP+, 4x SFP28 (25G)

Port Types

36x 1G/2.5G/5G/10G, 4x SFP28 (25G)

Port Types

24x 1G/2.5G/5G/10G, 8xSFP+, 8x SFP28 (25G)

Port Types

32x SFP+, 8x SFP28 (25G)

Port Types

16x SFP28 (25G), 4x QSFP28 (100G)

Total PoE Budget

Total PoE Budget

196W -> 1,676W

Total PoE Budget

648W –> 720W

Total PoE Budget

236W -> 1,440W

Total PoE Budget

194W -> 3,314W

Total PoE Budget

-

Total PoE Budget

-

Total PoE Budget

576W -> 720W

Total PoE Budget

-

Total PoE Budget

280W -> 1,760W

Total PoE Budget

290W -> 1,770W

Total PoE Budget

-

Total PoE Budget

-

# PoE+ Ports

# PoE+ Ports

-

# PoE+ Ports

24

# PoE+ Ports

48

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

24

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

-

# PoE++ Ports

# PoE++ Ports

40

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

48

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

36

# PoE++ Ports

24

# PoE++ Ports

-

# PoE++ Ports

-

Rack Mount

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

FORM FACTOR W X H x D (MM)

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

220 x 400 x 43.2

FORM FACTOR W X H x D (MM)

220 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2

FORM FACTOR W X H x D (MM)

440 x 400 x 43.2
XSM4344C MAXIMIZE PERFORMANCE XSM4344C MAXIMIZE PERFORMANCE

MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS



Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

LEARN MORE


PRO AV
RESOURCES



All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

RESOURCES

PRO AV FAMILY COMPARISON

M4250 SWITCH SERIES

M4350 SWITCH SERIES

M4500 SWITCH SERIES

USE CASE

USE CASE

Access/Edge

USE CASE

Core/Access/Edge

USE CASE

Core/Access/Edge

SWITCH STACKING

SWITCH STACKING

No

SWITCH STACKING

Yes

SWITCH STACKING

No (MLAG)

PoE CAPABLE

PoE CAPABLE

Yes

PoE CAPABLE

Yes

PoE CAPABLE

No

PORT SPEEDS

PORT SPEEDS

1, 2.5, 10Gbps

PORT SPEEDS

1, 2.5, 10, 25, 100Gbps

PORT SPEEDS

1, 10, 25, 100Gbps

AVB SUPPORT

AVB SUPPORT

Yes*

AVB SUPPORT

Yes

AVB SUPPORT

No

AV WEB UI / AV TEMPLATES

AV WEB UI / AV TEMPLATES

Yes

AV WEB UI / AV TEMPLATES

Yes

AV WEB UI / AV TEMPLATES

No

AV DESIGN
(FRONT LED'S & REAR CABLING)

AV DESIGN
(FRONT LED'S & REAR CABLING)

Yes

AV DESIGN
(FRONT LED'S & REAR CABLING)

No

AV DESIGN
(FRONT LED'S & REAR CABLING)

No

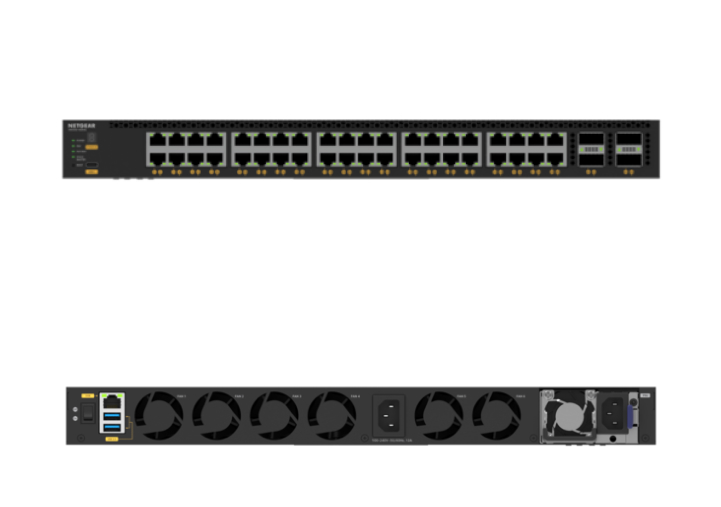

M4350-XSM4344C Technical Specifications

XSM4344C_Tech-Specs-Front XSM4344C_Tech-Specs-Back

Product Specifications

  • M4350-40X4C (XSM4344C)
    1
  • Power cord(s)
    1
  • Console USB Type-C cable
    1
  • Rack-mounting standard bracket set
    1
  • Set of longer brackets for recessed mounting
    1
  • Rubber footpads for tabletop installation
    4
  • Installation guide
    1
  • Width
    440mm
  • Depth
    400mm
  • Height
    43.2mm
  • Weight
    7.76kg (17.11lb)
  • Primary Port Speed
    10 Gigabit / Multi-Gig
  • Number of Ports
    44 (40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28)
  • PoE Ports / Budget
    40 PoE++ (90W/port), 196W Base, up to 1,676W Budget
  • IGMP Support
    Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support
    Yes, up to 12kb
  • AVB Support
    Yes, included
  • Acoustics
    Quiet Mode 34.1dB@25ºC
  • Power Consumption

    With PoE: 413W/1408.33Btu/hr

    Without PoE: 200.4W/629.26Btu/hr

    Standby without any port connection: 98.8W/310.23Btu/hr

  • PSU Compatible Models

    APS600Wv3

    APS1200Wv2

    APS2000Wv2

  • NETGEAR Engage Controller

    Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
    Learn More

  • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
