NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide. GS105Ev2 GS105E-200AUS GS105E-200AUS

Gigabit Plus Switch Series (GS105Ev2) armor

5-Port Gigabit Plus Switch armor

Gigabit Plus Switch Series (GS105Ev2)

5-Port Gigabit Plus Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Features

Traffic Management
  • Auto Negotiation of speed and duplex modes
  • 802.3x Flow Control
  • DHCP Client
  • Dynamic MAC address management
  • IEEE 802.1Q-based or port-based VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 802.1p-based QoS
  • QoS based on ToS (Type-of-Service)
  • DSCP Support (GS105E and GS105PE only)
  • Rate Limiting
  • Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)
Reliability, Performance and Troubleshooting
  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast Storm control
  • Cable diagnostics
  • Loop Detection
  • DoS Prevention
  • Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
  • Power savings with short cable detection and auto power-down when ports are in idle mode
Switch Management
  • Switch discovery on MAC or PC using the NETGEAR Switch Discovery Tool

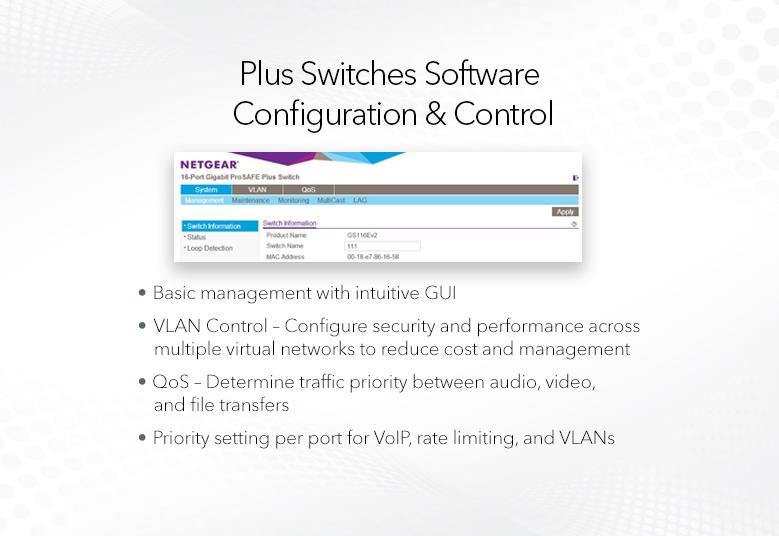

  • Advanced configuration and management using web browser-based GUI
  • Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
  • Firmware upgrade thru ProSAFE Plus Utility (TFTP) or web browser-based GUI
  • Configuration upload (to Server)
  • System password protection
  • Multi-language support (varies by model, see datasheet for specifics)
Multicast Efficiency
  • IGMP snooping, v1, v2 and v3
  • Blocking of unknown multicast traffic
  • Act as static multicast router port

Technical Specifications

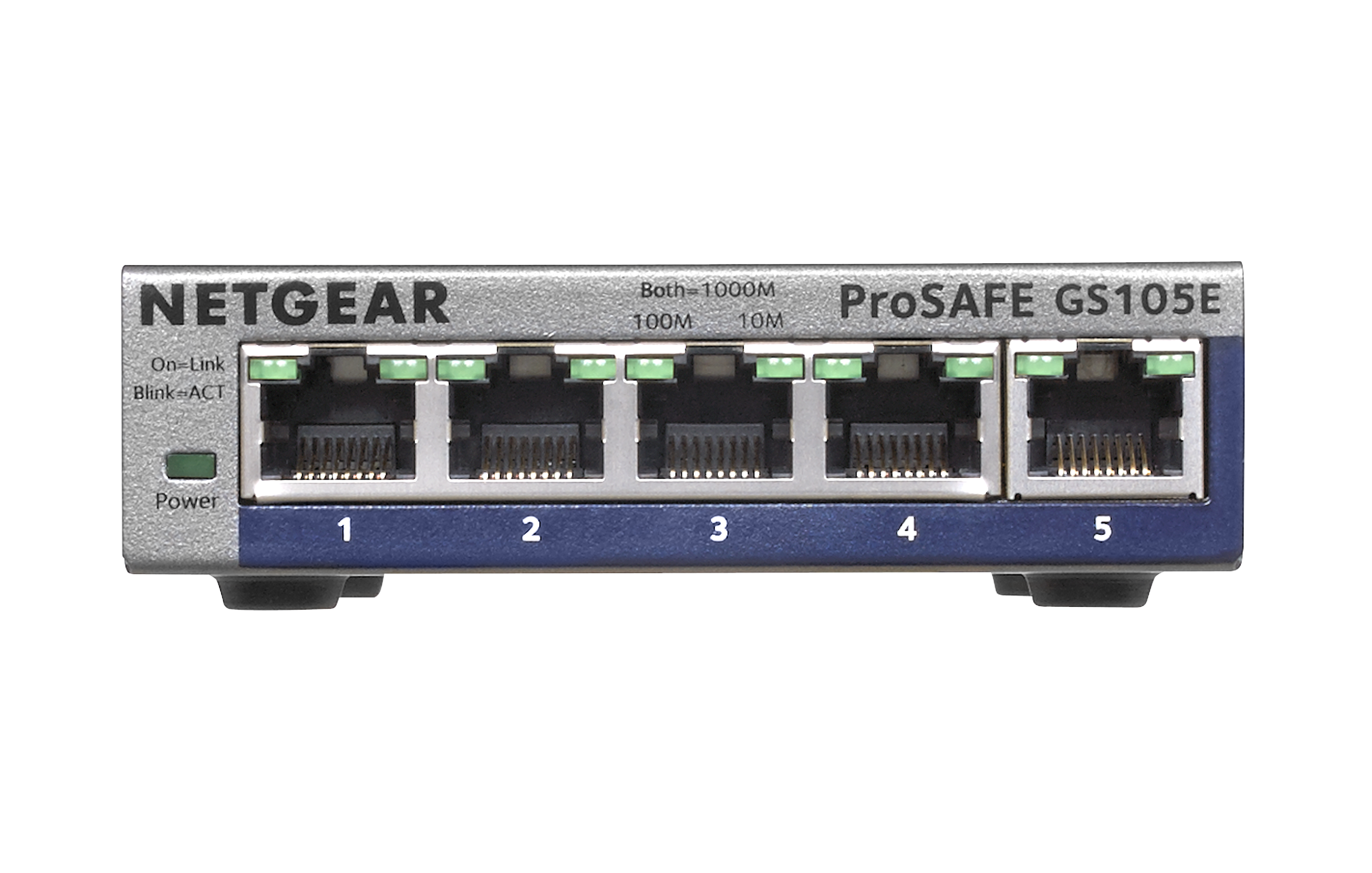

GS105E_06Sept13_Front

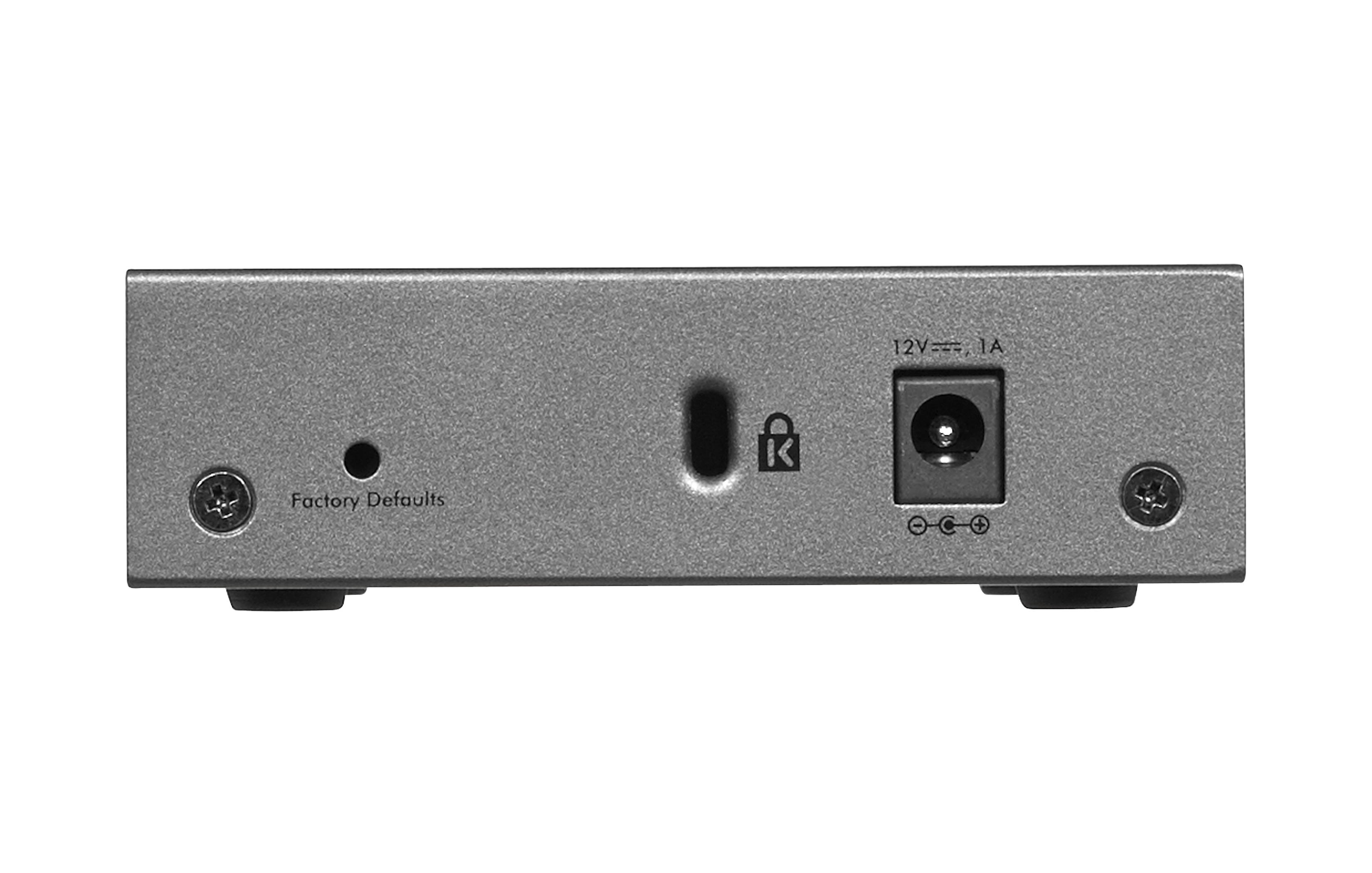

GS105E_06Sept13_Back
  • Weight (kg) : 0.252kg
  • Dimensions (WxDxH) mm : 94x100x27
  • Gigabit Ports : 5
  • 10 Gbps Port : n/a
  • Number of PoE ports : n/a
  • Total PoE Power budget (Watts) : n/a
  • Max MAC entries : 8K
  • Buffer size : 2MB
  • VLAN (Number Supported) : 64
  • Number of LAGs & number of members : n/a
  • Supported Mulitcast groups : 128
  • Max number of source ports allowed (many to 1) : 4
  • Power supply : External power adapter
  • Switch Input: 12VDC/1A
  • Max consumption (Watts) : 2.6W
  • FAN : 0
  • Acoustic Noise Level @25C (dBA) : 0
  • Operating Temperature : 0° to 50° C
  • MTBF : 2.531.294
  • Electromagnetic Compliance (A or B) : B

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
