Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription.



Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

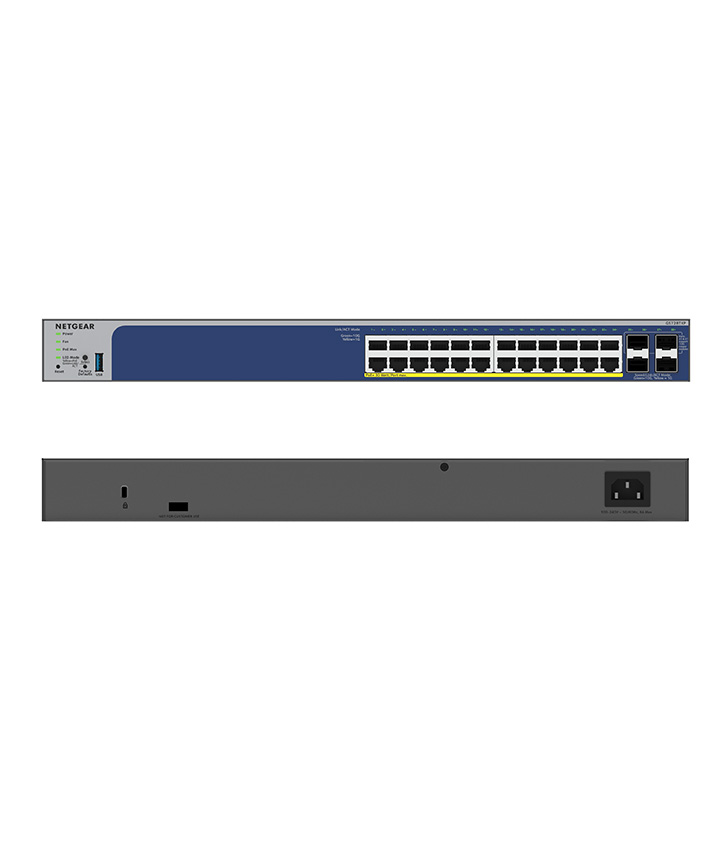

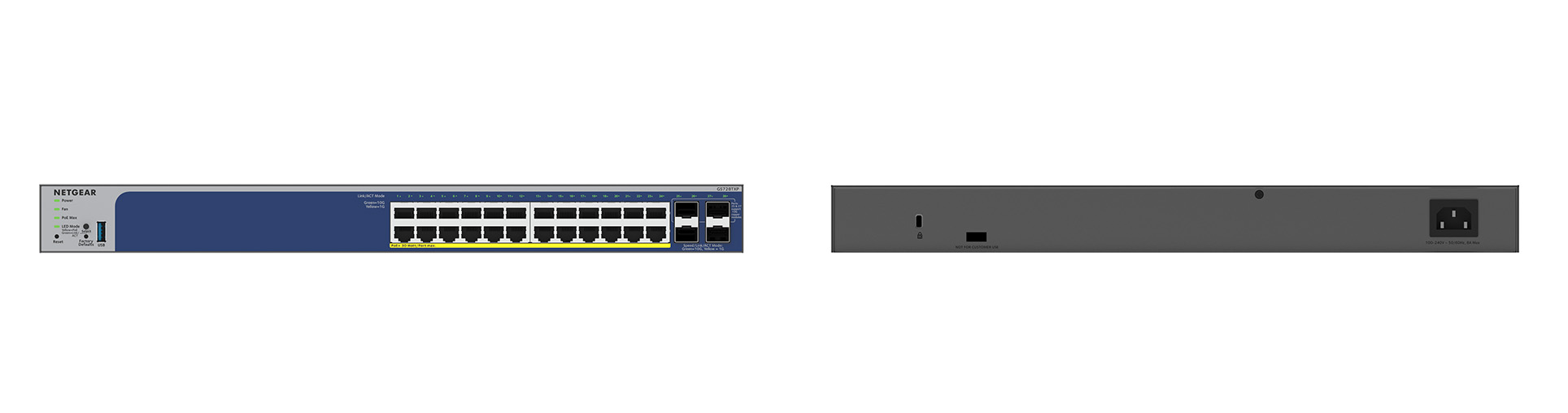

Desktop_GS728TXPv3 Mobile_GS728TXPv3
  • NETGEAR GS728TXP with Insight Cloud Management
  • DC power cord (varies by region)
  • Rackmount kit
  • Installation guide
  • Width
    440mm
  • Depth
    257mm
  • Height
    43.2mm
  • Weight
    8.3lb (3.8kg)
  • Model Description
    24-Port Gigabit Ethernet Smart Switch with 4 10G SFP+ Ports
  • 10/100Mbps ports
    24
  • 10G SFP+ ports
    4
  • Number of PoE+ ports (802.3at)
    24
  • Total PoE Power budget (Watts)
    190W
  • Max MAC entries
    16K
  • Buffer size
    1.5MB
  • VLAN (Number Supported)
    256
  • VLAN routing
    Yes
  • Dynamic VLAN assignment
    Yes
  • MLD Snooping
    Yes
  • Static route
    Yes
  • Host ARP table
    512
  • EEE
    Yes
  • DoS Prevention
    Yes
  • Internal/External Power Supply/Adapter
    Internal
  • Max consumption without PoE (Watts)
    29W
  • FAN
    2
  • Acoustic Noise Level @25C (dBA)
    26.8dBA
  • Operating Temperature
    0° to 50° C
  • MTBF
    1,252,990 hours  (143 years)
  • NETGEAR Insight Remote Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
