  • High-powered 230W PoE budget
  • 8 Multi-Gigabit (2.5G) ports
  • 4 Ultra60 PoE++ and 4 PoE+ ports with uninterrupted PoE and PoE Self-Healing
  • Energy Efficient Ethernet for maximum power savings
  • Silent (fanless) desktop operation
  • Configurable L2/L2+ network features
  • Remotely manage your network through NETGEAR Insight
MS108TUP MS108TUP-10000S MS108TUP-10000S

Multi-Gigabit Ethernet Smart Switches (MS108TUP) armor

8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch armor

Multi-Gigabit Ethernet Smart Switches (MS108TUP)

8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • High-powered 230W PoE budget
  • 8 Multi-Gigabit (2.5G) ports
  • 4 Ultra60 PoE++ and 4 PoE+ ports with uninterrupted PoE and PoE Self-Healing
  • Energy Efficient Ethernet for maximum power savings
  • Silent (fanless) desktop operation
  • Configurable L2/L2+ network features
  • Remotely manage your network through NETGEAR Insight

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

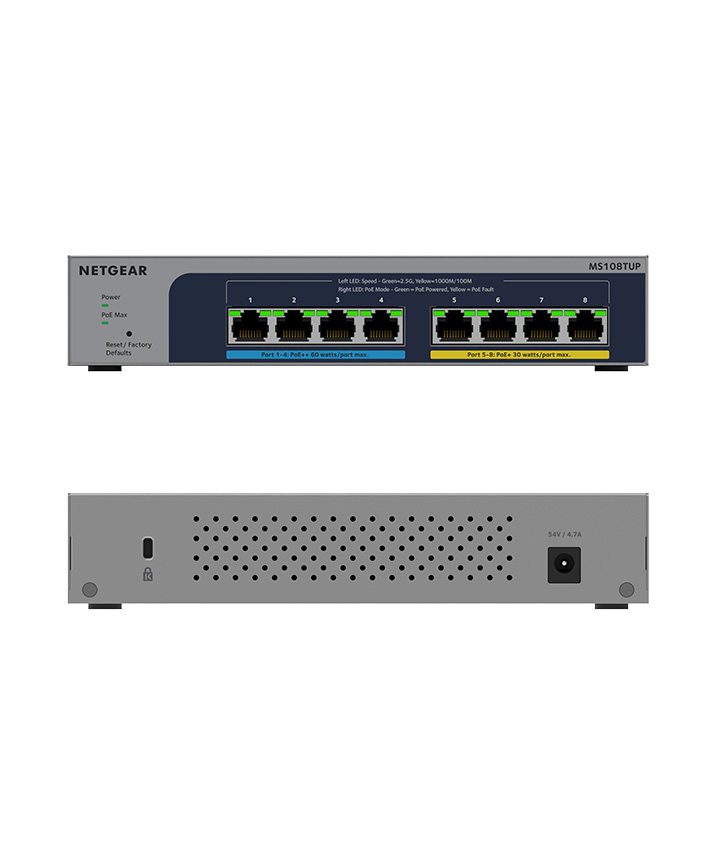

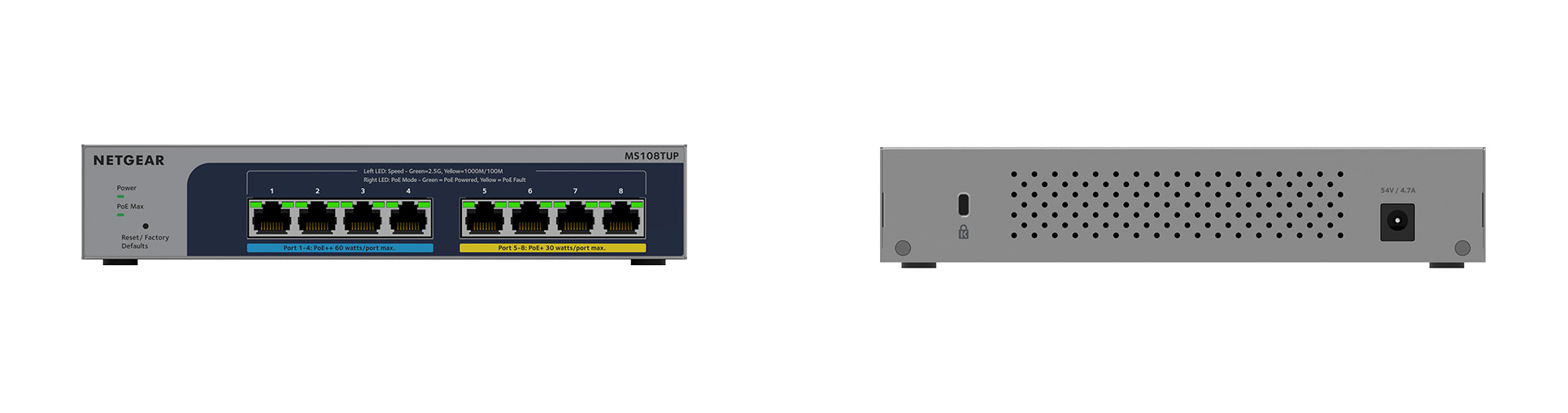

Desktop_MS108TUP Mobile_MS108TUP

Product Specifications

  • NETGEAR MS108TUP with Insight Cloud Management
  • Power adapter with detachable power cord (cord varies by region)
  • Wall-mount kit
  • Installation guide
  • Width
    210mm (8.3in)
  • Depth
    140mm (5.5in)
  • Height
    40mm (1.6in)
  • Weight
    2lb (0.9kg)
  • Multi-gigabit copper ports
    8 (1G/2.5G)
  • Number of PoE+ (802.3at) ports
    4
  • Number of PoE++ (802.3bt) ports
    4
  • Total PoE Power budget
    230 Watts
  • Uninterrupted PoE
    Yes
  • PoE Self-Healing/Auto-Recovery
    Yes
  • Max MAC entries
    16K
  • Buffer size
    1.5Mbit
  • VLAN (Number Supported)
    64
  • VLAN routing
    Yes
  • Dynamic VLAN assignment
    Yes
  • MLD Snooping
    Yes
  • Static route
    Yes (32)
  • Host ARP table
    1024 ARP
  • EEE
    Yes
  • DoS Prevention
    Yes
  • Internal/External PSU
    External
  • Max power (worst case, all ports used, line-rate traffic)
    270.6 Watts
  • Fans
    0 (fanless)
  • Acoustic Noise Level @25°C
    0 dBA
  • Operating Temperature
    0° to 40° C (32° to 104°F)
  • MTBF
    373,644 hrs (42.7 yrs)
  • NETGEAR Insight Remote Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • Backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.

    *This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
