  • 24 x Gigabit Ethernet ports
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Desktop, wall or rack mount
GS524 GS524-300NAS GS524-300NAS

Gigabit Unmanaged Switch Series (GS524) armor

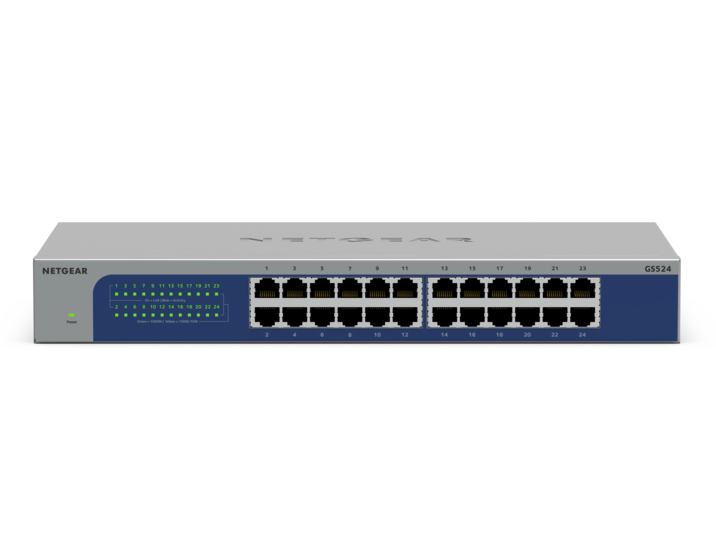

24-Port Gigabit Ethernet Unmanaged Switch armor

Gigabit Unmanaged Switch Series (GS524)

24-Port Gigabit Ethernet Unmanaged Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • 24 x Gigabit Ethernet ports
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Desktop, wall or rack mount

Looking for the previous version JGS524? Please see the Helpful Links in the Tech Specs for more information.

Features

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance

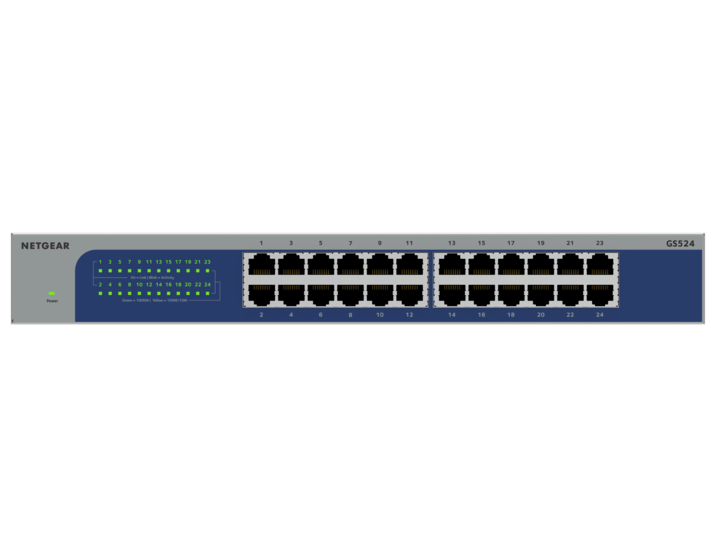

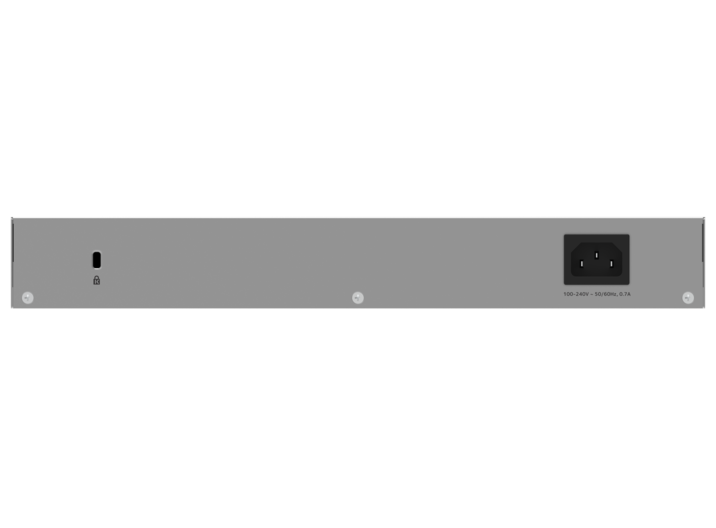

Technical Specifications

GS524v3_tech_specs
GS524v3_tech_specs
  • Dimensions (WxDxH) : 328 x 169 x 43 mm (12.9 x 6.7 x 1.7in)
  • Weight : 1.47kg (3.24lb)
  • Speed : 10/100/1000Mbps Gigibit Ethernet
  • Number of Ports : 24
  • PoE ports : n/a
  • Total PoE Budget : n/a
  • Loop Detection : n/a
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9KB
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 8K
  • Packet buffer size : 512.5KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 12W
  • Operating Temperature : 0 to 50° C
  • MTBF (hours) : 1,016,877 hrs
  • FCC Class : A

    • Warranty: Backed by a NETGEAR Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
    *This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/services/why-register/ within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing 1, 3, or 5 year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
