12-Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards M4300-96X

M4300-96X (M4300-96X) armor

Modular, 12-slot empty Managed Switch armor

M4300-96X (M4300-96X)

Modular, 12-slot empty Managed Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

12-Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

 Compliant with Major L3 Protocols
Fiber Ports
48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper
Stackable
Interface with other M4300 Series switches and manage as one unit

Non-Blocking Fabric

Full width with dual, redundant modular PSUs for business continuity
1U rack mountable
Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay

Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
Product Datasheet

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

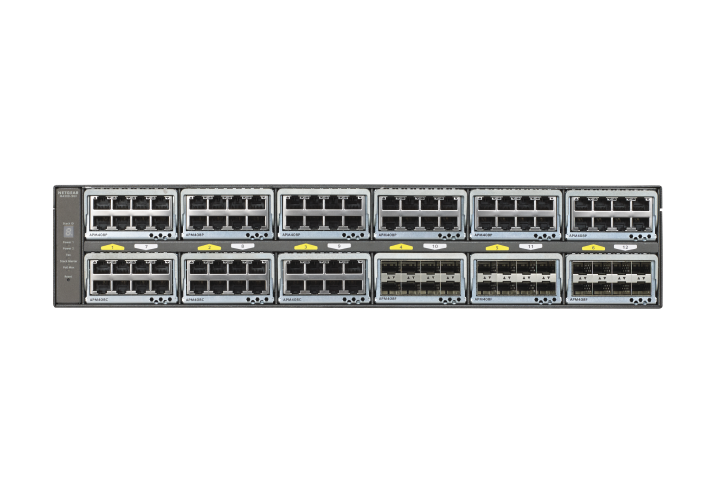

M4300_96X_tech_specs_image_1

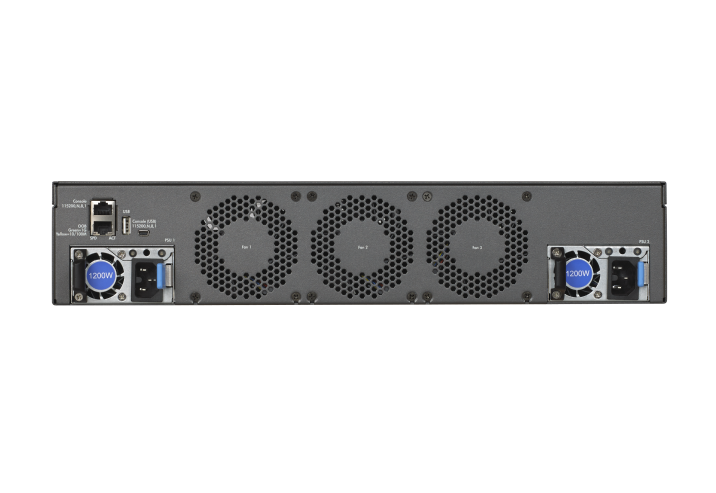

M4300_96X_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Hardware Specifications : Model Number: XSM4396K0 (Empty switch without PSU, 12 slots for APM port cards, 2 slots for PSUs); XSM4396K1 (Starter Kit with the switch, 48 x SFP+ (6 x APM408F) and 1 PSU APS600W)
  • Up to 96 ports 100M, 1G, 2.5G, 5G, 10G
  • Up to 96 ports 1G, 10G
  • Up to 24 ports 40G
  • Expansion Cards: APM408C (8 ports RJ45); APM408P (8 ports PoE+ RJ45); APM408F (8 ports SFP+); APM402XL (2 ports QSFP+)
  • 1.920 Tbps Switching Fabric
  • PSU Modular 2 bays for APS600W or APS1200W
  • Fixed Fans Front-to-back 35.8dB (no PoE), 66.8dB (max PoE)
  • Management Options : Ethernet: Out-of-band 1G port (Back)
  • Console: RJ45 RS232 (Back)
  • Console: Mini-USB (Back)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption
M4300_96X_tech_specs_image_1
M4300_96X_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Table Sizes : 128K MAC 8k ARP / NDP
  • Up to 960 Gbps
  • Throughput up to 714 Mpps
  • Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512

    • Latency:

    <0.9µs 10G SFP+

    <1.25µs 10G RJ45

  • IP Multicast : 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
  • PoE+ Options (30W per port) with hot swap & redundant PSUs options
