Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more. MS108EUP MS108EUP-100EUS MS108EUP-100EUS

Multi-Gigabit Ethernet Plus Switch (MS108EUP) armor

8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus Switch armor

Multi-Gigabit Ethernet Plus Switch (MS108EUP)

8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

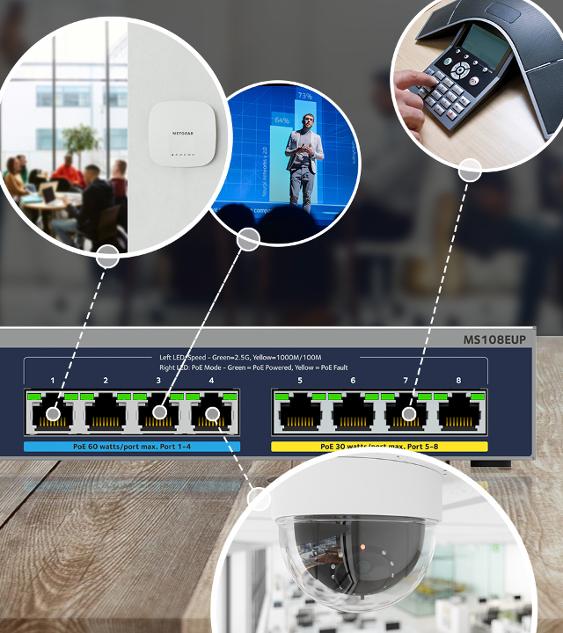

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

Features

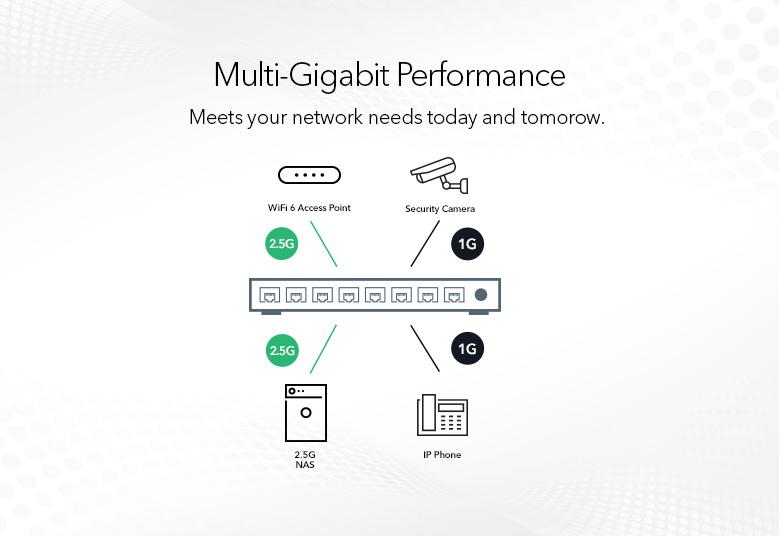

Multi-Gigabit Ethernet

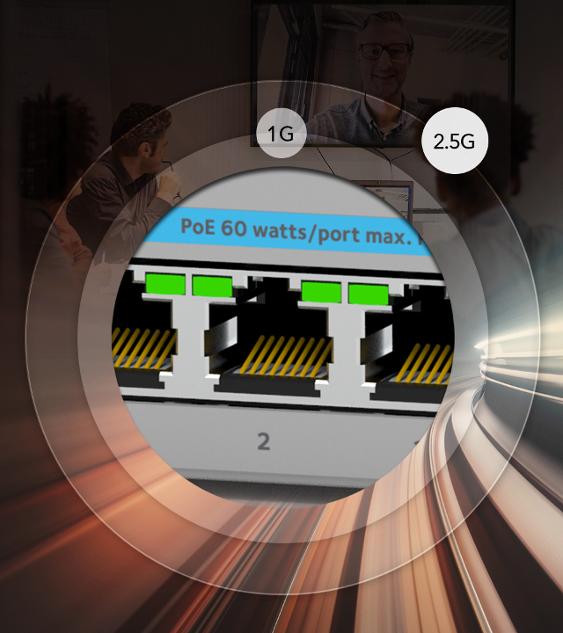

8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

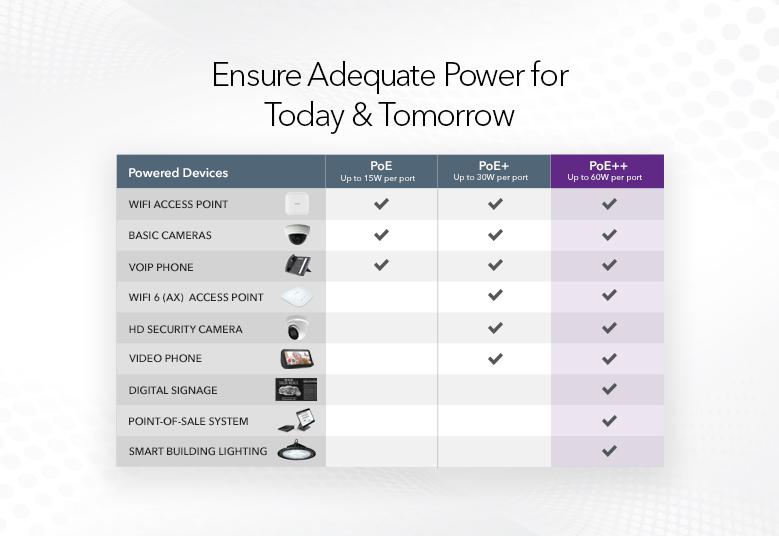

PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

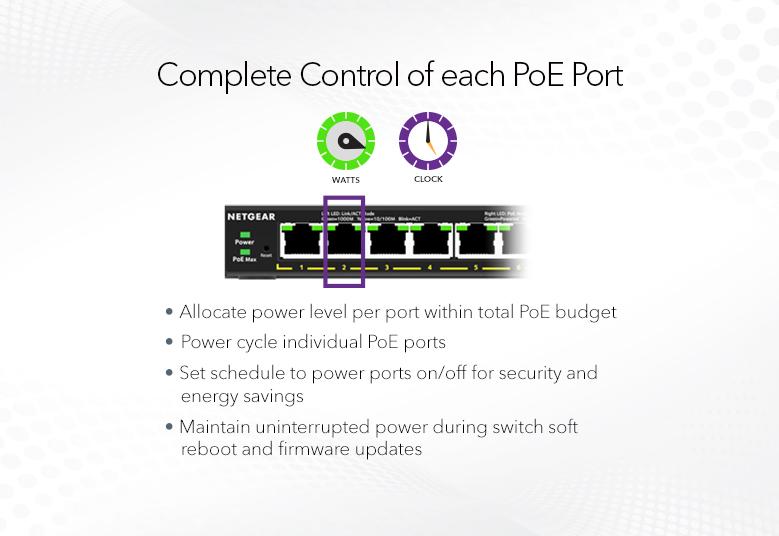

Advanced PoE Controls

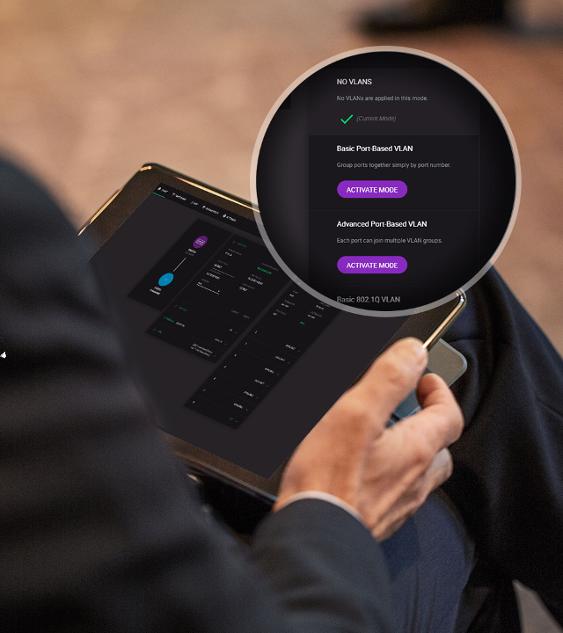

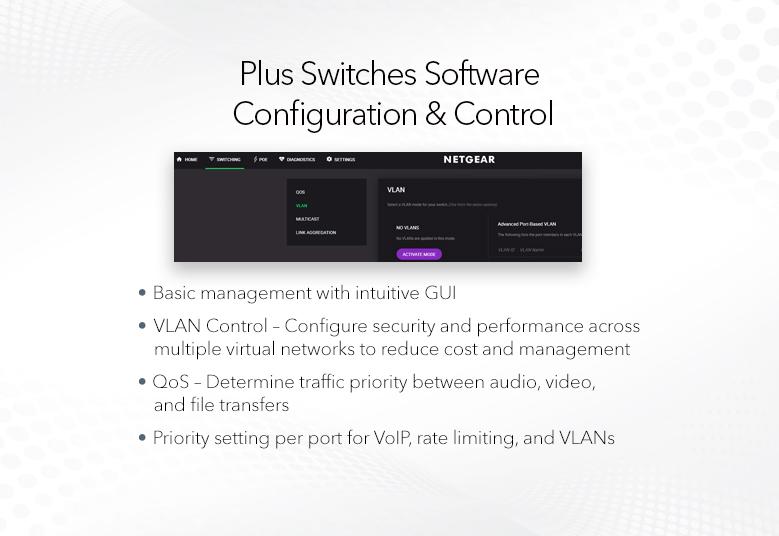

Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

Technical Specifications

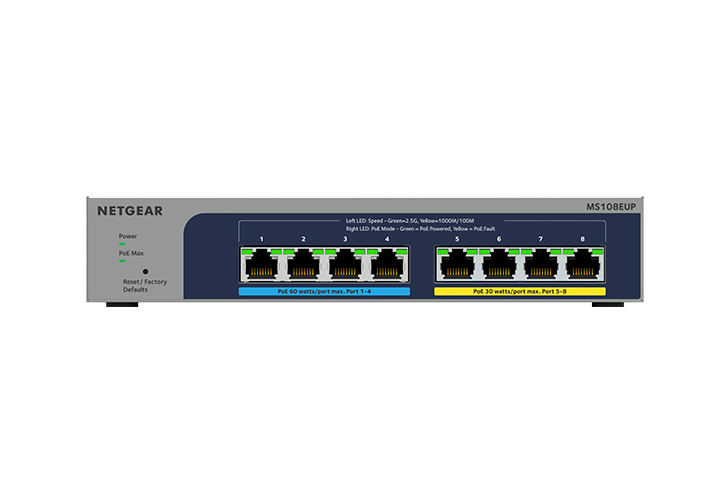

Everest_MS108EUP_PDP_Tech-Specs-Image-1

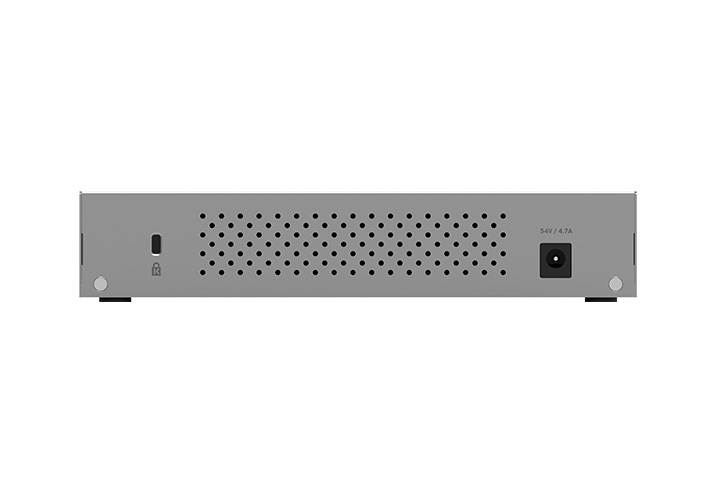

Everest_MS108EUP_PDP_Tech-Specs-Image-2
  • Dimensions (W x D x H) : 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
  • Weight : 0.9 kg (1.984 lb)
  • Multi-gigabit copper ports : 8 (1G/2.5G)
  • Number of PoE+ (802.3at) ports : 4
  • Number of PoE++ (802.3bt) ports : 4
  • Total PoE Power budget : 230 Watts
  • Uninterrupted PoE : Yes
  • Max MAC entries : 16K
  • Buffer size : 1.5MB
  • VLAN (Number Supported) : 64
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External PSU : External
  • Max power (worst case, all ports used, line-rate traffic) : 230W
  • Fans : 0
  • Acoustic Noise Level @25C : Fanless
  • Operating Temperature : 0° to 40° C (32 to 104F)
  • MTBF : 373,643.7 hrs (42.6 yrs)

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement.
    • Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
