  • Effortless Setup with Simple Configuration
  • Five (5) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
  • Compact, robust metal desktop case with silent fanless operation
  • Versatile placement options: desktop or wall mounting
  • Convenient monitoring via per port LEDs, displaying activity and speed
  • Easy management with intuitive web-based Interface
  • NETGEAR’s 5-Year hardware warranty for added peace of mind
  • Energy-efficient design in line with IEEE 802.3az standards
MS305E MS305E-100EUS MS305E-100EUS

Multi-Gigabit Ethernet Plus Switch (MS305E) armor

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch armor

Multi-Gigabit Ethernet Plus Switch (MS305E)

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • Effortless Setup with Simple Configuration
  • Five (5) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
  • Compact, robust metal desktop case with silent fanless operation
  • Versatile placement options: desktop or wall mounting
  • Convenient monitoring via per port LEDs, displaying activity and speed
  • Easy management with intuitive web-based Interface
  • NETGEAR’s 5-Year hardware warranty for added peace of mind
  • Energy-efficient design in line with IEEE 802.3az standards

lp-remote-cloud-management lp-remote-cloud-management

Simply Better Together

Combine your WiFi Access Points with a Multi-Gig Switch to optimize your network for power and speed.

Features

MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Technical Specifications

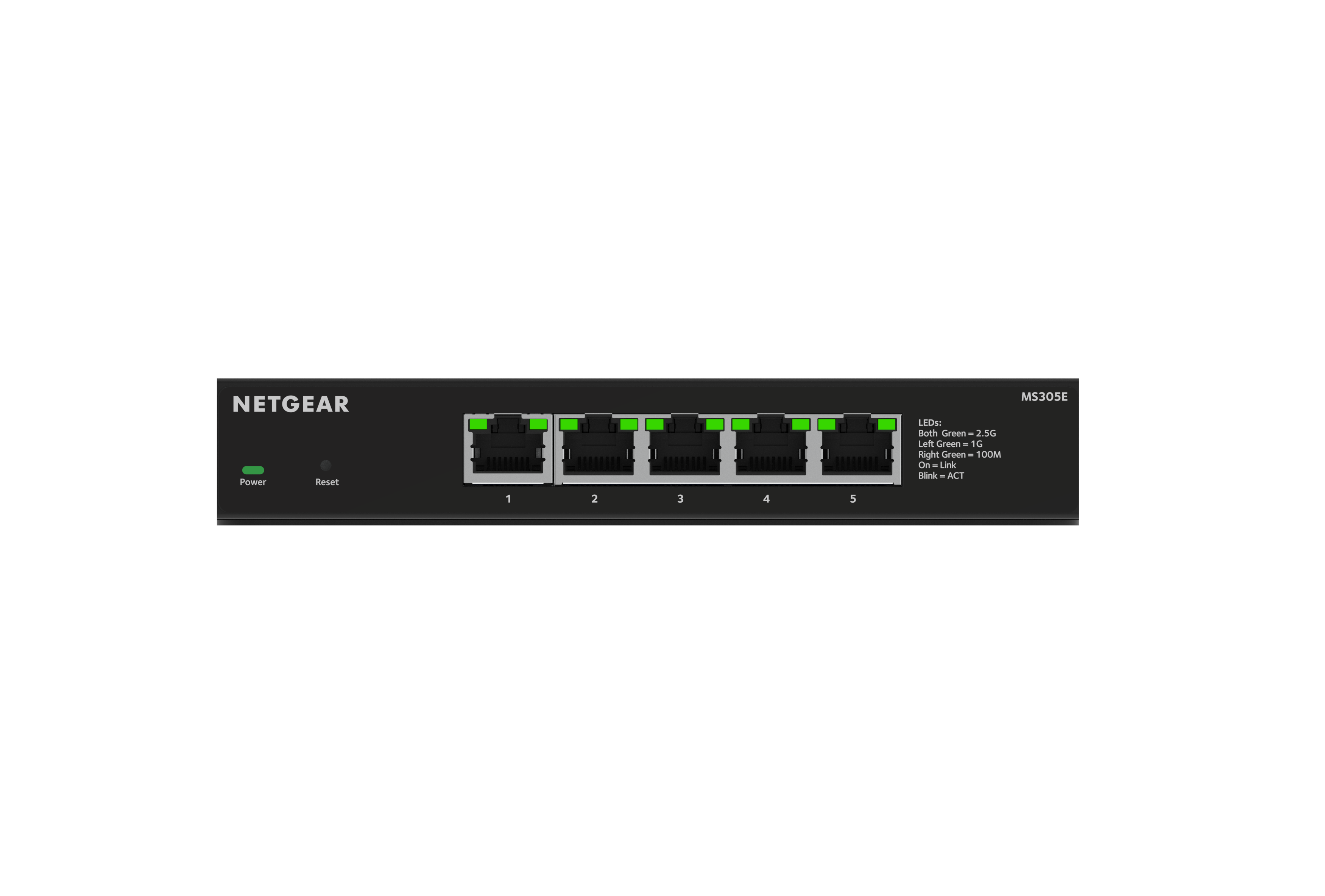

MS305E_TechSPecs_Frt

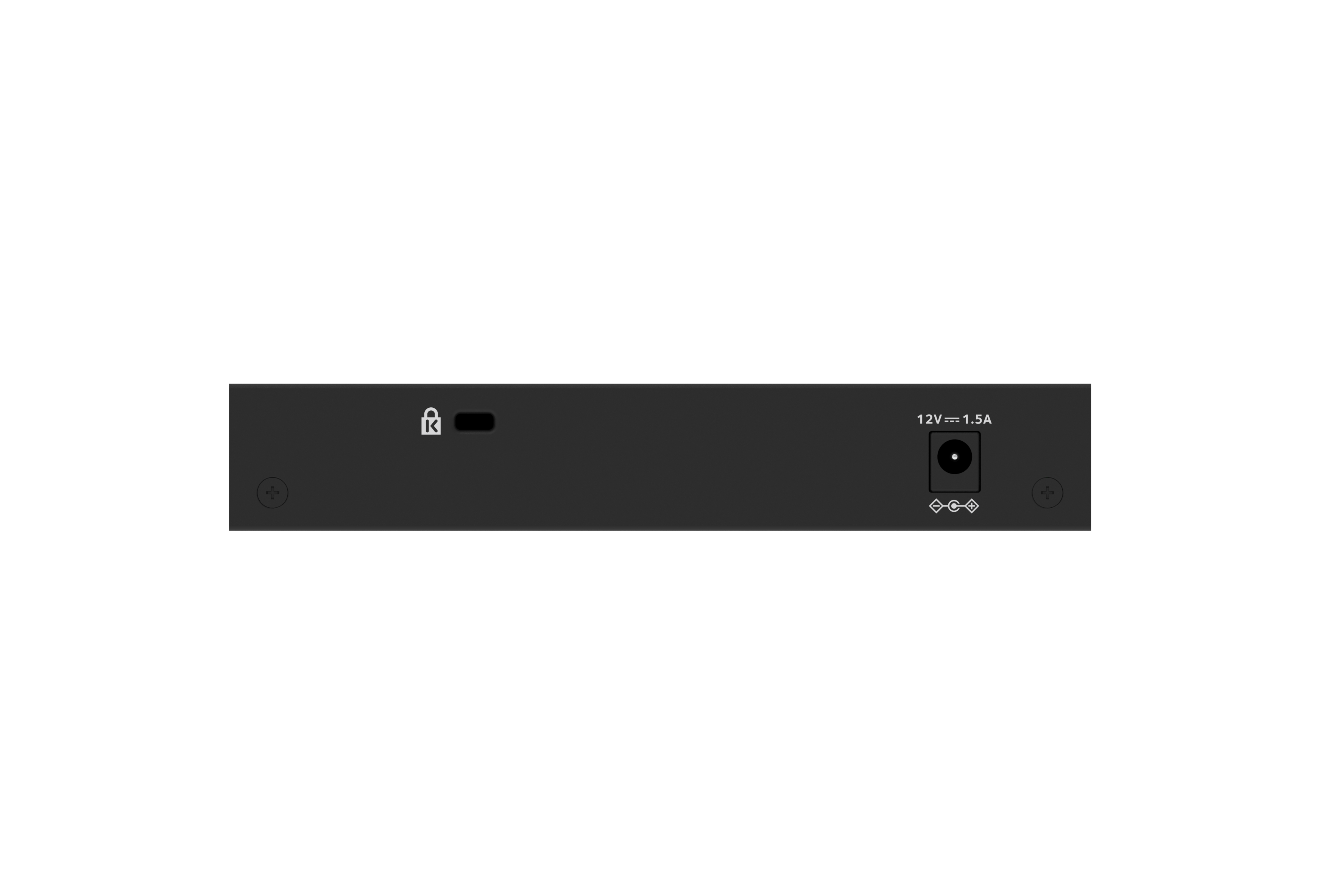

MS305E_TechSpecs_Rear
  • Dimensions (W x D x H) : 158 x 101 x 27 mm (6.2 x 4 x 1.1 in)
  • Weight : 0.45kg (1lb)
  • Speed : 100Mbps/1G/2.5G
  • Number of Ports : 5
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 12,288 bytes
  • MAC Table Size : 4K
  • Packet buffer size : 1 MB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 5.6W
  • Operating Temperature : 0-40°C (32°F - 104°F)
  • MTBF (hours) : 4,273,003 hrs
  • FCC Class : Class B

    • Warranty: This product is backed by a 5-year Hardware Warranty.
    • Click here for coverage, availability and terms and conditions.
    • Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
    • MS305E Support
