Upgrade to blazing-fast 5.4Gbps† of WiFi 6 on up to 75 devices simultaneously across more space: 5 rooms or up to 350 m2 The RBK762S includes a dedicated connection for instant router-satellite communication so WiFi speed stays fast as more devices connected, and 5 Gigabit ports to give your most demanding tech products their own wired connection. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR Armor all-in-one internet security. RBK762S RBK762S-100EUS RBK762S-100EUS

AX5400 WiFi Mesh System (RBK762S) armor

NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 1 Satellite armor

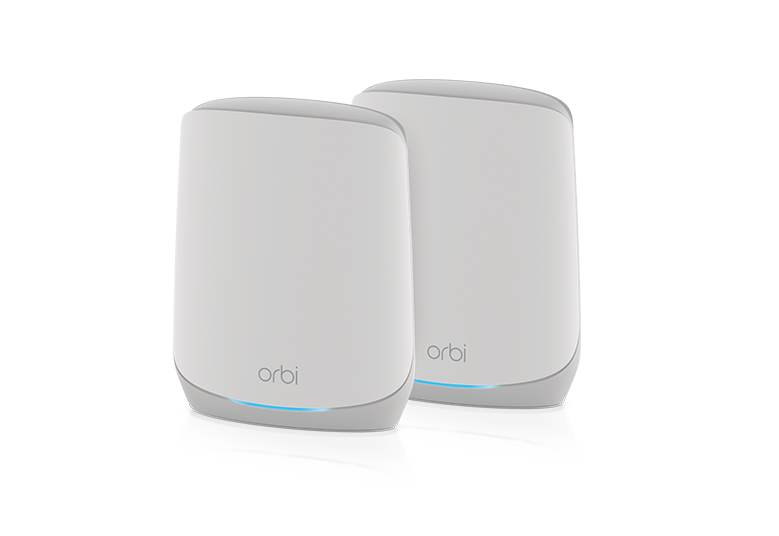

AX5400 WiFi Mesh System (RBK762S)

NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 1 Satellite armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Upgrade to blazing-fast 5.4Gbps† of WiFi 6 on up to 75 devices simultaneously across more space: 5 rooms or up to 350 m2 The RBK762S includes a dedicated connection for instant router-satellite communication so WiFi speed stays fast as more devices connected, and 5 Gigabit ports to give your most demanding tech products their own wired connection. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR Armor all-in-one internet security.

NEXT-GEN ORBI NOW AVAILABLE

The Orbi 770 Series - Flawless, whole-home WiFi 7.

RBK863SB
SHOP NOW

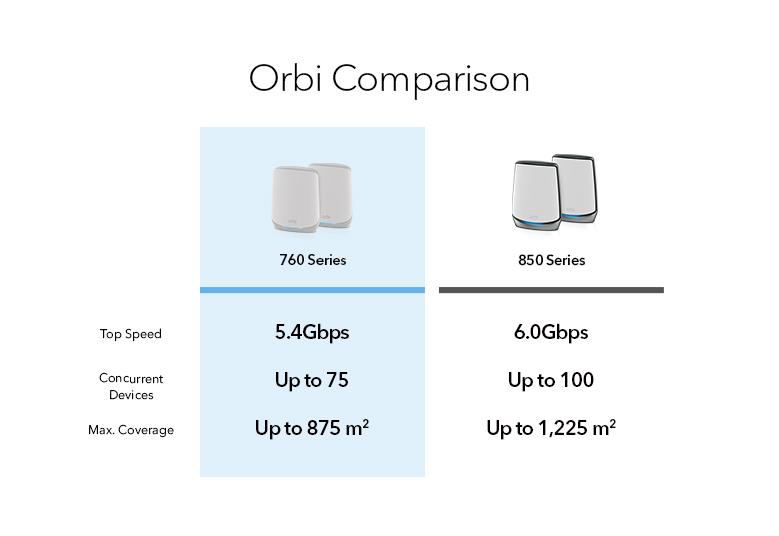

ORBI FAMILY
COMPARISON

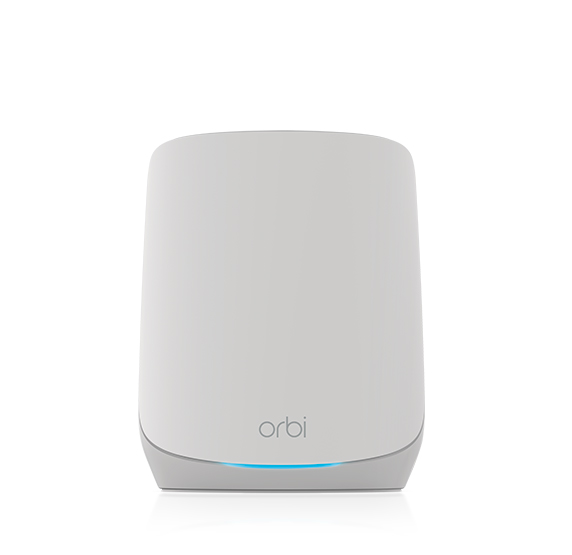

760 Series
WiFi: WiFi 6
Speed: up to 5.4Gbps
Devices: up to 75
Coverage: up to 875 m 2

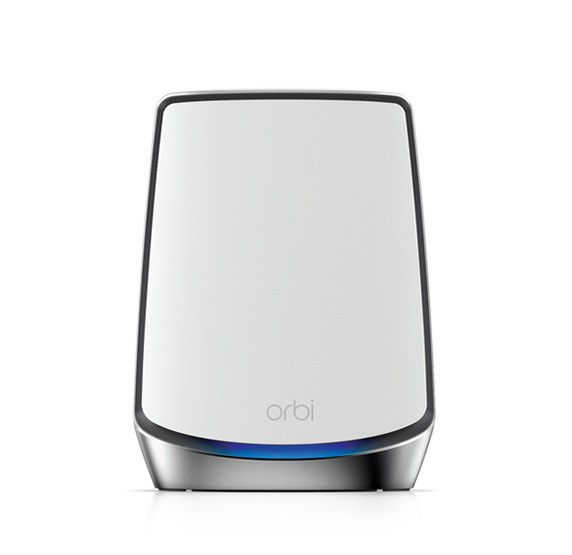

850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 1.225 m 2

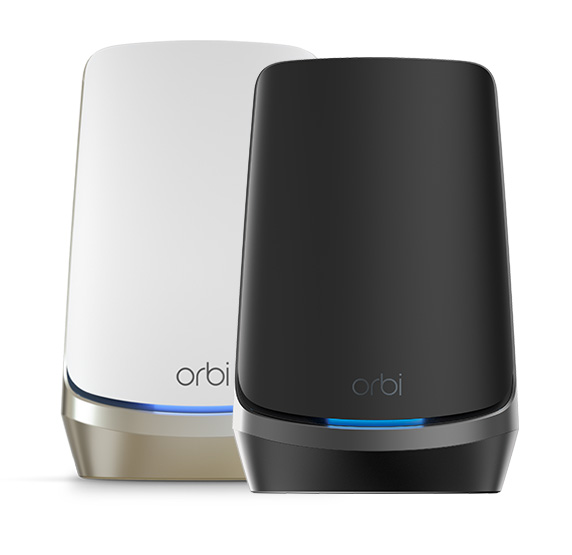

960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 1.400 m 2

orbi_rbk763s_1_mobile_eur orbi_rbk763s_1_desktop_eur

ENGINEERED FOR
BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.

UNSTOPPABLE
STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.


THE BEST COVERAGE.

PERIOD.

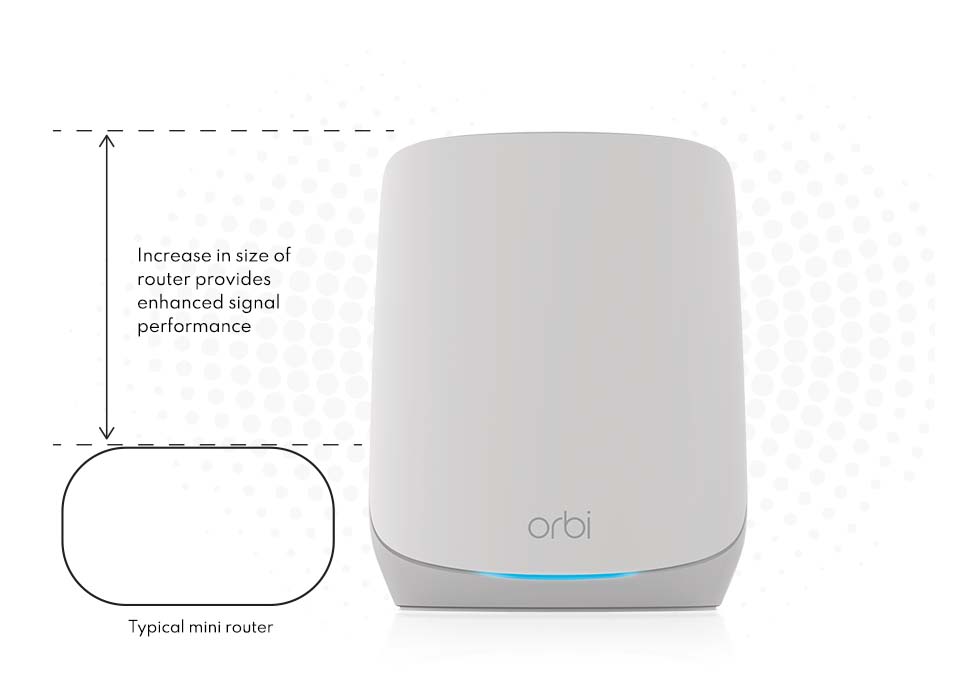

Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

RBK763S-P4-Mobile

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
orbi_rbk762_4_mobile_eur orbi_rbk762_4_desktop_eur

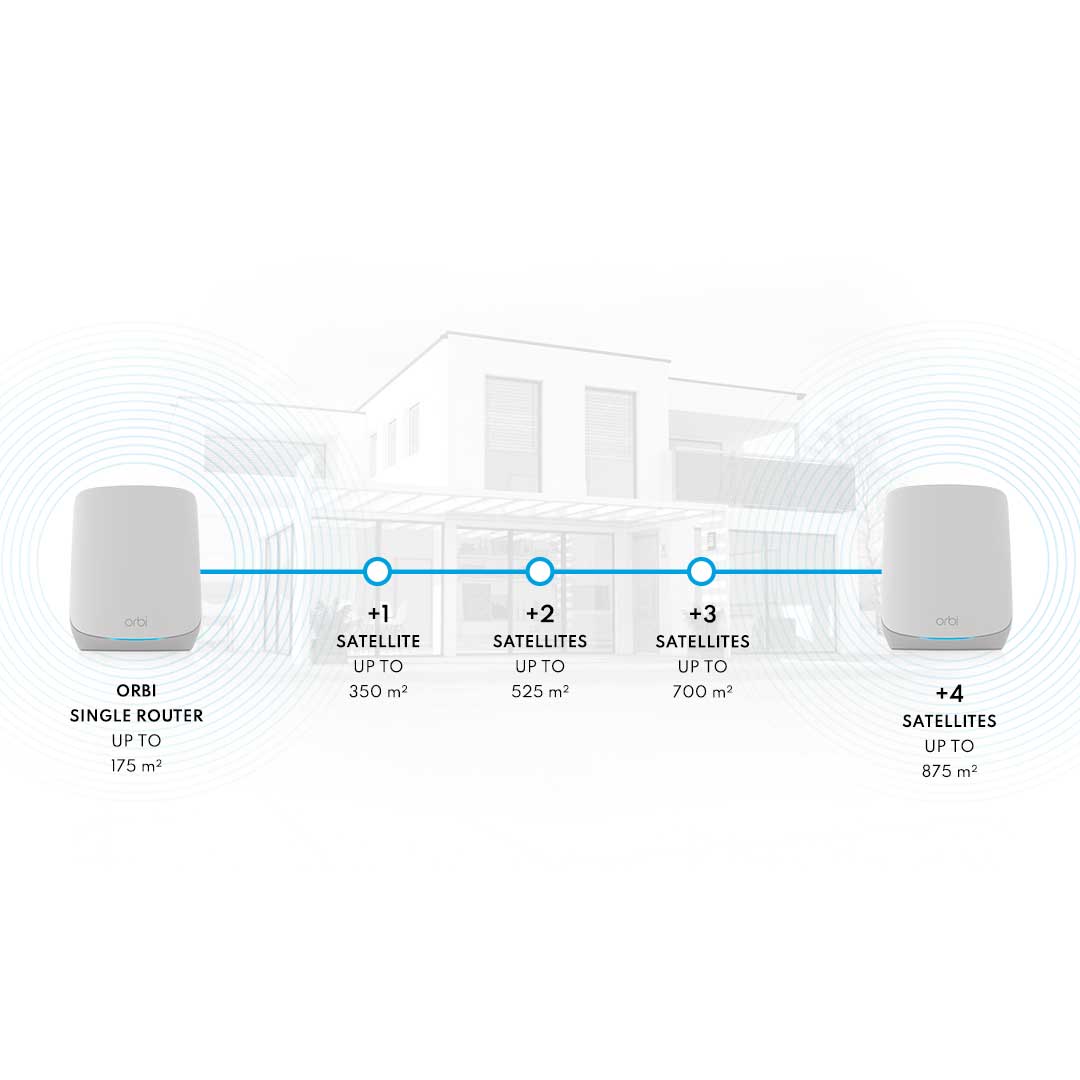

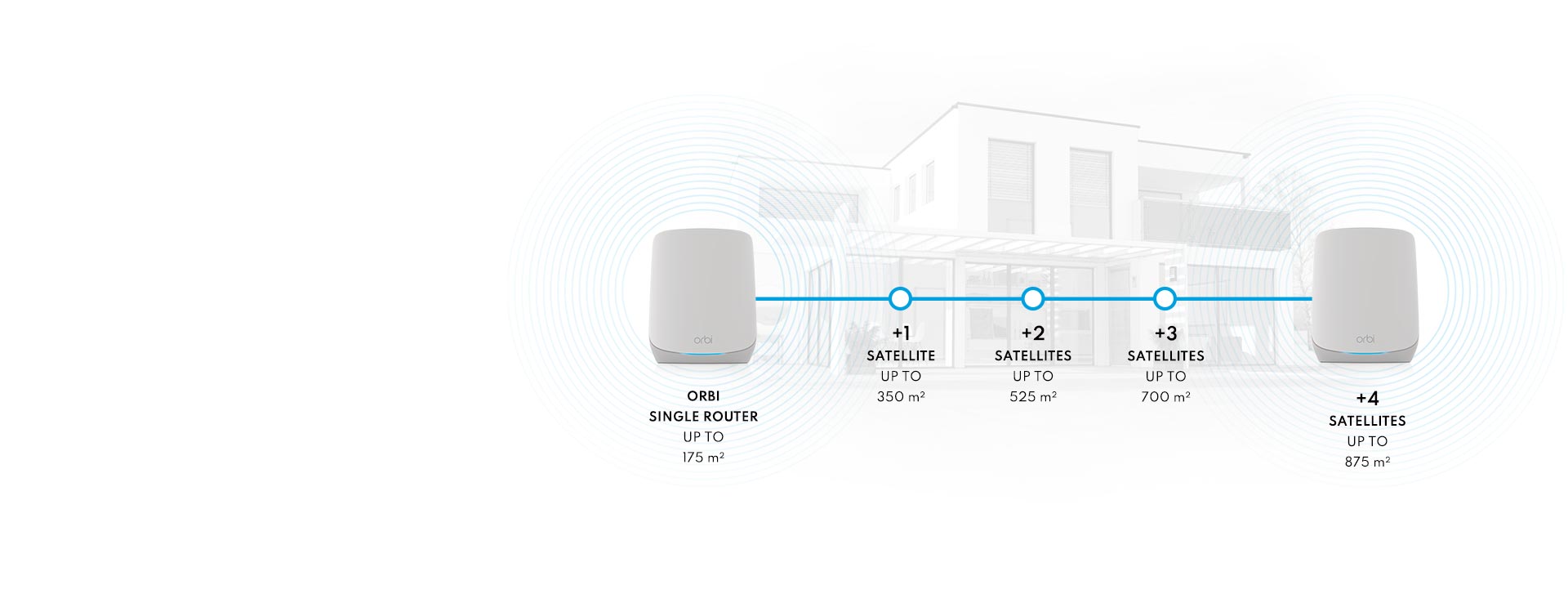

ADD SATELLITES TO
MEET YOUR NEEDS


Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 175 m2 (sold separately).

netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

TAP.
MANAGE.
CONTROL.

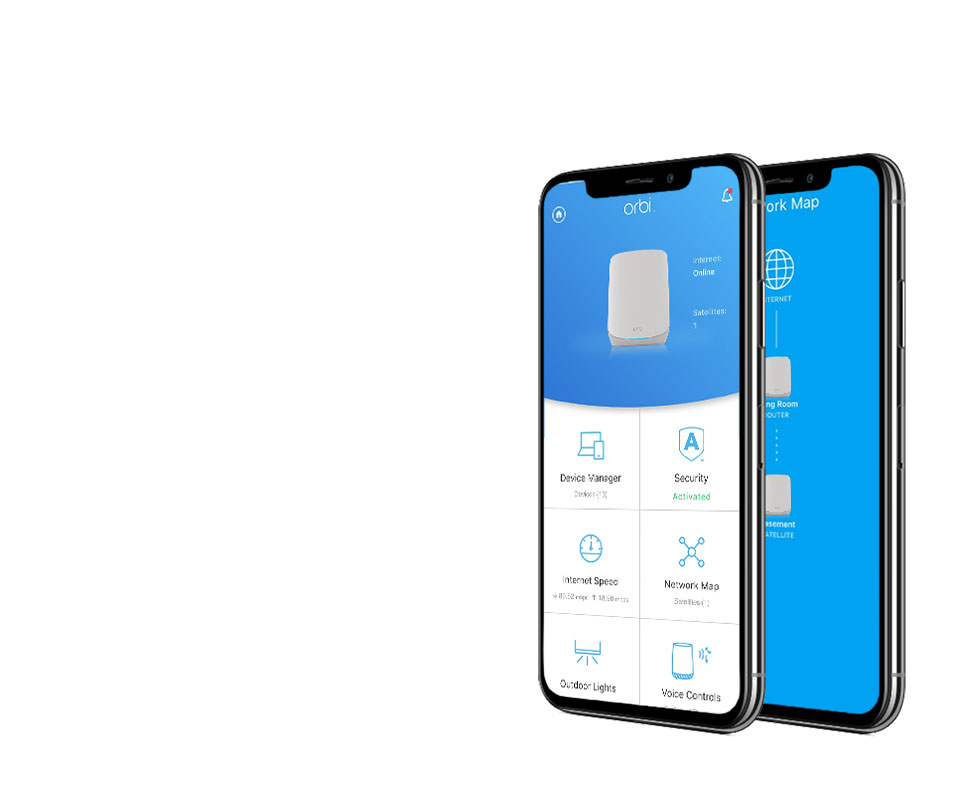

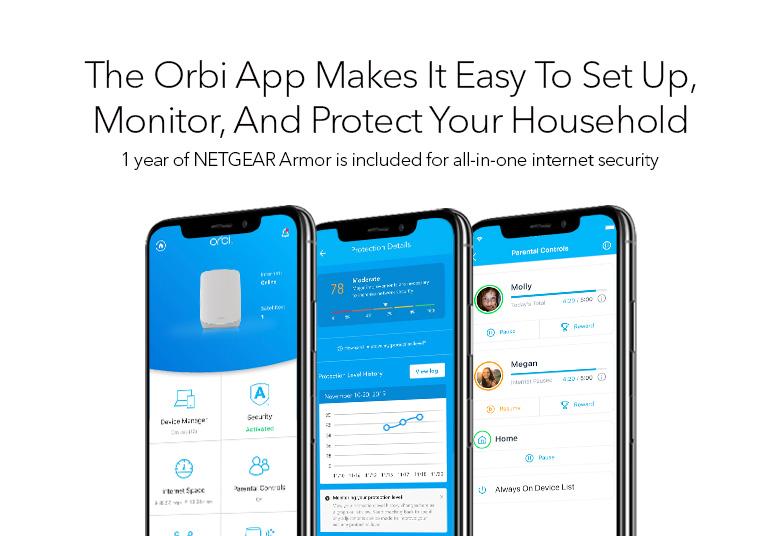

Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

Technical Specifications

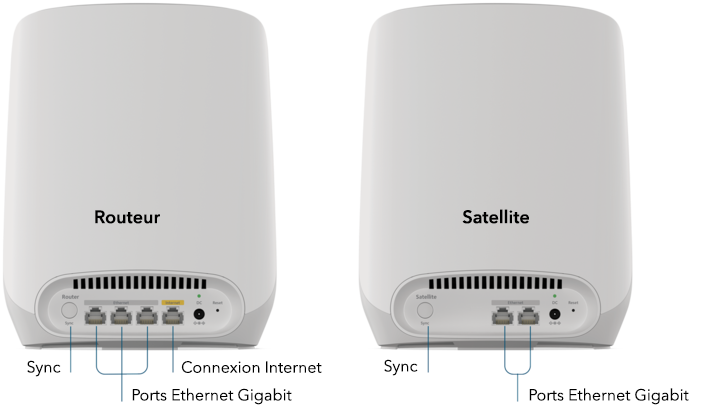

CMS_Tech_Specs_Image-RBK762_ConnectionDiagram
  • Dimensions: 8.3 x 6.6 x 2.5in each
  • Weight: 1.6lb each
  • WiFi Coverage : 5,000 sq. ft.
  • Simultaneous Tri-band WiFi : Orbi AX5400 Router and AX5400 Satellite (600 + 2400 + 2400Mbps)†
  • - Radio 1: IEEE® 802.11b/g/n/ax 2.4GHz—1024QAM support
  • - Radio 2: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • - Radio 3: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
  • MU-MIMO capable for simultaneous data streaming
  • Processor – Router & Satellite : Powerful Dual-Core 1Ghz processor
  • Memory - Router : 4GB eMMC NAND Flash and 1GB RAM
  • Antenna – Router & Satellite (each) : Four (4) high performance internal antennas with high-powered amplifiers
  • Ports – Orbi Router : One (1) Gigabit Ethernet WAN port
  • Three (3) Gigabit Ethernet LAN ports
  • Ports – Orbi Satellite : Two (2) Gigabit Ethernet LAN ports
  • Control your WiFi using voice commands when you have Amazon AlexaTM or the Google® Assistant
  • Security : Advanced cyber threat protection for your home network and connected devices, with comprehensive anti-virus & data theft protection for your PC, Mac®, and mobile devices with NETGEAR ArmorTM
  • Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
  • Guest WiFi Network is easy to setup separate & secure Internet access for guests
  • NETGEAR Smart Parental Controls™ : Easily manage your kids’ time online across their connected devices. Learn more at www.netgear.com/spc
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty
  • WARRANTY
  • Find troubleshooting tips to diagnose product issues in our knowledge base
  • SUPPORT
  • Extend your warranty & technical support within 90 days of product purchase [US only].

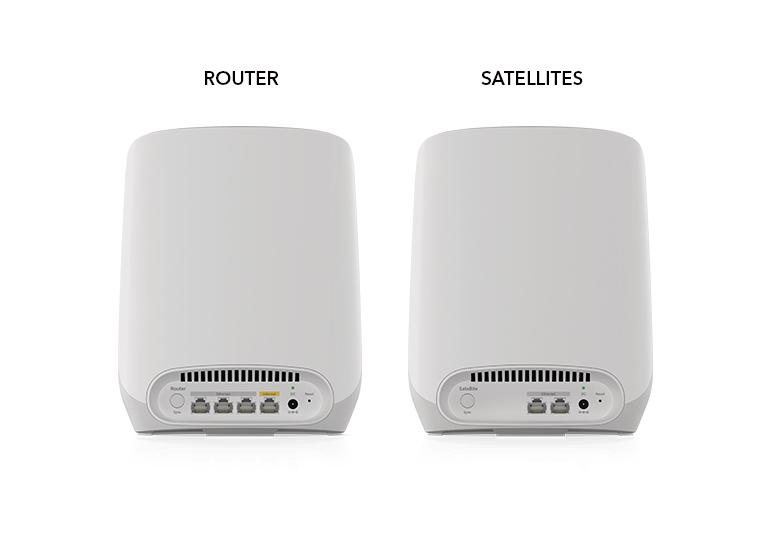

  • One (1) Orbi Router (RBR760)
  • One (1) Orbi Satellite (RBS760)
  • One (1) 2m Ethernet cable
  • Two (2) power adapters
  • Quick start guide

Compare Similar Products

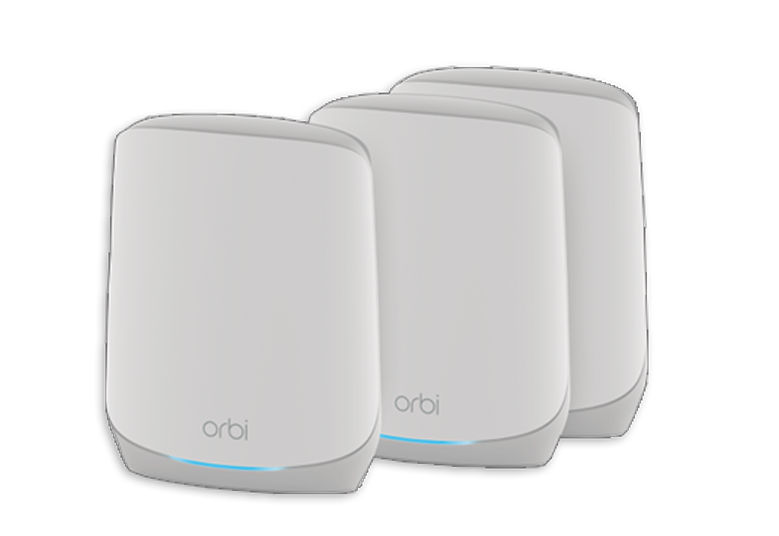

small_orbiv2

RBK763

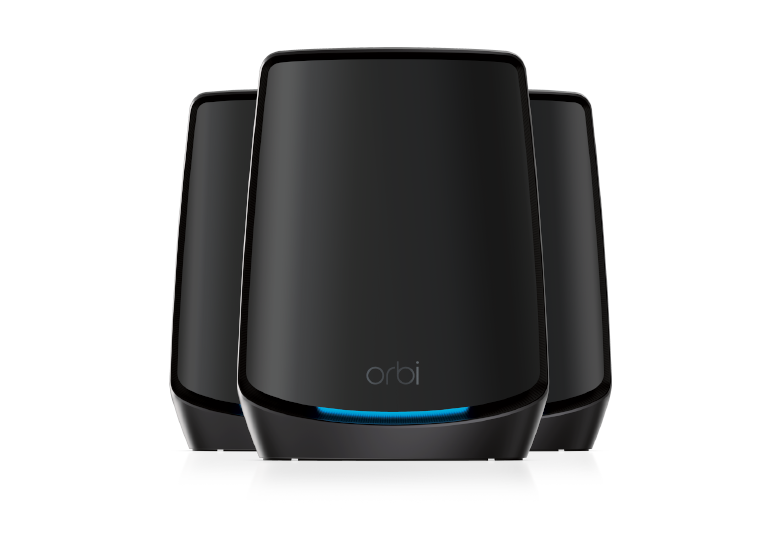

Main_RBK863SB

RBK863SB

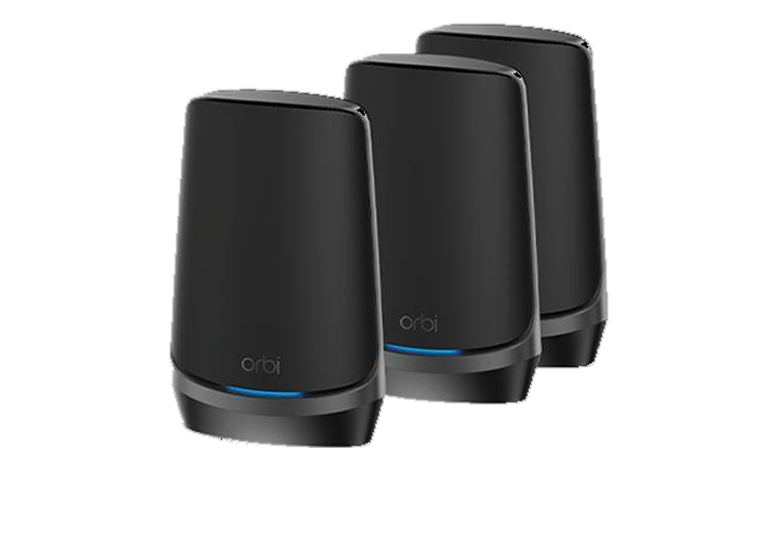

nbke963-wiredconnection-7a

RBKE963​B

Price

Price

Price

Price

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6E​

WiFi Bands

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

WiFi Bands

Quad-Band

Max WiFi Speed

Max WiFi Speed

5.4Gbps

Max WiFi Speed

6 Gbps​

Max WiFi Speed

10.8 Gbps​

Coverage

Coverage

7,500 sq. ft.

Coverage

8,000 sq. ft.

Coverage

9,000 sq ft​

# of Devices

# of Devices

75

# of Devices

100

# of Devices

200

Internet Port Speed

Internet Port Speed

up to 5.4Gbps

Internet Port Speed

up to 10 Gig

Internet Port Speed

up to 10 Gig

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 2x2 (160MHz)

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)

Fronthaul WiFi

Fronthaul WiFi

5GHz: 2x2 (160MHz); ​ 2.4GHz: 2x2​

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4

Fronthaul WiFi

6GHz: 4x4 (160MHz),​ 5GHz: 4x4 (80MHz), ​ 2.4GHz: 4x4​

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Footnotes:

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.

Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.4Gbps wireless speeds achieved when connecting to other 802.11ax 5.4Gbps devices.

NETGEAR Armor is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor
