  • Extend high-performance Orbi 860 WiFi with up to 180 m2 of additional coverage, including front & backyards
  • NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous generation satellites
  • Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence

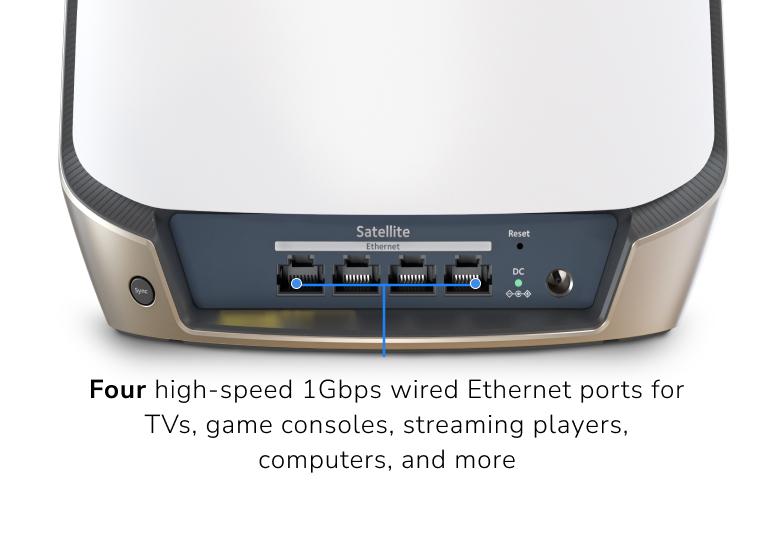

  • Four high-speed 1Gpbs wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
  • NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provides Orbi 860 router-to-satellite communication for max speeds
RBS860 RBS860-100EUS RBS860-100EUS
NEW

AX6000 WiFi Satellite (RBS860) armor

Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps armor

NEW

AX6000 WiFi Satellite (RBS860)

Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • Extend high-performance Orbi 860 WiFi with up to 180 m2 of additional coverage, including front & backyards
  • NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous generation satellites
  • Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence
  • Four high-speed 1Gpbs wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
  • NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provides Orbi 860 router-to-satellite communication for max speeds

Product Overview


WiFi 6

Technology


Tri-Band

WiFi

Up to
6Gbps

maximum WiFi speed

Up to
100

concurrent devices


4

1Gbps Ethernet Ports

Satellite

Tech_RBK863S Tech_RBK863S
Tech_RBK863S Tech_RBK863S

Product Specifications

  • Orbi WiFi 6 Satellites (RBS860)
    1
  • 19V/3.16A power adapter
    1
  • Quick Start Guide
    1

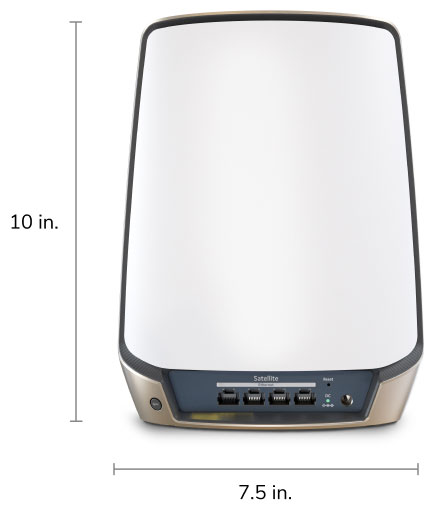

  • Height
    10 inches (254mm)
  • Width
    7.5 inches (190.5mm)
  • Depth
    2.8 inches (71.12mm)
  • Weight
    2.86 lbs (1.29kg)
  • Total WiFi Coverage
    180 m2
  • Requirements

    High-speed internet connection to existing modem or gateway.

    Orbi Router (RBR860) -- SOLD SEPARATELY

SATELLITE
  • WiFi Coverage
    180 m2
  • Speed
    AX6000 (2400 + 2400 + 1200Mbps)
  • Simultaneous Tri-Band WiFi with dedicated backhaul

    Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support

    Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

    Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

  • Processor
    Quad-core 2.2GHz processor
  • Memory
    512MB NAND Flash and 1GB RAM
  • Antenna
    Eight (8) high-performance internal antennas with high-power amplifiers
  • Ports
    Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports each
  • Standards-based WiFi Security
    802.11i, 128-bit AES encryption with PSK
  • Guest WiFi Network
    Easy to setup separate & secure Internet access for guests
  • NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)

    Extend your warranty and technical support within 90 days of product purchase (US only) Learn More

  • 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.

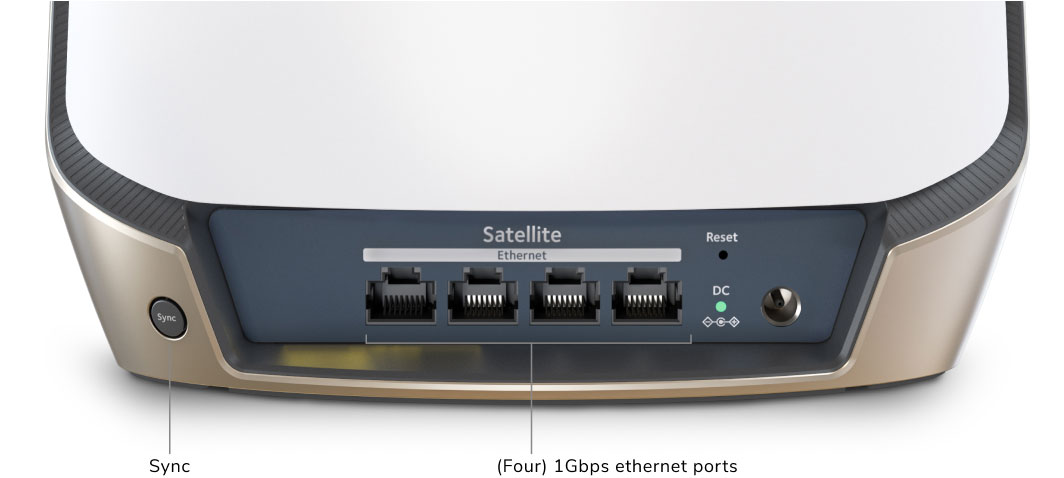

Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
image-95image-95

Never sacrifice speed

NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.

863_image863_image

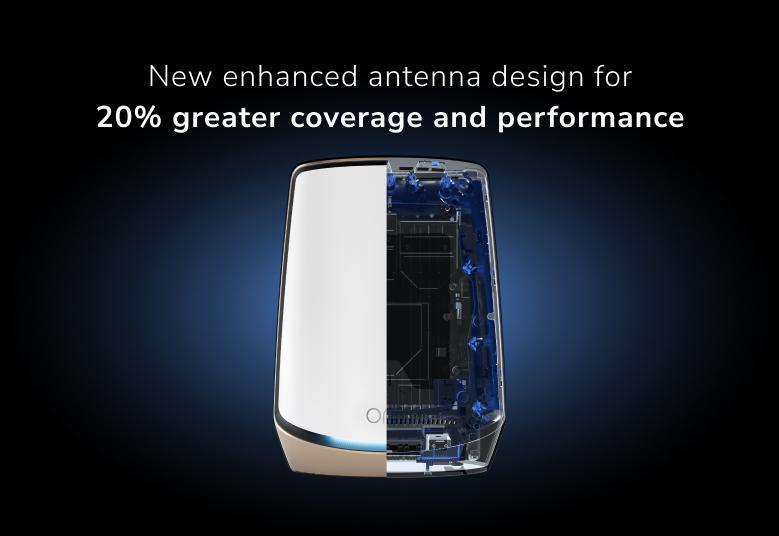

Bigger means better coverage

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi across the whole home. The Orbi 860 Series' all-new antenna upgrades deliver a stunning 20% boost in performance and coverage from the previous generation.

wifi6e-fullasset-1-890x350_v1wifi6e-fullasset-1-890x350_v1

Connect more devices than ever

Orbi WiFi 6 mesh systems are supercharged for today’s data-intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.

DualBox-easy-setup-and-managementDualBox-easy-setup-and-management

Easy setup and management

The Orbi app makes it simple to install your Orbi and get it up and running in less than 15 minutes. Add Orbi Satellites to your system with just the push of a button. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.

Why buy directly from NETGEAR?

Free ground shipping available for all orders. Upgrade to complimentary 2-day shipping on orders $300 and up (pre-tax)

FREE SHIPPING

Shop netgear.com for exclusive offers like Orbi. Sign up to be the first to know about new deals and limited time offers.

EXCLUSIVE
OFFERS

Hassle-free returns, if you are not satisfied with your NETGEAR purchase for any reason, please return your purchase within 30 days

HASSLE-FREE
RETURNS

Footnotes:

Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.

†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.

Compared to RBK853 throughput improvement at maximum range.
