Pro Router (PR460X)
10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
Pro Router (PR460X)
10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
- 10G/Multi-Gig and 2.5G Dual WAN ports with failover

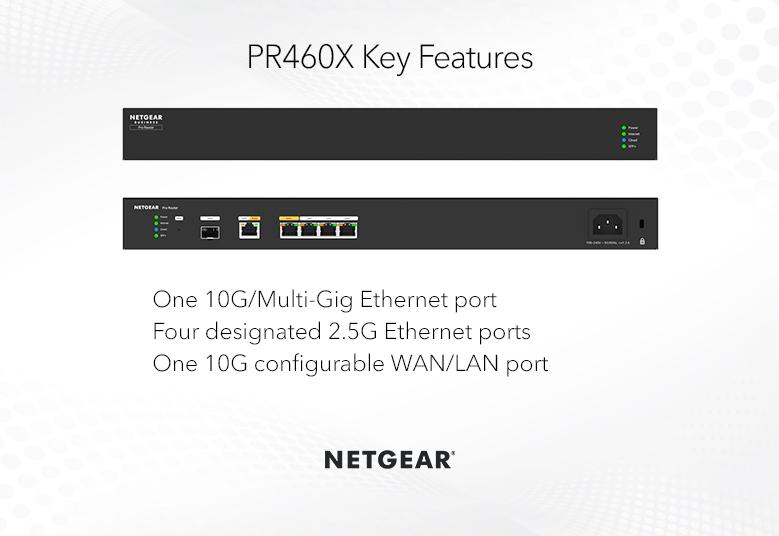

- High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Configure with NETGEAR Engage for integration with AV networks

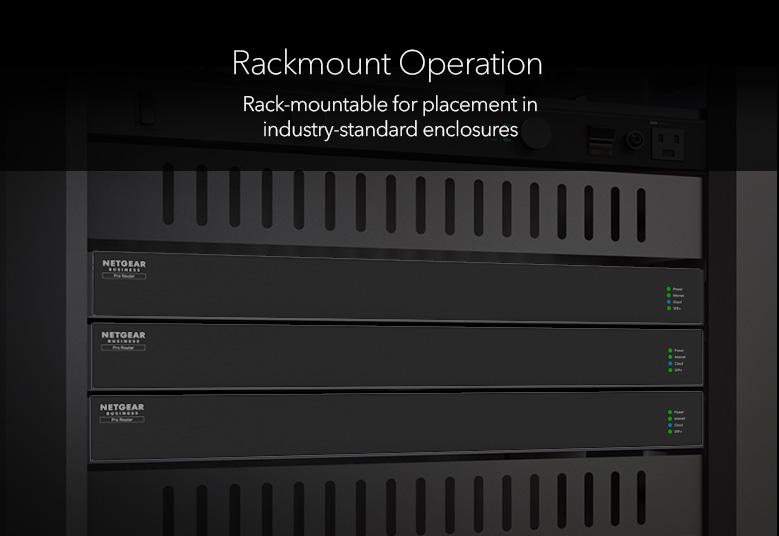

- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-2-site VPN connections
- 5-year hardware warranty, 5-year next business day replacement, 90-day phone/chat support
- 4-years of NETGEAR Insight Remote Cloud Management included
We're always here to help
Want a custom configuration?
Need to check compatibility?
Ready for a quote?
Our experts are available via online chat, phone, or email.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 4-year subscription is included.

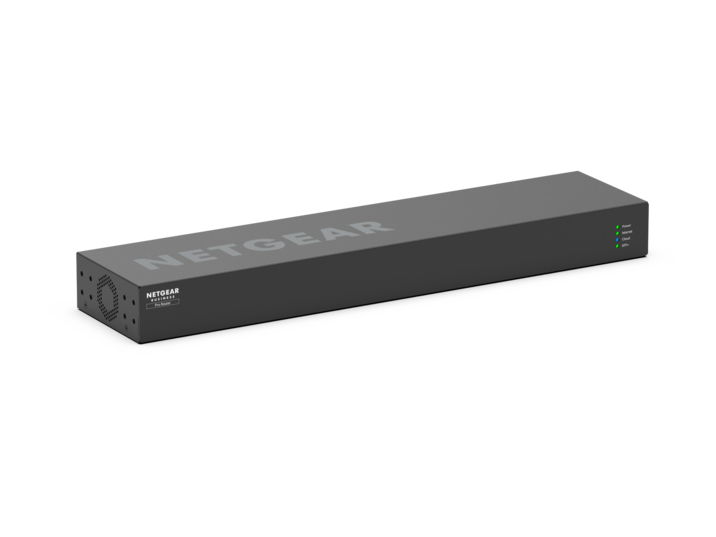

Technical Specifications
Product Specifications
-
NETGEAR PR460X 10G/Multi-Gigabit Dual-WAN Pro Router with Insight Cloud Management
-
DC power adapter (varies by region)
-
Ethernet cable
-
Installation guide
-
Width440mm
-
Depth100mm
-
Height43.2mm
-
Weight3.27lb (1484g)
-
HardwareQuad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
-
Connectivity
Network Switching Subsystem (NSS) processor
1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN)
3 x 2.5G/1G RJ-45 (LAN)
1 x 10G/1G SFP+ (LAN)
-
Performance
WAN/LAN speed at 2.5G or 10G port wired speed.
-
LAN/VLAN
Maximum Number of VLANs is 8, DHCP Server (limit is 8), VLANs 802.1Q
-
SecurityFirewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port.
-
VoIP SIP ALGYes
-
NetworkingISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
-
VPNIPSec
-
Encryption/Authentication3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
-
Key ExchangeIKEv1, IKEv2, Pre-shared Key
-
Management Options
Insight Cloud, Logging Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
-
Major Regulatory Compliance EnvironmentRoHS
-
SafetyCE/LVD, CSA
-
EMICE/LVD, CSA
-
Temperatures Operating Temperature0° - 40°C (32°-104° F)
-
Storage Temperature-20° - 70° C (-4° - 158° F)
-
Humidity
humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing, Electrical Specifications Power adapter input localized to regions
-
Power
AC 100-240V, 50/60Hz, 1.3A
-
NETGEAR Insight Remote Cloud Management
NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
Learn More -
NETGEAR Engage Controller
Centralized application to configure AV switches, pro routers, and access points across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
Learn More
-
ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
