  • 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
  • High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
  • Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
  • Control, manage and monitor through NETGEAR Insight
  • Rack-mountable for placement in industry-standard enclosures
  • Firewall protection
  • IPSec configuration to create secure site-to-site VPN connections
  • 3-year hardware warranty, 3-year next business day replacement, 90-day phone/chat support
PR60X PR60X-100NAS PR60X-100NAS
1-Year NETGEAR Insight Subscription Included

Pro Router (PR60X) armor

10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management armor

1-Year NETGEAR Insight Subscription Included

Pro Router (PR60X)

10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

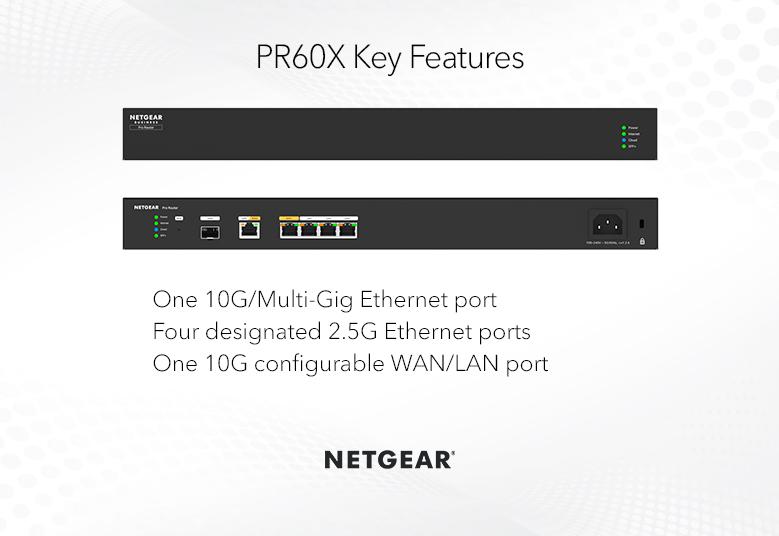

  • 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
  • High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
  • Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
  • Control, manage and monitor through NETGEAR Insight

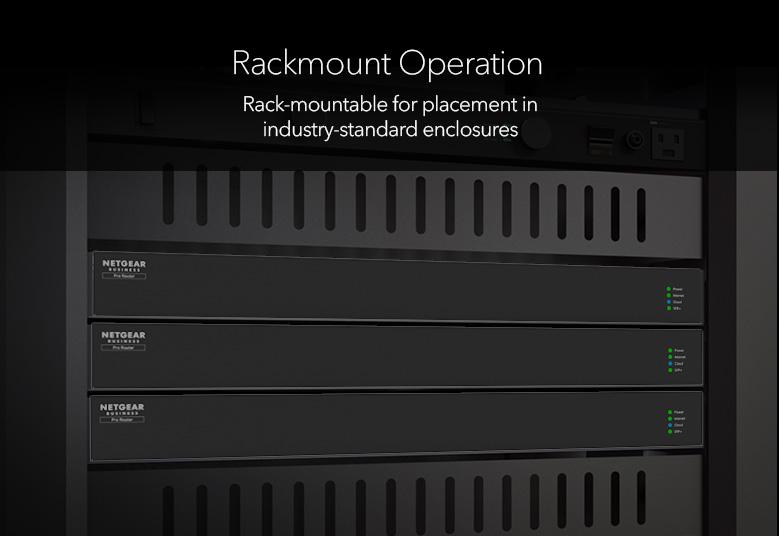

  • Rack-mountable for placement in industry-standard enclosures
  • Firewall protection
  • IPSec configuration to create secure site-to-site VPN connections
  • 3-year hardware warranty, 3-year next business day replacement, 90-day phone/chat support

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

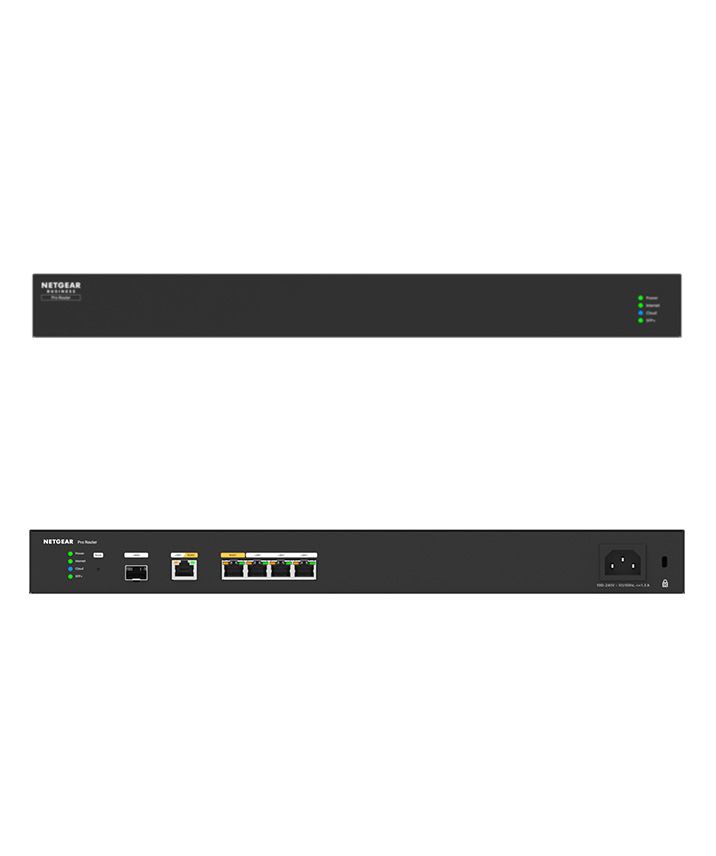

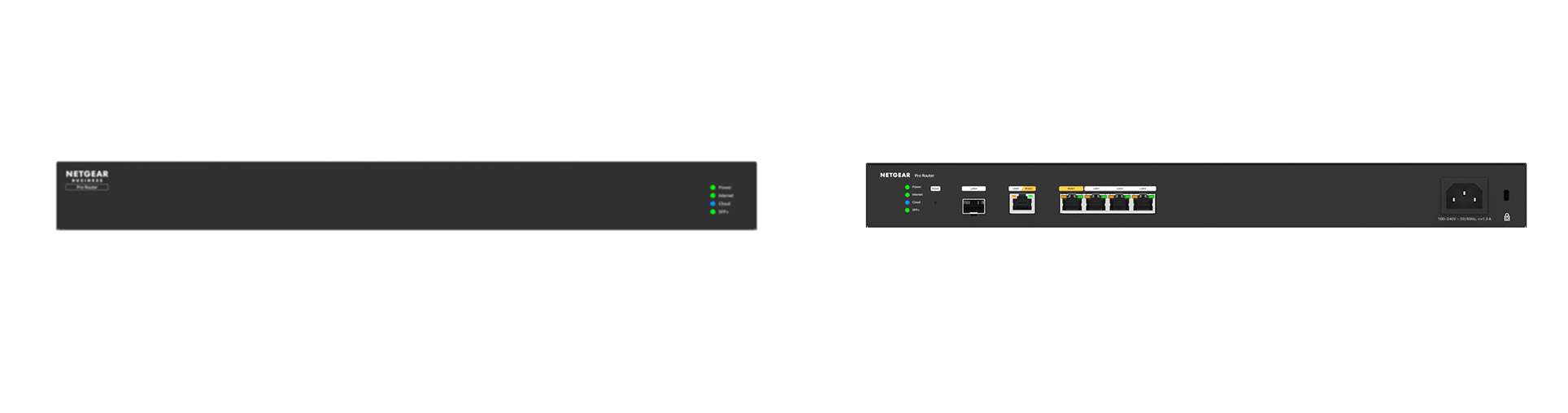

GSM4328_Tech-Specs-Front GSM4328_Tech-Specs-Back

Product Specifications

  • NETGEAR PR60X 10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management
  • Rack-mount kit
  • Rubber feet (for Desktop deployment)
  • Power cord(s) (varies by region)
  • Ethernet cable
  • Installation guide
  • Width
    440mm
  • Depth
    100mm
  • Height
    43.2mm
  • Weight
    3.34lb (1.513kg)
  • Hardware
    Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
  • Connectivity

    1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)

    1 x 2.5G/1G RJ-45 (WAN)

    3 x 2.5G/1G RJ-45 (LAN)

    1 x 10G/1G SFP+ (LAN)

  • Performance

    LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port

    WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only

  • LAN/VLAN

    Maximum Number of VLANs is 8

    DHCP Server (limit is 8)

    802.1Q VLAN

  • Security
    Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port
  • VoIP SIP ALG
    Yes
  • Networking
    ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
  • VPN
    IPSec Site-to-Site
  • Encryption/Authentication
    3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
  • Key Exchange
    IKEv1, IKEv2, Pre-shared Key
  • Management Options

    Insight Remote Cloud Management

    Web GUI

  • Logging
    Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
  • Major Regulatory Compliance Environment
    RoHS
  • Safety
    CE/LVD, CSA
  • EMI
    FCC Part 15 Class B, CE mark
  • Operating Temperature
    0° to 40°C (32° to 104° F)
  • Storage Temperature
    -20° to 70° C (-4° to 158° F)
  • Humidity

    Operating humidity 90% maximum relative humidity, non-condensing,

    Storage humidity 95% maximum relative humidity, non-condensing

  • Power

    AC 100-240V, 50/60Hz, 1.3A

    Electrical Specifications Power adapter input localized to regions

  • NETGEAR Insight Remote Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • This product is backed by a 3-year Hardware Limited Warranty, 3-year Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one-, three-, or five-year contracts.
