Cost-effective plug-and-play networking lets you expand your office network to multiple devices instantly GS305v3 GS305-300PAS GS305-300PAS

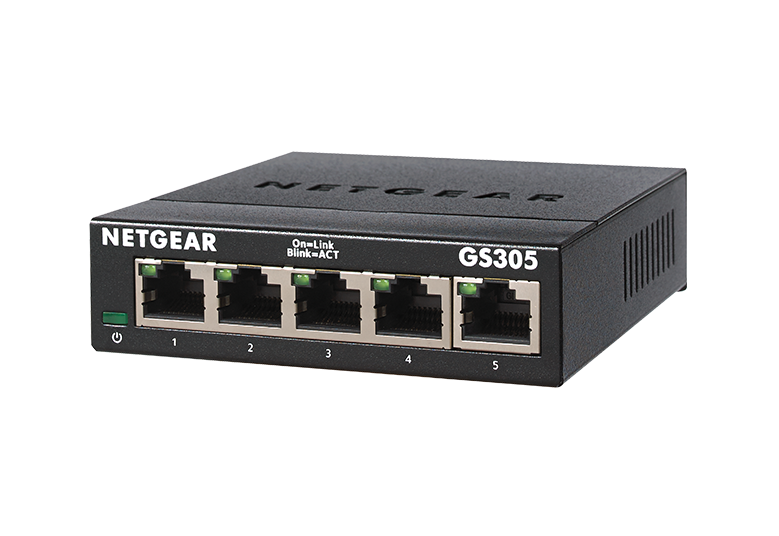

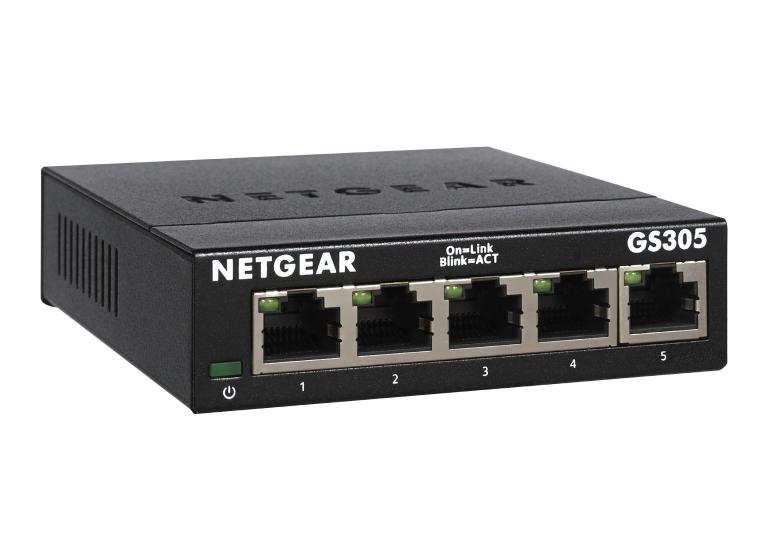

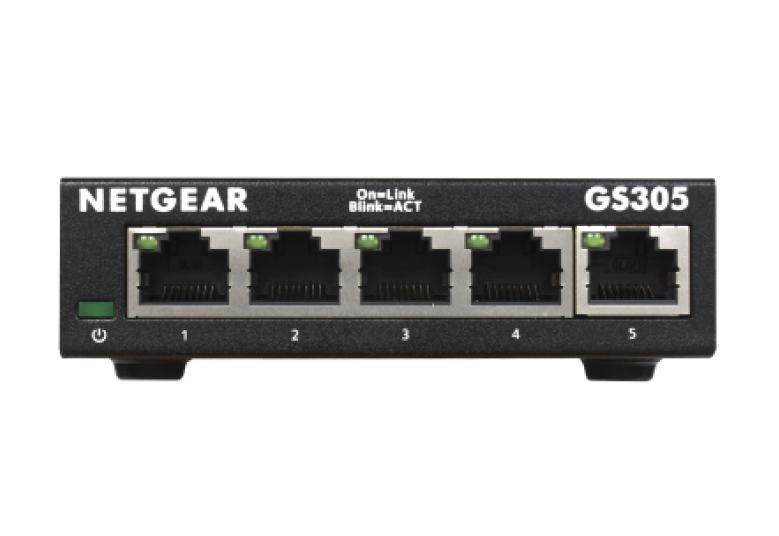

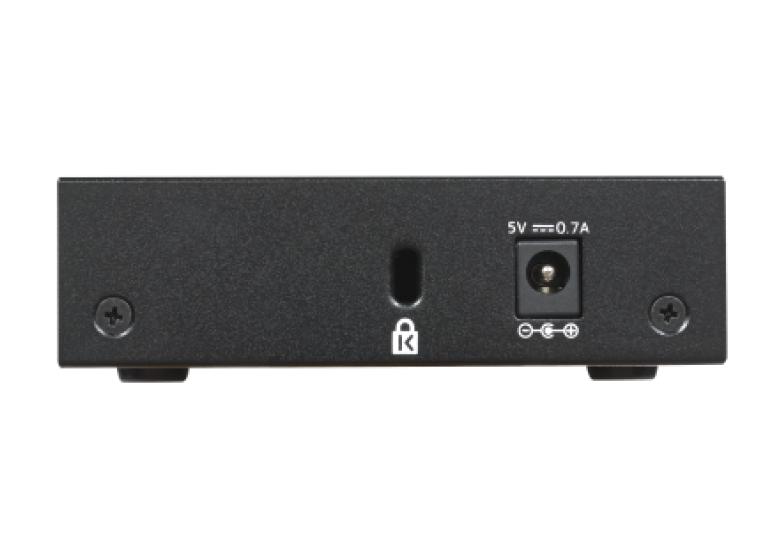

300 Series SOHO Unmanaged Switch (GS305v3) armor

5-Port Gigabit Ethernet SOHO Unmanaged Switch armor

300 Series SOHO Unmanaged Switch (GS305v3)

5-Port Gigabit Ethernet SOHO Unmanaged Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Cost-effective plug-and-play networking lets you expand your office network to multiple devices instantly

ETHERNET PORT CONFIGURATION
5 Gigabit ports
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.

Technical Specifications

GS305_tech_specs_image_1

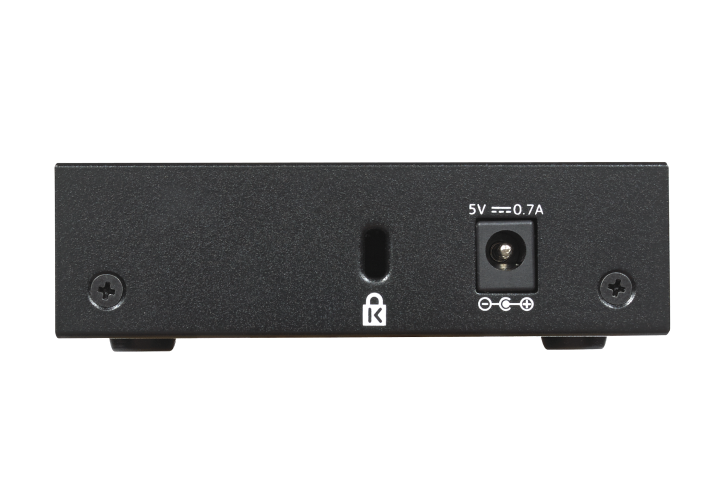

GS305_tech_specs_image_2
  • Dimensions : 158 x 101 x 29mm (6.2 x 4.0 x 1.1in)
  • Weight : 0.88 kg (1.94 lb)
  • Product name : NETGEAR 5-Port Gigabit Ethernet Unmanaged Switch (GS305v3)
  • Speed : Gigabit
  • Number of Ports : 5
  • Energy Efficient Ethernet support : Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode
  • Jumbo frame support : 9,720 bytes
  • MAC table size : 2K
  • Packet buffer size : 128KB
  • Power Supply : External
  • PoE Auto balance : N/A
  • PoE budget : N/A
  • Protocols : IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Priority QoS (all models)
  • IEEE 802.3 CSMA/CD
  • 802.3az Energy Efficient Ethernet

    • Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region).

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
