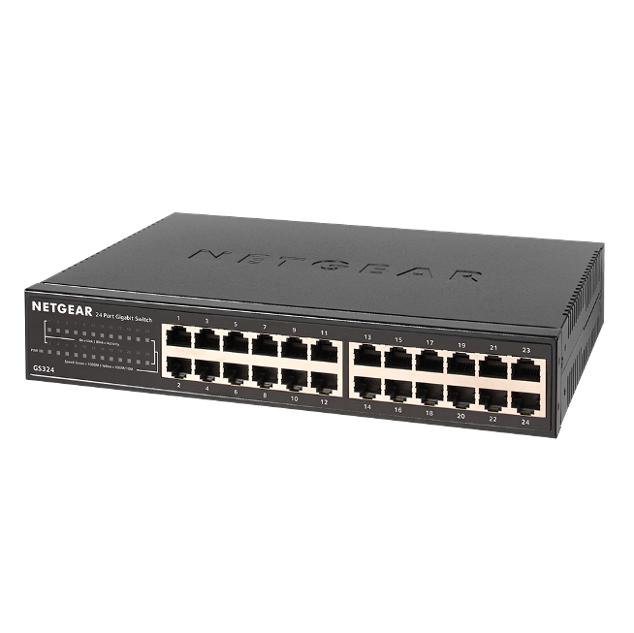

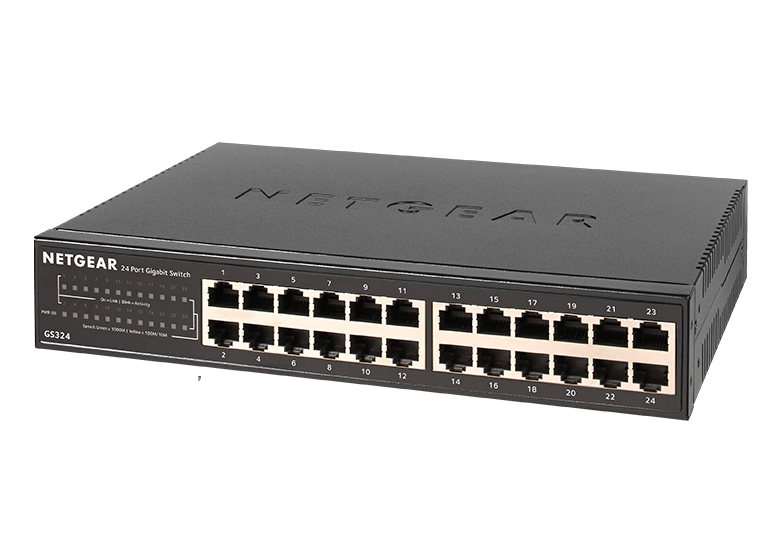

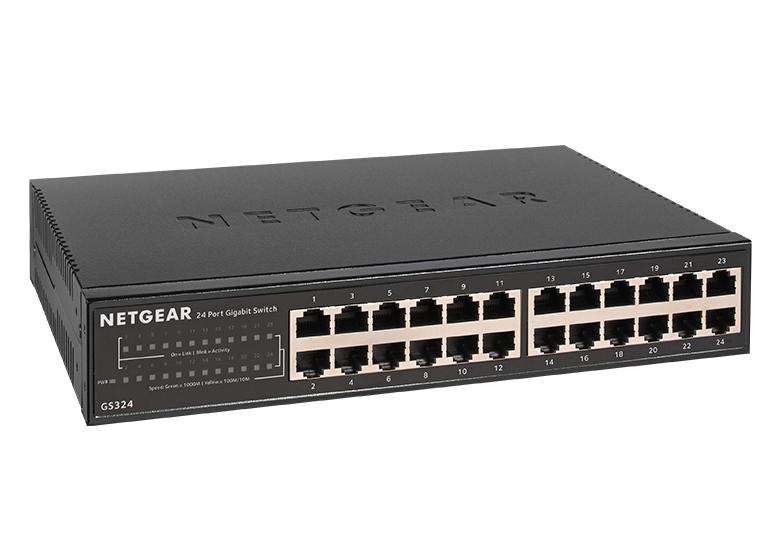

SOHO Ethernet Unmanaged (GS324v2)
24-Port Gigabit Ethernet Unmanaged Switch
SOHO Ethernet Unmanaged (GS324v2)
24-Port Gigabit Ethernet Unmanaged Switch
Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.
ETHERNET PORT CONFIGURATION
24 Gigabit metal ports
PLUG & PLAY
Simple setup with no software or configuration needed.
FLEXIBLE MOUNTING
Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE, AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind.
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT
NETGEAR has your back to ensure your network is up and running.STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Desktop, wall or rackmountable
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Technical Specifications
- Dimensions (W x D x H) : 252 x 180 x 44 mm (9.9 x 7.1 x 1.7 in)
- Weight : 1.31 kg (2.90 lb)
- Model Description : 24-Port Gigabit Ethernet Switch
- Speed : Gigabit
- Number of Ports : 24
- PoE Ports / Max Power Per Port : n/a
- PoE Max Power Supplied (All Ports) : n/a
- Connector Type : Metal
- Switch Housing : Metal

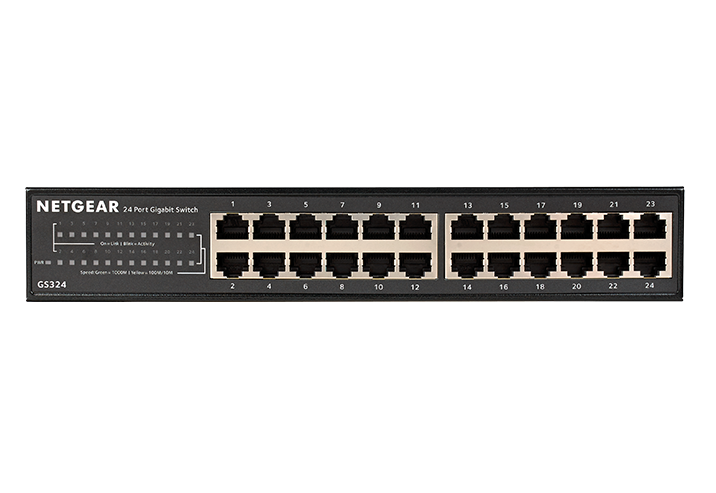

- LEDs : Power, Speed, Link/Activity
- Short cable power saving : Yes
- Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
- Jumbo Frame Support : 9,216 bytes
- MAC Table Size : 8K
- Packet buffer size : 512 KB

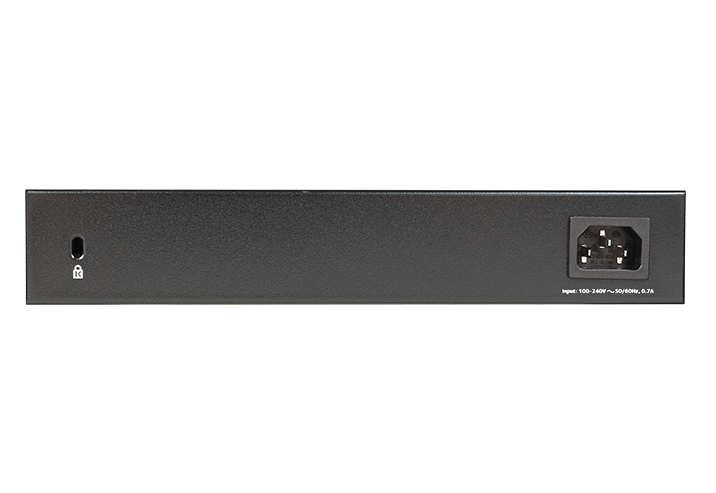

- Power : Internal (AC: 110-240V, 50-60Hz, 1.0A max)
- Max Power Consumption (Watts) : 11.1W
- Acoustic Noise Level @ 25° C (dBA) : 0 dBA (Fanless)
- Operating Temperature : 0° to 40°C (32° to 104°F)
- MTBF (@ 25° C) : 620,798 hours
- Electromagnetic compliance (A or B) : Class A
- Form Factor : Desktop, wall-mountable, or rack-mountable

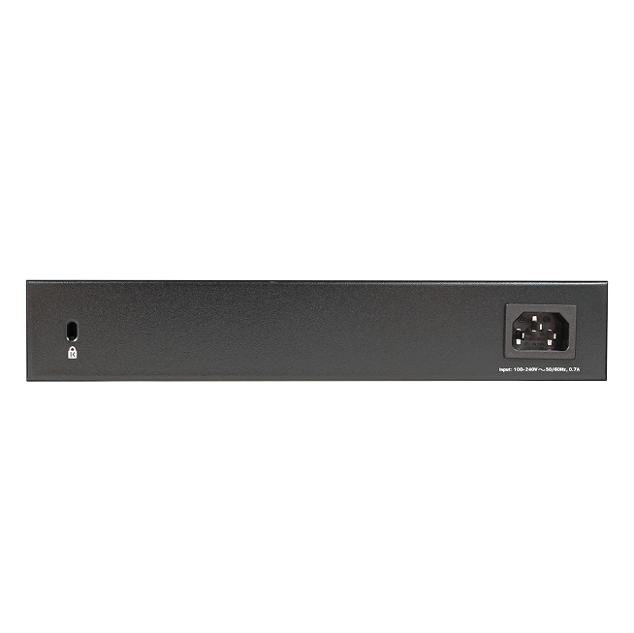

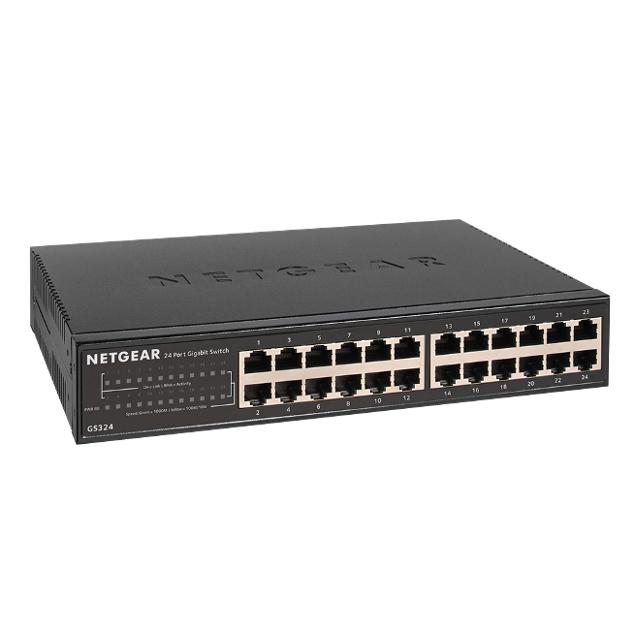

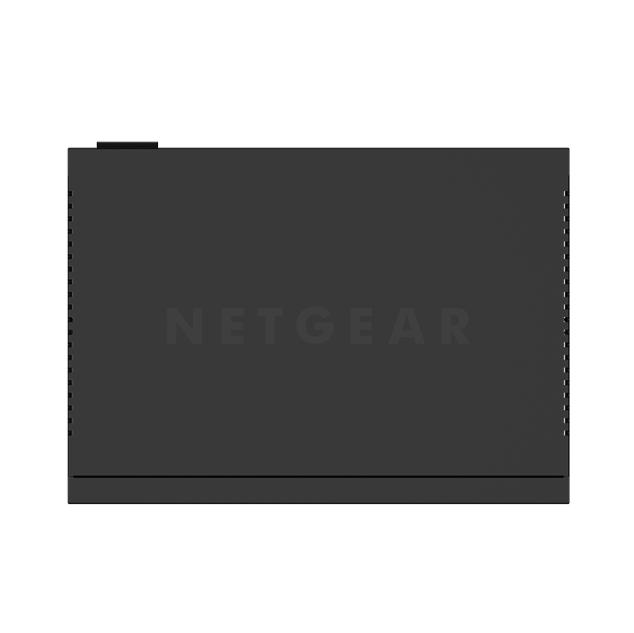

High Resolution Image
