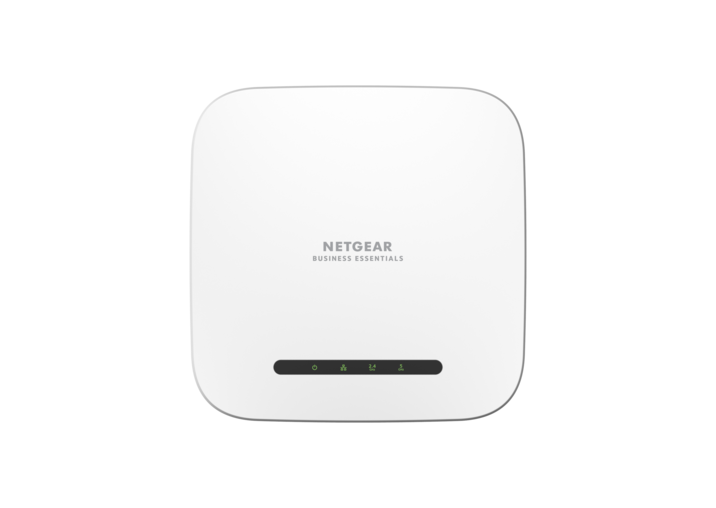

AX4200 WiFi 6 Access Point (WAX220)
NETGEAR® WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE
AX4200 WiFi 6 Access Point (WAX220)
NETGEAR® WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE
As part of the Business Essentials line, the WAX220 is an ideal WiFi 6 solution for your small business or home office. Use this standalone access point to create your own dedicated, secure and fast wireless network. Manage it locally without any app or subscription required. Quickly and easily configure in less than 10 minutes!
The most powerful WiFi ever
4x
more capacity
40%
increase in data throughput
100%
backwards compatibility
Features
LATEST BUSINESS WIFI
Upgrade to WIFi 6 with speeds of up to 4.2 Gbps for faster streaming, downloading, video conferencing, and more.
BUDGET FRIENDLY SOLUTION
The perfect WiFi 6 business solution for your small office, retail shop, conference room, or lobby.
COMPACT WITH VERSATILE MOUNTING

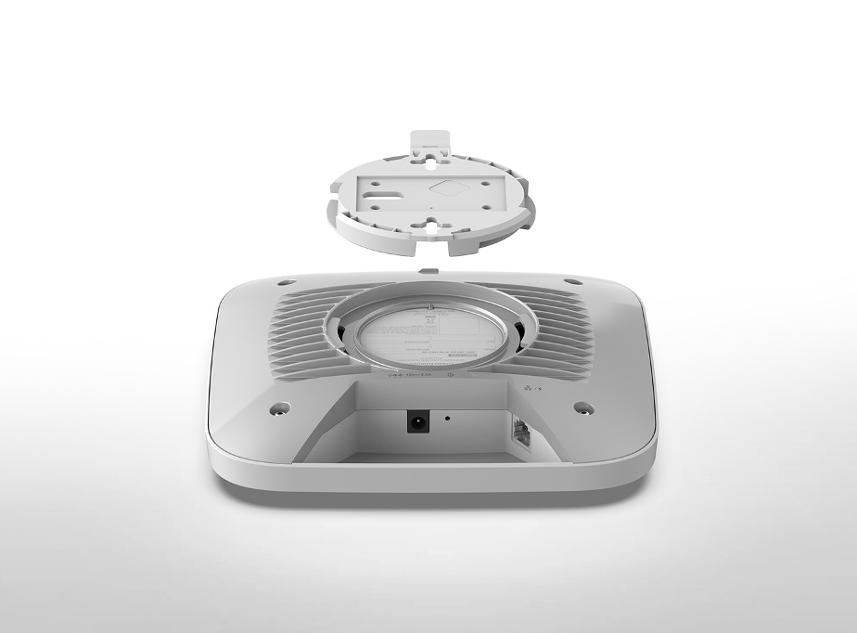

Small size and easy to mount on a wall or ceiling make it ideal for a lobby or retail showroom where you want your Access Point to be discrete
SECURE & ISOLATED
4 unique SSID’s, WPA3 authentication, and a dedicated Ethernet connection isolate it from the rest of your office network
POWER OVER ETHERNET(PoE+) POWERED
Connect it to your router with a single Ethernet cable for both power and data, without complicated wiring, professional installation, or added IT equipment costs.
EASY DIY SET UP
Easy 10 minute configuration with an intuitive Web GUI. No need for professional installation or IT equipment cost.
We're Always Here to Help
Track and manage orders & register your products
VISIT MY.NETGEAR.COMSearch through FAQs in our community forums
NETGEAR COMMUNITYCheck out our self-help tool or contact support
NETGEAR SUPPORTTechnical Specifications
- Dimensions (W x D x H) : 7.71 x 7.71 x 1.74 in (196 x 196 x 44.4 mm)
- Weight : 1.15lb (523g)
- Speed : AX4200
- Radio : 5GHz: 4x4 20/40/80/160MHz
- 2.4GHz: 2x2 20/40MHz
- Theoretical Throughput : 5GHz: 3.6Gbps
- 2.4GHz: 0.6Gbps
- Antenna Gain : 5dBi (2.4GHz), 5dBi (5GHz)
- # of Max Users : 256
- # of Concurrent Devices : 75
- Coverage : 2,000 sqft (185 sqm)
- Ideal Use : Small and medium business, home office
- Ethernet port : 1 x 2.5G port
- PoE : Yes
- PoE Power Consumption : 15W
- Local management
- Security : WiFi Protected Access (WPA/WPA2/WPA3), MAC Address filtering, 4 SSID
- Hardware Limited Warranty 3 years
- Next-Business-Day (NBD) Replacement 5 years
- WAX220 Support
- WAX220 Wireless Access Point
- Ceiling / Wall mount kit
- Installation guide
- Warranty / Support information card
