Cloud Managed WiFi 6 (WAX610PA) armor

AX1800 Dual Band PoE Multi-Gig Insight Managed WiFi 6 Access Point with Power Adapter armor

Cloud Managed WiFi 6 (WAX610PA)

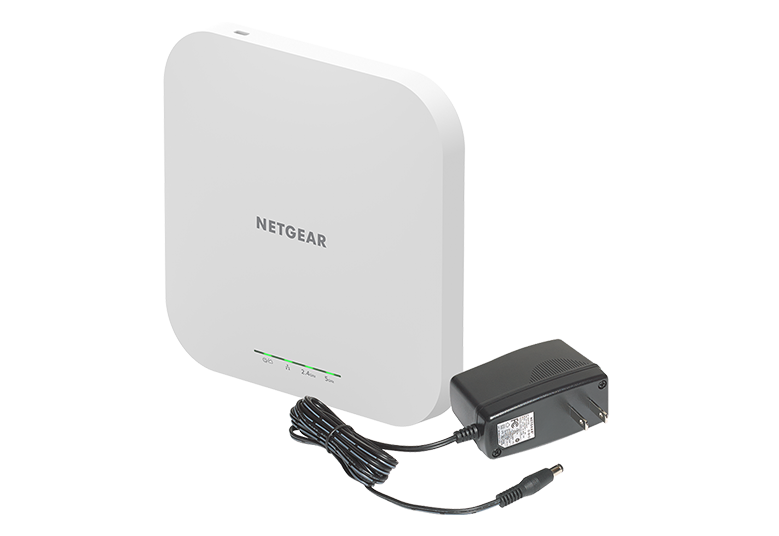

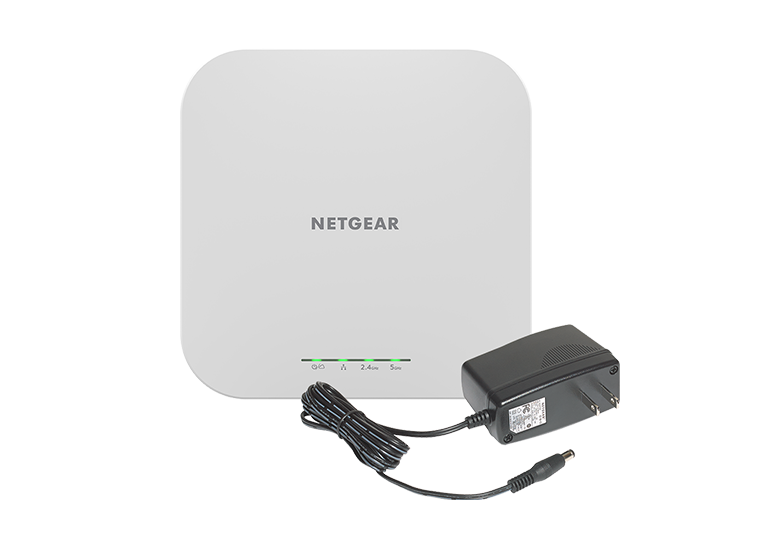

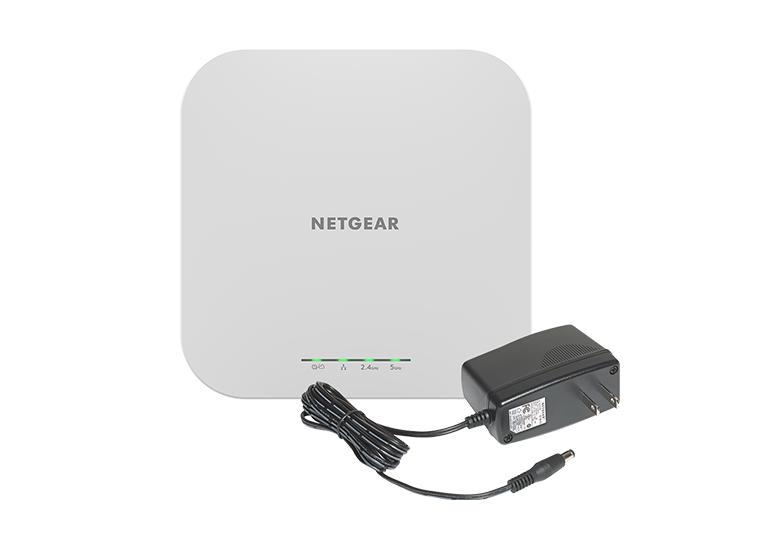

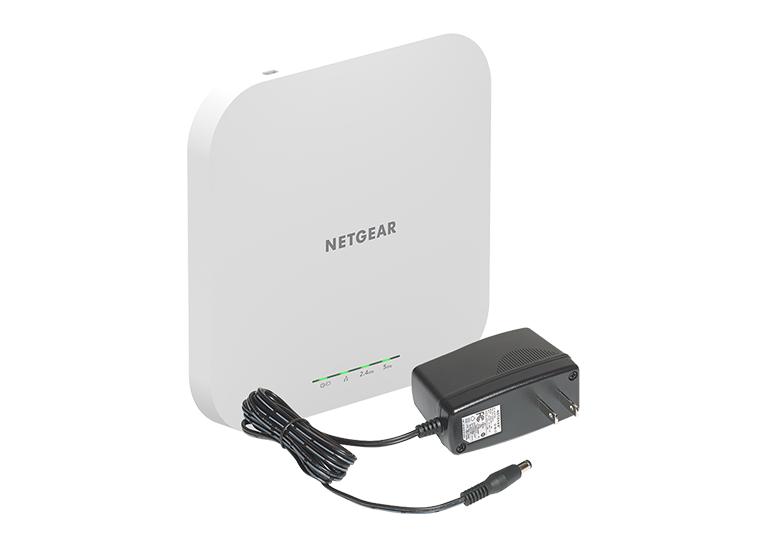

AX1800 Dual Band PoE Multi-Gig Insight Managed WiFi 6 Access Point with Power Adapter

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business. Power adapter included.

AX1800 | WiFi 6 | Dual-band | PoE | Multi-Gig | WAX610

AX3000 | WiFi 6 | Dual-band | PoE | Multi-Gig | WAX615

AX3000 | Includes power adapter

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

LEARN MORE

WiFi6_logo_white

The most powerful WiFi ever

more capacity

40%

increase in data throughput

100%

backwards compatibility

Instant WiFi Mesh

Forming wireless backhaul with other WAX610, WAX610Y, WAC540, or WAC564 units to set up a mesh network

Monitor From Anywhere

User-friendly remote cloud management with the Insight app

Flexible Mounting

Wall and ceiling kit included

Features

Powerful Business WiFi

Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.

Ideal for High Density Environments

Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

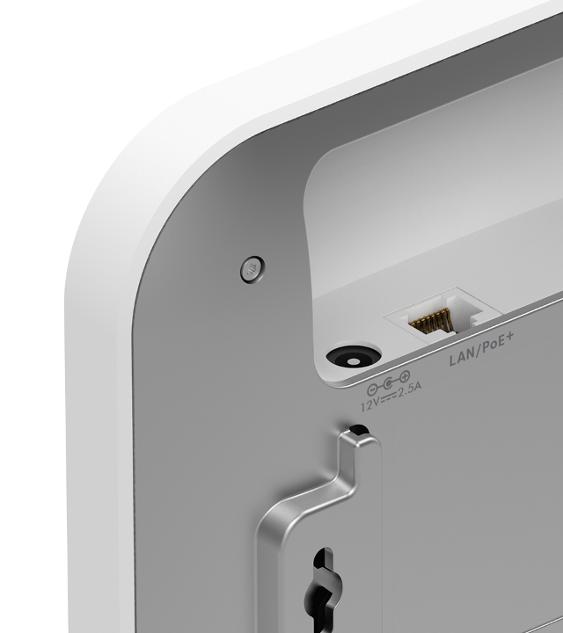

Easy Wiring

Extra Wired 2.5Gbps Ethernet port that’s backward compatible with 100/1000Mbps Ethernet for easy wiring. WAX610PA version includes power adaptor for non-PoE installations.

Greater Network Capacity

Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless, Mesh WiFi

Wire-free installation with other WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Easy DIY Set Up

Setup, configure, and manage with the Insight app.

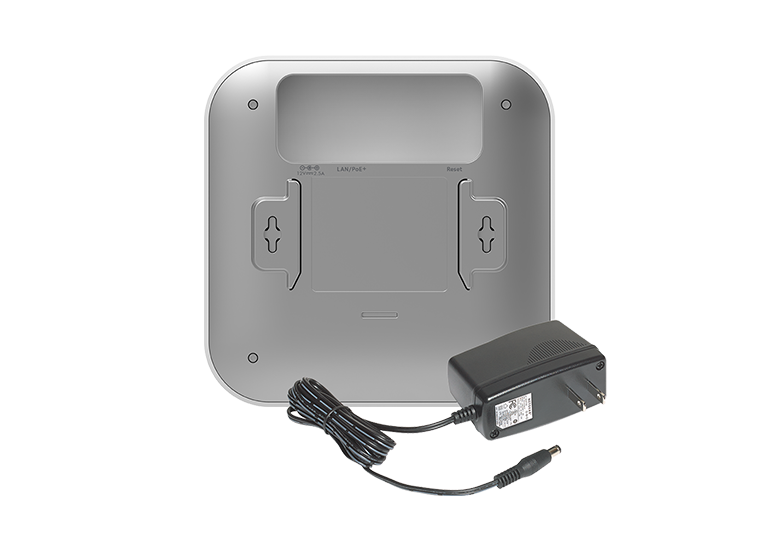

Flexible Mounting

Easy to securely install on the wall or a suspended ceiling with included hardware.

8 Wireless Networks (SSIDS)

Separate and secure networks for admin, guests, employees and IoT like cameras, locks and more.

Separate VLANs

Keep admin, employees, visitors, HR departments safely separated and segregated.

Peer-to-peer Separation

Prevent guests from accessing other guests devices on same VLAN

Product Datasheet

Technical Specifications

Compare Similar Products

	WAX630	WAX620	WAX610	WAX610Y
WiFi Speed	WiFi Speed WiFi 6 – AX6000 (Up to 6 Gbps)	WiFi Speed WiFi 6 - AX3600 (Up to 3.6 Gbps)	WiFi Speed WiFi 6 - AX1800 (Up to 1.8 Gbps)	WiFi Speed WiFi 6 - AX1800 (Up to 1.8 Gbps)
# of Concurrent Users	# of Concurrent Users 100	# of Concurrent Users 75	# of Concurrent Users 50	# of Concurrent Users 50
Indoor/outdoor	Indoor/outdoor Indoor	Indoor/outdoor Indoor	Indoor/outdoor Indoor	Indoor/outdoor Outdoor
Ideal Use	Ideal Use Small and Medium Business	Ideal Use Small and Medium Business	Ideal Use Small and Medium Business	Ideal Use Small and Medium Business
Coverage in SqFt	Coverage in SqFt 3,500	Coverage in SqFt 3,000	Coverage in SqFt 2,500	Coverage in SqFt 2,500
Physical Specifications	Physical Specifications Dimensions: 10.63 x 10.63 x 1.57 in, Weight: 2.10 lbs	Physical Specifications Dimensions: 8.09 x 8.09 x 1.35 in, Weight : 1.72 lb	Physical Specifications Dimensions: 6.33 x 6.33 x 1.30 in, Weight: 0.90 lb	Physical Specifications Dimensions: 7.12 x 12.0 x 1.33 in, Weight: 2.07 lb
Ethernet port	Ethernet port 1 x 2.5G and 1 x 1G	Ethernet port 2.5G	Ethernet port 2.5G	Ethernet port 2.5G
PoE	PoE Yes	PoE Yes	PoE Yes	PoE Yes
Wireless Mesh	Wireless Mesh Yes	Wireless Mesh Yes	Wireless Mesh Yes	Wireless Mesh Yes
Remote Management	Remote Management NETGEAR Insight	Remote Management NETGEAR Insight	Remote Management NETGEAR Insight	Remote Management NETGEAR Insight
