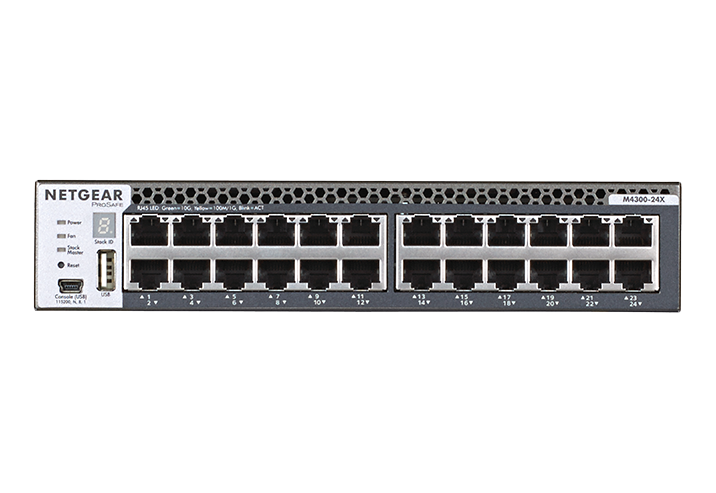

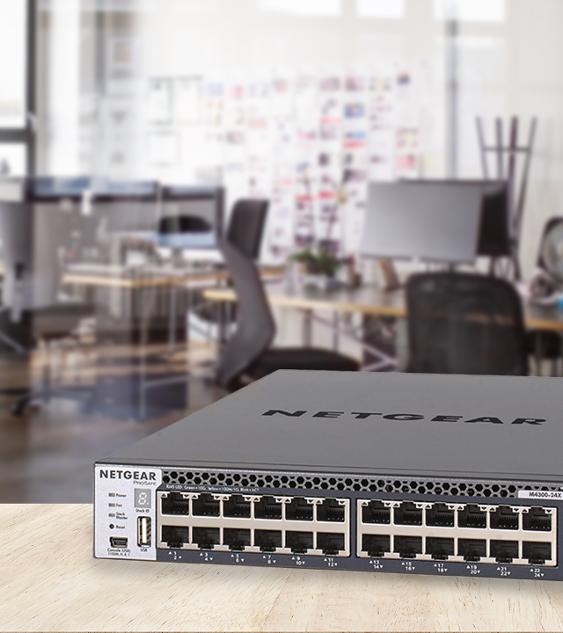

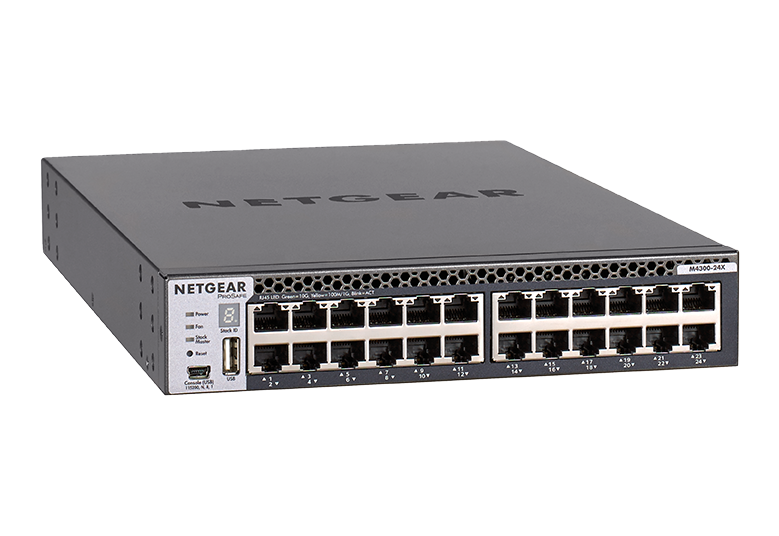

M4300-24X (XSM4324CS)
24x10G and 4xSFP+ (shared) Managed Switch
M4300-24X (XSM4324CS)
24x10G and 4xSFP+ (shared) Managed Switch
Half-Width 24x10G Stackable Managed Switch with 24x10GBASE-T
Features
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stackMulti-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilitiesPVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)Link Dependency
Enables or disables ports based on link state of different portsAdvanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigationHalf-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack (select m4300 models)
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+ (30 watts per port), plug and play ports, and hot swap, you're ready to grow whenever you need to.
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)No Delay
Non-Blocking Fabric for Near-Zero Switch LatencyNETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 MulticastDedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
No more Downtime
Or bottlenecks - Spine and Leaf topologies in the same stack with unrivaled ease of use
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market.
Technical Specifications
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
- Support
- Hardware Specifications : Model Number: XSM4324CS
- Ports: 24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared)
- 1 Modular Bay with One (1) 250W Modular PSU included APS250W
- 480 Gps Switching Fabric
- Fixed Fan Front-to-Back 37dB
- Management Options : Ethernet: Out-of-band 1G port (Back)
- Console: RJ45 RS232 (Back). Mini-USB (Front)
- Storage: USB (Front)
- Single-pane-of-glass NMS300 management platform with mass-configuration support
- Dual firmware image and configuration file for updates with minimum service interruption
M4300 Family High Resolution Image
Technical Guides for Pro AV
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
- Support
- Table Sizes : 128K MAC 8k ARP / NDP
- Up to 960 Gbps
- Throughput up to 714 Mpps
- Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
- Latency : <0.9µs 10G SFP+
- <1.25µs 10G RJ45
- IP Multicast : 1,024 IPv4 / 512 IPv6
- Multicast IGMP Membership : 2k IPv4 / IPv6
- M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
- VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
- Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
- Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
