Smart w/ optional Cloud (GS710TUP)

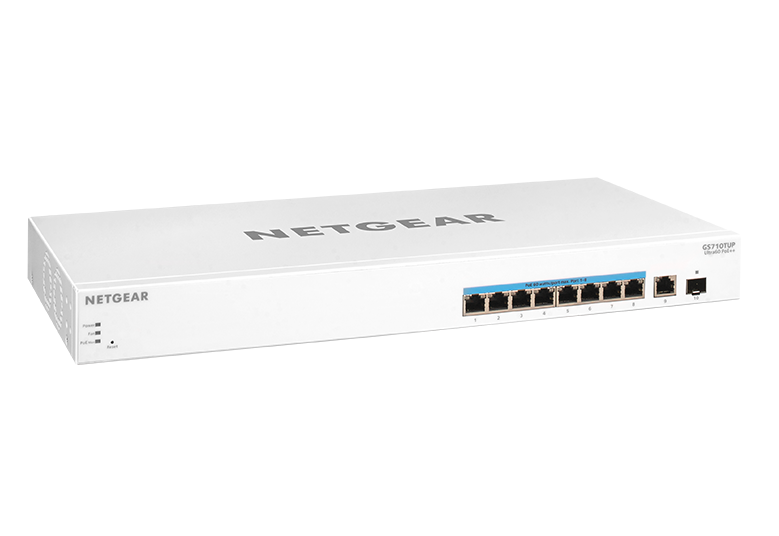

10-Port Gigabit Ethernet High-Power PoE+ with PoE++ Ports Smart Rackmount Switch (480W)
Smart w/ optional Cloud (GS710TUP)
10-Port Gigabit Ethernet High-Power PoE+ with PoE++ Ports Smart Rackmount Switch (480W)
8 Ultra60 PoE++ ports (up to 60W/port) with 480W total power output

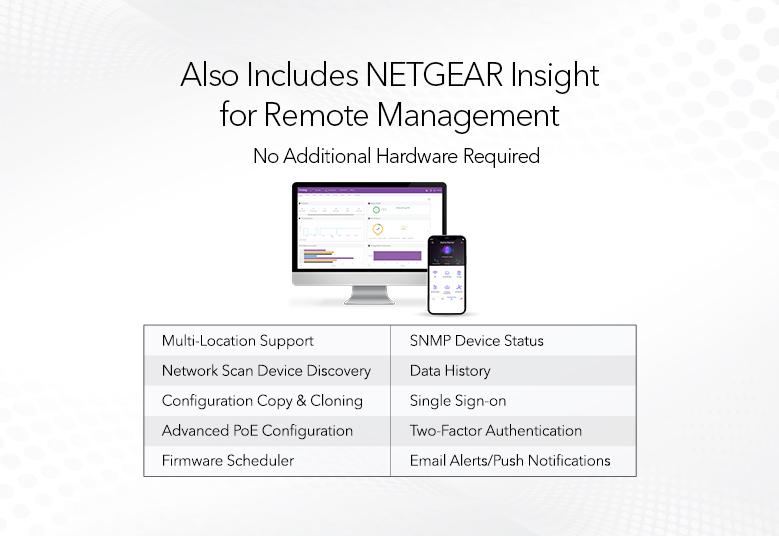

NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Insight Cloud Management
Remote monitoring and management with performance dashboards and troubleshooting features
Single Pane-of-Glass
Remotely manage multi-device, multi-network and multi-sites with Insight
Centralized network configuration (policies) across Insight Managed Switches, Access Points, and ReadyNAS storage for VLANs, ACLs, QoS, LAGs, etc.

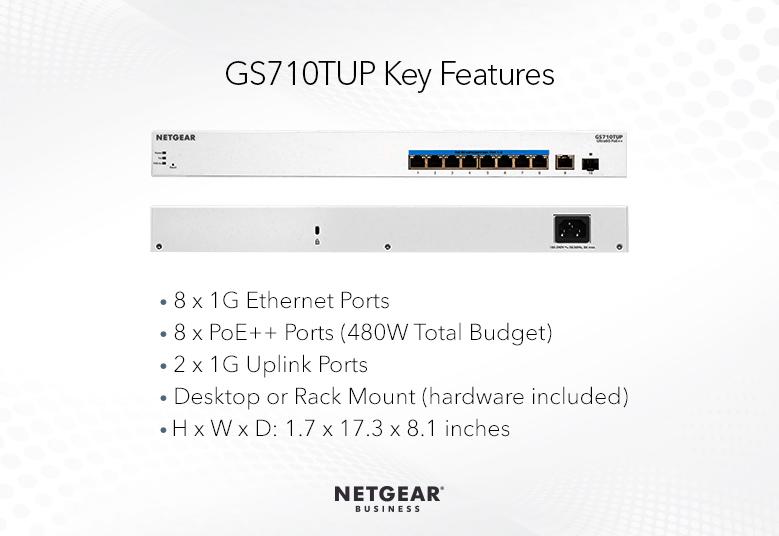

Features
ETHERNET PORT CONFIGURATION: 10 Gigabit ports
POWER-OVER-ETHERNET: 4 Ultra60 PoE++ ports (up to 60W/port) and 4 PoE+ ports with 480W total power output
FLEXIBILITY FROM UPLINK PORTS: 1 x 1G copper port and 1 x 1G SFP port

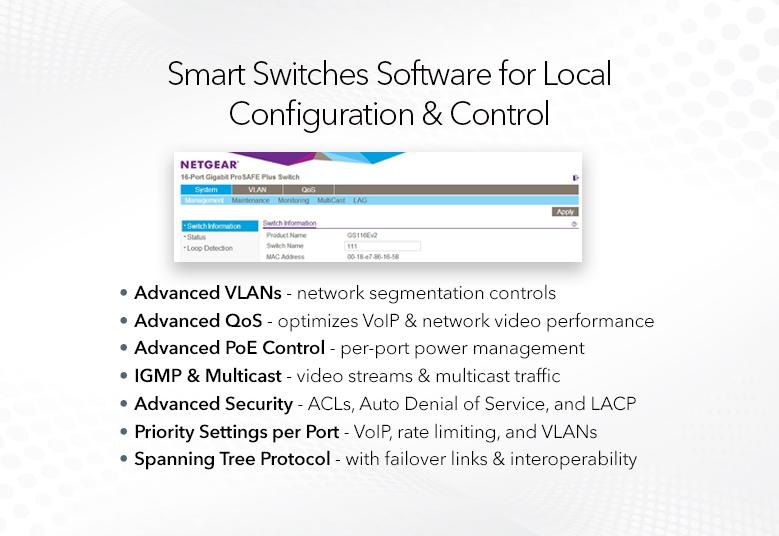

ADVANCED CONFIGURATION & CONTROL: Management software with easy-to-use GUI interface offers refined control for secure setup, access, and Cloud/Remote Insight management activation.
VERSATILE MOUNTING OPTIONS: Supports desktop, wall-mount, ceiling-mount or rackmount placement, and includes all the necessary mounting hardware in the box
FANLESS DESIGN: completely silent operating at your home office or business environment.
PROSAFE LIMITED LIFETIME PROTECTION: Covered by an industry-best Lifetime Limited Hardware Warranty, Next Business Day Replacement and 10/7 chat with a NETGEAR expert
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.
Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues
Essential IPv4 L3 static routing (no resiliency, no load balancing)
Assignment Auto-VoIP VLAN, Auto-voice VLAN, Auto-video VLAN
IGMP and MLD snooping
Advanced Security IPv6 for management, QoS and ACLD
HCP L2 relay

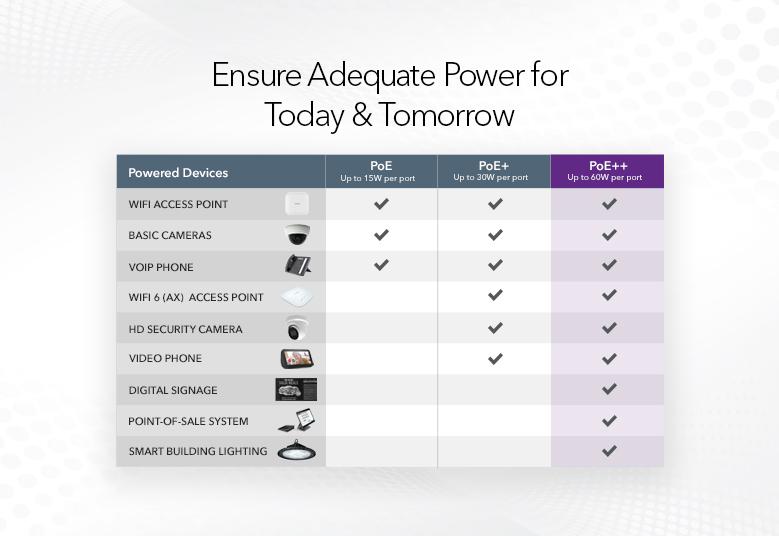

Powerful PoE++ installations with PoE budgets up to 480W, a compact size, uninterrupted PoE, and reliable performance, all at affordable prices
Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port
Connections of higher power required devices, such as 802.11AX wireless access points, Smart building lighting, Audio Speakers and Pan-Tilt-Zoom cameras
Technical Specifications
- Dimensions : 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in)
- Weight : 2.99kg (6.59lb)
- Product name : NETGEAR 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Rackmount Switch with 1 SFP and 1 Copper Uplink (GS710TUP)
- Speed : Gigabit
- Number of Ports : 10
- PoE ports/Max power output : 8 PoE++ ports with up to 60W per port (also supportss Pre IEEE 802.3bt PoE standard power devices) total PoE power budget 480W
- Energy Efficient Ethernet Support : Yes
- Jumbo frame support : 10,000 Bytes
- MAC table size : 8K
- Packet buffer size : 4.1 Mbit
- PoE budget : Up to 480W
- Warranty: NETGEAR Smart Managed Pro switches include ProSAFE® LIFETIME Hardware Warranty
- LIFETIME Next Business Day (NBD) Replacement, LIFETIME Technical Chat online support, and 90 days free Technical Phone support.
- Support
*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see https://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller.
