Smart w/ optional Cloud (GS752TPv2)
48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP Ports (380W)
Smart w/ optional Cloud (GS752TPv2)
48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP Ports (380W)
Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

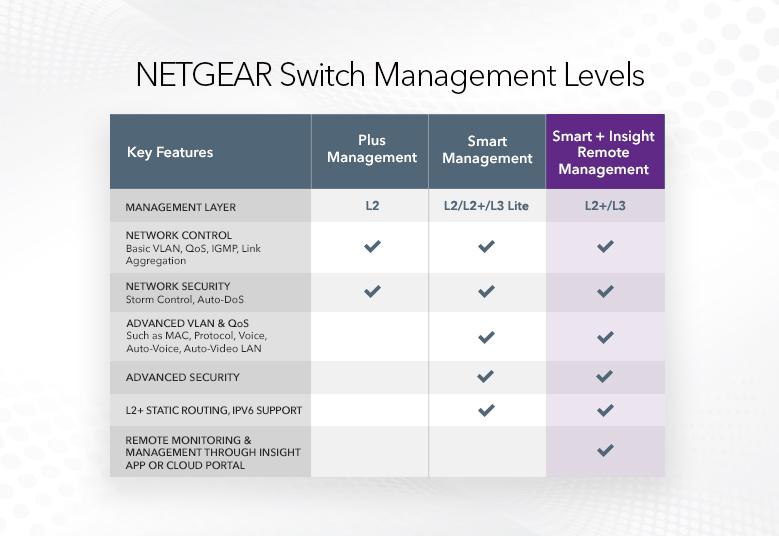

Switches with Essential L2/L2+ Features for SMB Networks
Powerful L2 and L2+/Layer 3 Lite features, great PoE functionality, and enhanced performance and usability optimized for network efficiency, operational cost savings, and ease of management. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value.
Smart IT, not Big IT

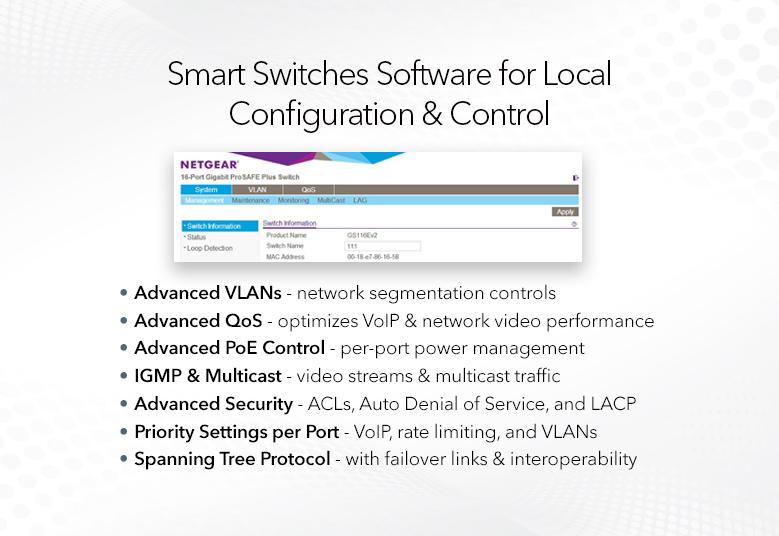

Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment
Designed for Converged Networks, Big or Small
PoE and PoE+ Support available for all configurations, auto-Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
Build a Future-Proof Network with NETGEAR
Future-proof with features like: VLANs, Access Control List, L3 Lite static routing, Multicast Groups, IPv6, QoS, Energy Efficient Ethernet (IEEE 802.3az)
Features
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
Switch Management
Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
Security
MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions (except FS728TLP)
TLS session (except FS728TLP)
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)
Multicast Efficiency
IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping
Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client (except FS728TLP)
DHCP clients
DHCP snooping (except FS728TLP)
Ping and traceroute client (except FS728TLP)
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

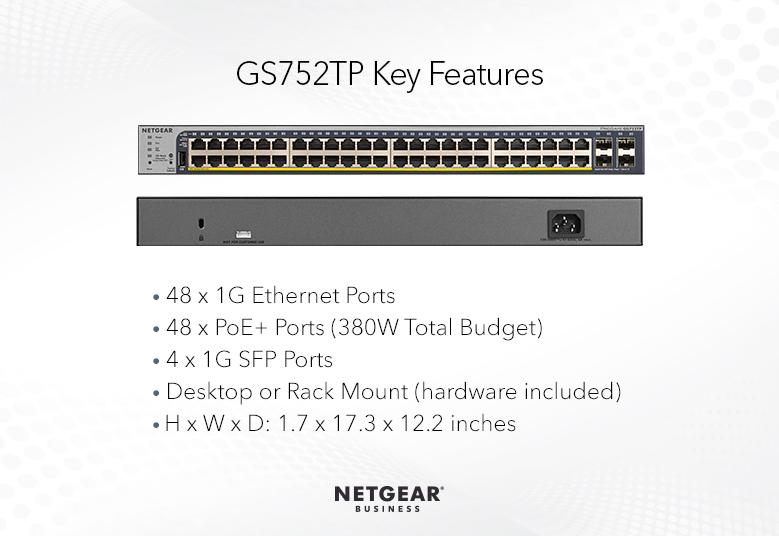

Technical Specifications
- Weight (kg) : 4.93 kg
- Dimensions (WxDxH) mm : 440 x 310 x 43.2 mm
- Model Description : 48-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 4 SFP Ports (GS752TPv2)
- Management : Insight Remote/Cloud Manageable with 1-Year Insight subscription included
- 10/100Mbps ports : N/A
- Gigabit ports : 48
- SFP ports : 4
- Number of PoE ports : 48
- PoE+ (802.3at) : 48
- Total PoE Power budget (Watts) : 380W
- Max MAC entries : 16K
- Buffer size : 1.5MB
- VLAN (Number Supported) : 256
- VLAN routing : Yes
- Dynamic VLAN assignment : Yes
- MLD Snooping : Yes
- Static route : 32
- Host ARP table : 512
- EEE : Yes
- DoS Prevention : Yes
- Internal/External : Internal 100-240VAC 50-60Hz
- Max consumption (Watts) : 446W
- FAN : 2
- Acoustic Noise Level @25C (dBA) : 36.94
- Operating Temperature : 0° to 50° C
- MTBF : 1,737,411 hours
- ProSupport: CAT 1
- Create an account at my.netgear.com, log in and purchase a ProSupport contract.
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
