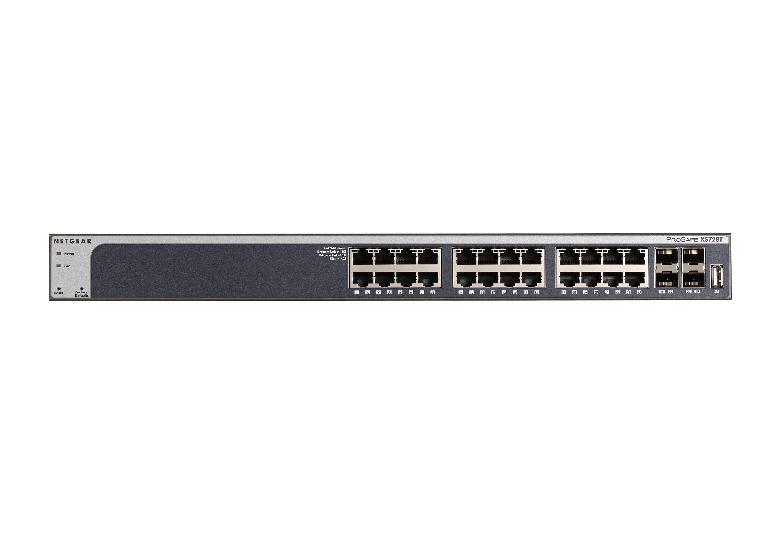

10-Gigabit Smart Switch Series (XS728T)
24-Port 10-Gigabit Ethernet Smart Switch with 4 Dedicated SFP+ Ports
10-Gigabit Smart Switch Series (XS728T)
24-Port 10-Gigabit Ethernet Smart Switch with 4 Dedicated SFP+ Ports
Take your network beyond reliability. With 10G, get high bandwidth perfect for sharing, collaborating, editing and streaming. 4 x 10Gigabit SFP+ uplink flexibility
Features
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
Switch Management
Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
Security
MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)
Multicast Efficiency
IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping
Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
Intuitive Control
Easy-to-use software GUI lets you access, secure setup, and SNMP (NMS300) management
Uplink Flexibility
4 Dedicated SFP+ 10G fiber ports for 10G-capable core or aggregation switches.
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Comprehensive L2+/Layer 3 Lite Features
The 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility.
Technical Specifications
- Weight (kg) : 5.04 kg (11.11 lb)
- Dimensions (WxDxH) mm : 440 x 310 x 43 mm ( 17.3 x 12.2 x 1.7 in)
- Gigabit ports : 8
- 10-Gigabit copper ports : 24 10GBASE-T copper
- SFP ports : 4 SFP+ 10GBASE-X 10G fiber ports (dedicated)
- Max MAC entries : 8K
- Buffer size : 3MB
- MAC address database size : 16K
- VLAN (Number Supported) : 512
- Number of LAGs & number of members : 12 LAGS with max 8 members in each LAG (LACP)
- Number of priority queues : 8
- Access Control Lists (ACLs) : 164 shared for MAC, IP and IPv6 ACLs
- IPv4 Static routes : 64
- IPV6 Static routes : 64
- Power supply : Internal 100-240VAC 50-60Hz
- Max power consumption (Watts) : 134.9 W
- VLAN routing : Yes
- Dynamic VLAN assignment : Yes
- MLD Snooping : Yes
- Static route : Yes (32)
- Host ARP table : 512 ARP
- EEE : Yes
- DoS Prevention : Yes
- Internal/External : External DC 54V 1.25A
- Max consumption (Watts) : 15.1W
- FAN : 4
- Acoustic Noise Level @25C (dBA) : 29.1 dBA
- Operating Temperature : 0° to 50°C (32° to 122°F)
- MTBF (@ 25° C) : 514,977 hours
- Electromagnetic compliance (A or B) : Class A
- MTBF : 1,200,041 hrs (137 yrs)
- This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
- Support
XS728T Datasheet (PDF)
