Unlock the Potential of your 10G/Multi-Gig devices GS110MX GS110MX-100NAS GS110MX-100NAS

Gigabit with 10-Gigabit/Multi-Gigabit (GS110MX) armor

8-Port Gigabit Ethernet Unmanaged Switch with 2-Port 5-Speed 10-Gigabit/Multi-Gigabit armor

Gigabit with 10-Gigabit/Multi-Gigabit (GS110MX)

8-Port Gigabit Ethernet Unmanaged Switch with 2-Port 5-Speed 10-Gigabit/Multi-Gigabit armor

Unlock the Potential of your 10G/Multi-Gig devices

8-port | 2-port 5-Speed 10-Gigabit Multi-Gig | GS110MX

5-port | 5-speed | 2.5G | Unmanaged Switch | XS505M

8-port | 5-speed | 2.5G | Unmanaged Switch | XS508M

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

1 Gigabit Switch vs. 10G/Multi-Gig Speed Test

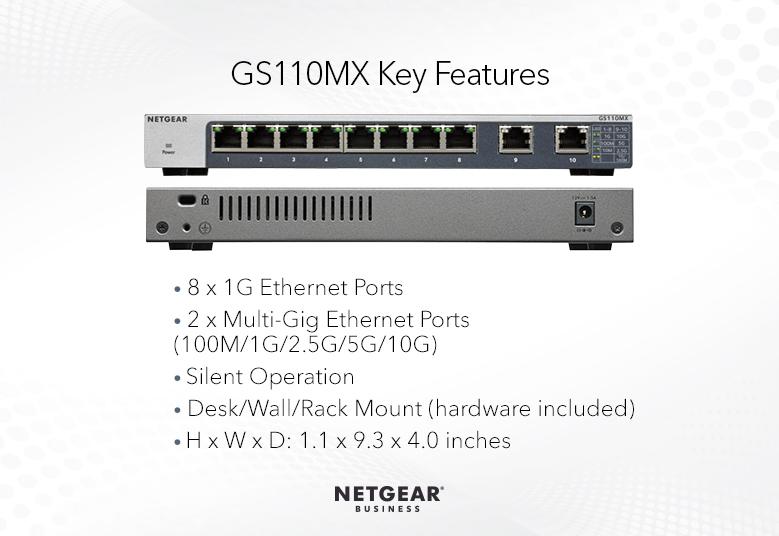

8 x 1G Copper Ethernet plus 2 x 5-speed Copper Ethernet that supports Fast Ethernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit, and 10-Gigabit connectivity

Gives the exact speed required, no downgrade. Automatically detects which speed is needed by the connected device and provides the adequate speed

Can be connected with regular Cat5E Ethernet cables for speeds up to 5Gb on 5-speed port, therefore reducing wiring costs and hassle to upgrade to Cat6a or better cabling

Plug-and-play, automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!

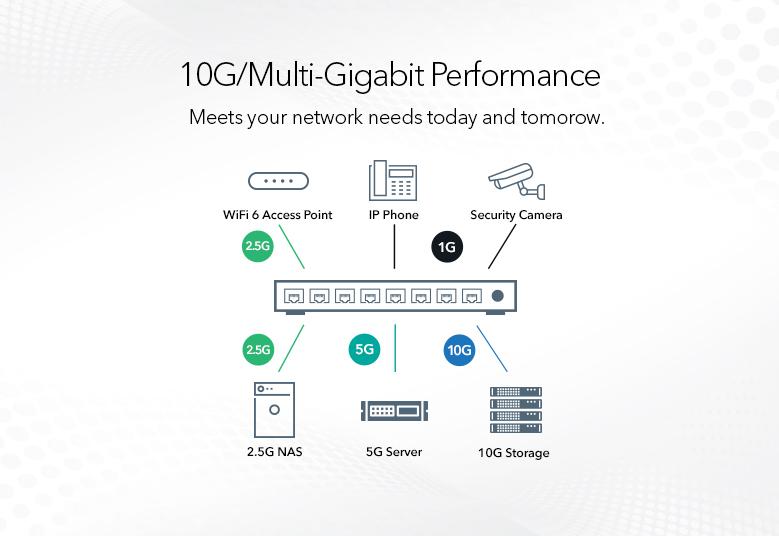

Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically

Small and silent desktop, wall mount or rackmount form factor for quiet operation - Adapts to your needs and configuration in any environment

ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert Energy efficient switches that automatically adjusts power consumption according to the link status and cable length.

The following describes the network cables you can use for the switch connections and the speeds that these cables can support, up to 100 meters (328 feet).

100Mbps with Category 5(Cat 5) or higher rated cables.

1Gbps, 2.5Gbps or 5 Gbps with Category 5e(Cat 5e) or higher rated cables.

10Gbps with Category 6A (Cat 6a) or higher rated cables

*Note: For speeds of 10 Gbps, if the cable length is shorter than 45 meters (148 feet), you can use a Cat 5e cable.
Product Datasheet

Technical Specifications

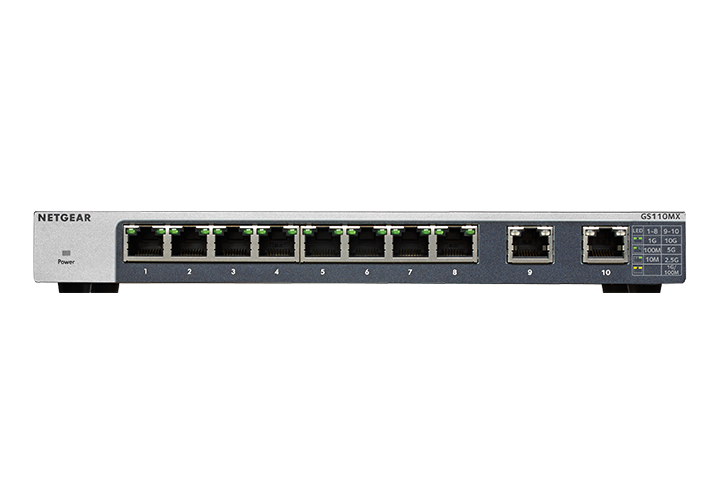

GS110MX_tech_specs_image_1

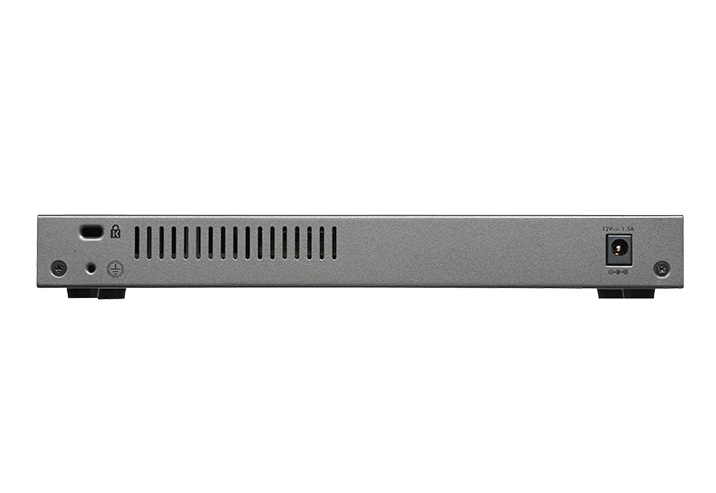

GS110MX_tech_specs_image_2
  • Dimensions (W x D x H) : 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
  • Weight : 0.74 kg (1.63 lbs)
  • 100M/1G/2.5G/5G/10G RJ-45 copper ports : 2
  • 10M/100M/1G Copper ports : 8
  • Form Factor : Desktop/Wall-Mount/Rackmount
  • Packet buffer memory : 128KB
  • Bandwidth : 56Gbps
  • MAC Address database size : 16K
  • Number of priority queues : 8
  • Jumbo frame support : Up to 9K packet size
  • Fan(s) : 0 ( Fanless)
  • IEEE 802.3az (Energy Efficient Ethernet) : Yes
  • Max power consumption (Watts) : 13.2W
  • LEDs : Power, Speed, Link/Activity
  • Acoustic noise level @ 25° C (dBA) : 0
  • Operating temperature : 0° to 40° C
  • Electromagnetic compliance (A or B) : B

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
