  • 24 x Gigabit Ethernet ports
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Desktop, wall or rack mount
 GS524 GS524-300NAS GS524-300NAS

Gigabit Unmanaged Switch Series (GS524) armor

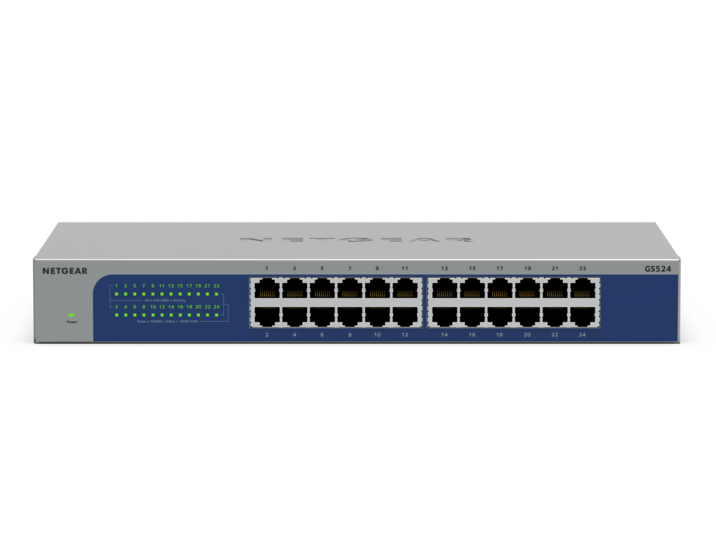

24-Port Gigabit Ethernet Unmanaged Switch armor

Gigabit Unmanaged Switch Series (GS524)

24-Port Gigabit Ethernet Unmanaged Switch armor

  • 24 x Gigabit Ethernet ports
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Desktop, wall or rack mount

Looking for the previous version JGS524? Please see the Helpful Links in the Tech Specs for more information.

FIND A RETAILER

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Features

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance
Product Datasheet

Technical Specifications

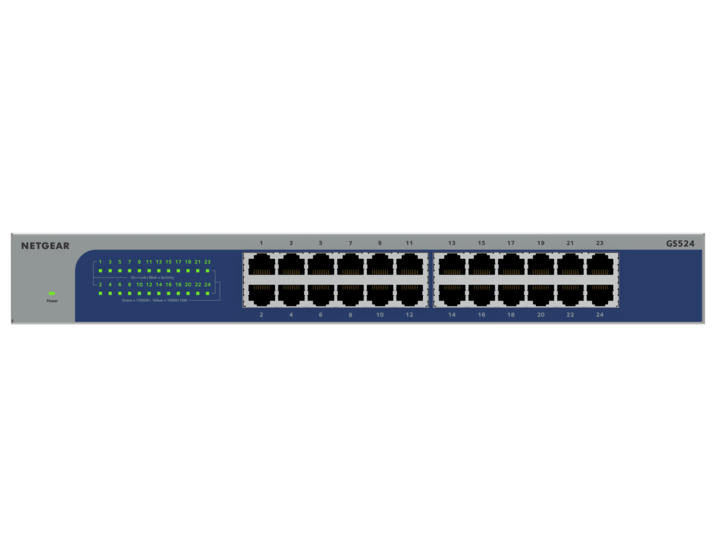

GS524v3_tech_specs
GS524v3_tech_specs
  • Dimensions (WxDxH) : 328 x 169 x 43 mm (12.9 x 6.7 x 1.7in)
  • Weight : 1.47kg (3.24lb)
  • Speed : 10/100/1000Mbps Gigibit Ethernet
  • Number of Ports : 24
  • PoE ports : n/a
  • Total PoE Budget : n/a
  • Loop Detection : n/a
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9KB
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 8K
  • Packet buffer size : 512.5KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 12W
  • Operating Temperature : 0 to 50° C
  • MTBF (hours) : 1,016,877 hrs
  • FCC Class : A
