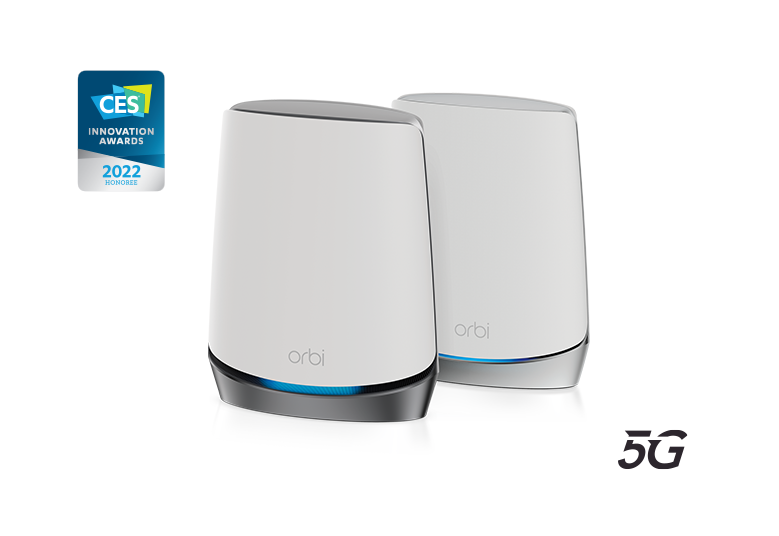

5G WiFi Mesh System, AX4200 (NBK752)
Orbi 5G Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 1 Satellite
5G WiFi Mesh System, AX4200 (NBK752)
Orbi 5G Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 1 Satellite

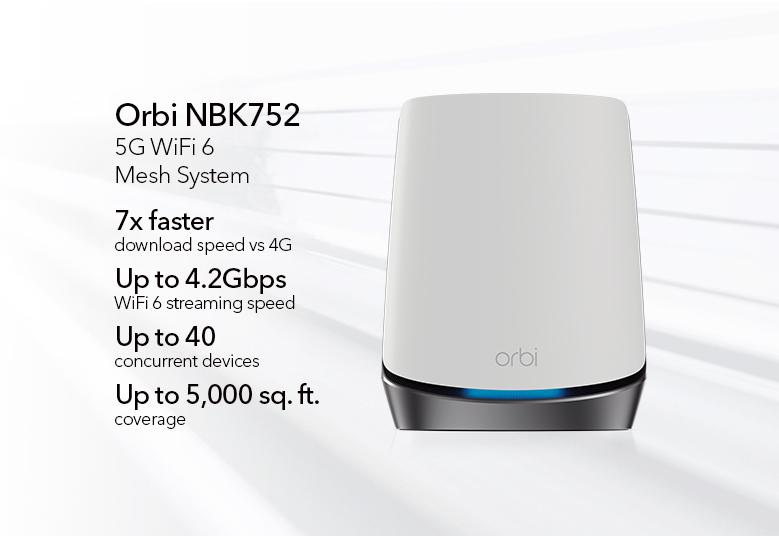

The Orbi 5G mesh system brings mobile 5G technology into your home and delivers up to 1 gigabit internet speed. Cover up to 5,000 sq. ft. with blazing-fast, reliable WiFi 6 technology providing speeds of up to 4.2Gbps for up to 40 devices. Stream, browse and work uninterrupted throughout your home.
UP TO 1 GIGABIT INTERNET SPEED
Mobile 5G technology delivers up to 1 gigabit internet speed† to your home. Just add a 5G Nano SIM card and Bring Your Own Device data plan from your provider.
†Actual speed depends on 5G provider coverage to your home. Please check 5G availability in your area.
ENGINEERED FOR BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn’t degrade across the house.

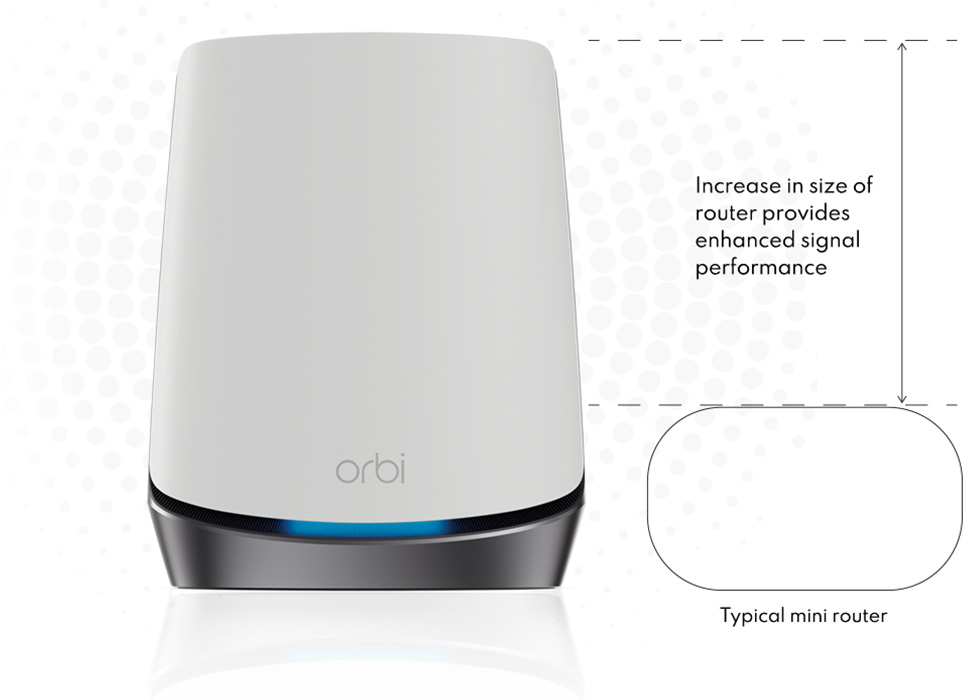

THE BEST COVERAGE, PERIOD.

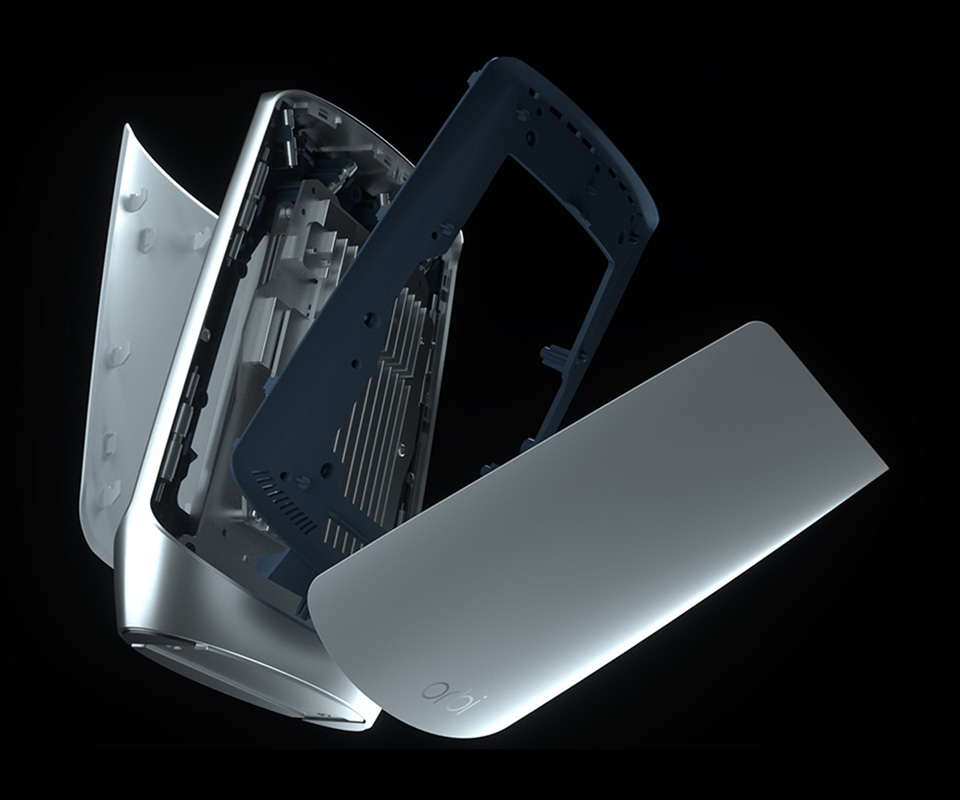

Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

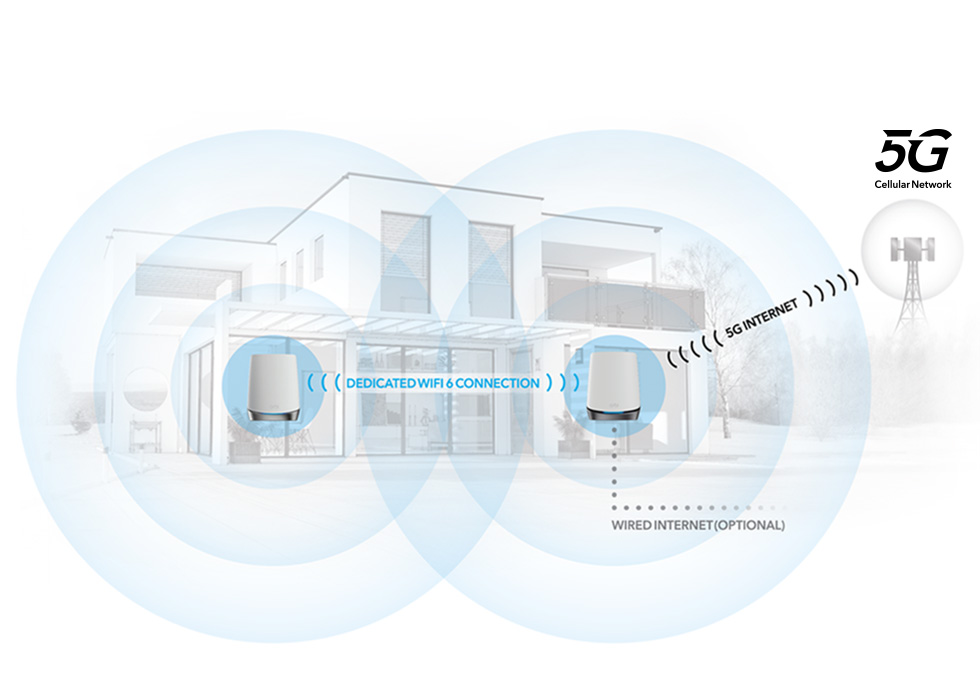

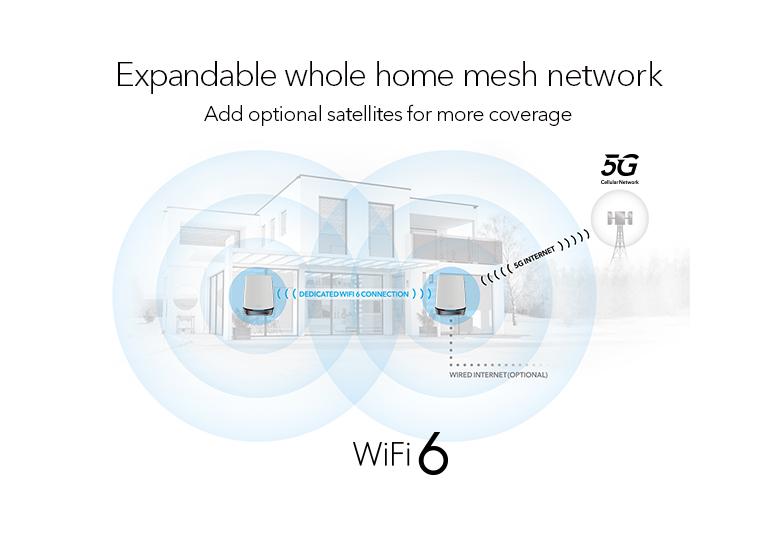

EXPANDABLE AS YOUR NEEDS GROW
Easily add WiFi coverage with additional satellites – each expands coverage by 2,500 sq. ft. (sold separately)
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
EASY SETUP
- Insert 5G SIM card from
mobile provider into
Orbi Router. - Download the Orbi app
and follow instructions. - Place and power up Orbi
Satellite in another part of
your home to expand WiFi
coverage.

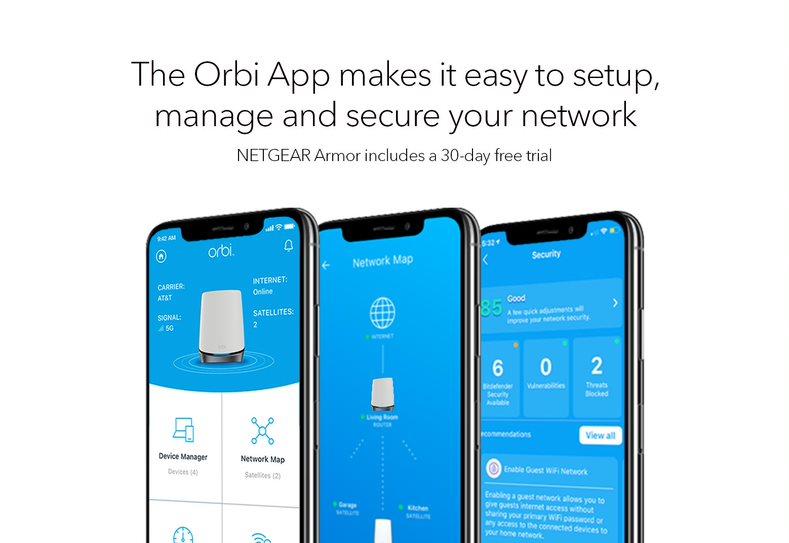

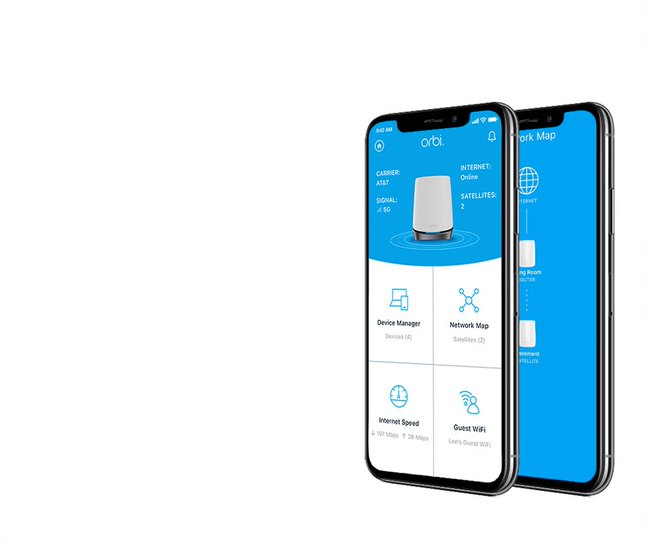

TAP. MANAGE.
CONTROL.

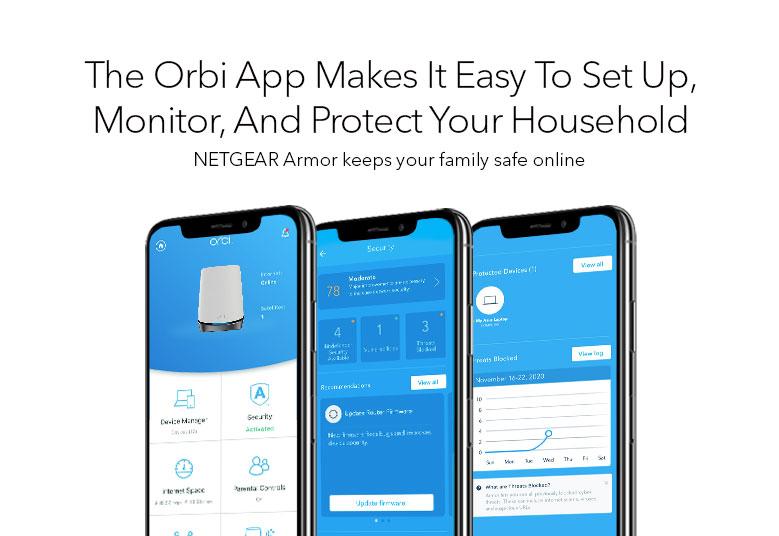

Orbi App
Just tap to manage your
network, set up guest
WiFi access, pause and
resume WiFi for connected
devices, set parental
controls, monitor data usage,
and more.
Technical Specifications

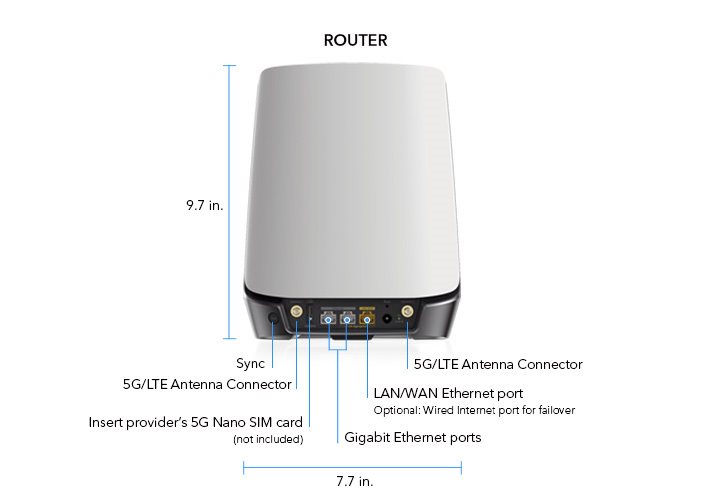

- NBR750 : Dimensions: 9.7 x 7.7 x 3.4in
- Weight: 2.75lb
- RBS750 : Dimensions: 9.1 x 7.2 x 2.8in
- Weight: 1.9lb
- 4G LTE Bands : B2, 4, 5, 7, 12, 13, 14, 25, 26, 29, 30, 41, 48, 66, 71
- 5G Bands : n2, n5, n25, n41, n48, n66, n71, n77
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands MU-MIMO capable for simultaneous data streaming to multiple devices
- Processor : Powerful Quad-Core 1.4GHz processor

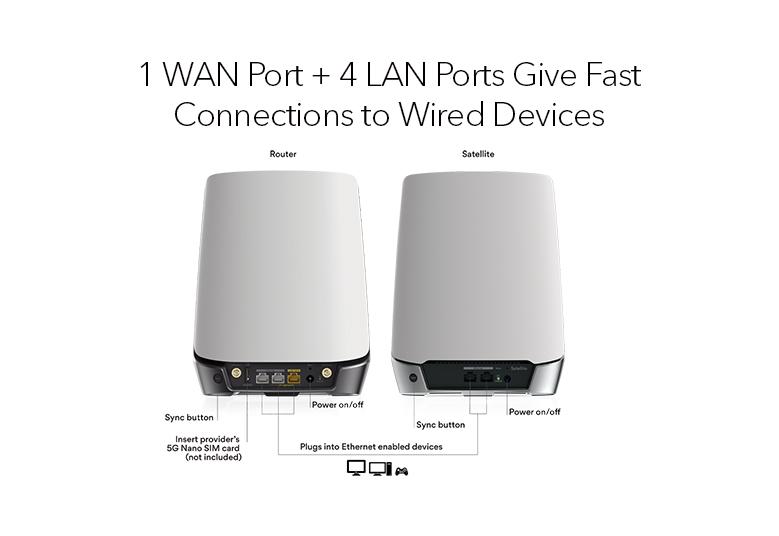

- Ports — Orbi 5G LTE Router : Two (2) 10/100/1000Mbps Gigabit Ethernet LAN ports
- One (1) 1Gbps Gigabit Ethernet WAN port
- Ports — Orbi Satellite : Two (2) 10/100/1000Mbps Gigabit Ethernet LAN ports
- Router Memory : 512MB NAND Flash and 1GB RAM
- Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
- This product is backed by a NETGEAR limited 1-year Hardware Warranty. 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
- WARRANTY
- Support
- Extend your warranty & technical support within 90 days of product purchase [US only].
- †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
- One (1) Orbi AX4200 5G WiFi 6 Router (NBR750)
- One (1) Orbi Satellite (RBS750)
- One (1) 12V/3.5A power adapter (NBR750)
- One (1) 12V/2.5A power adapter (RBS750)
- One (1) 2m Ethernet cable
- Quick Start Guide
