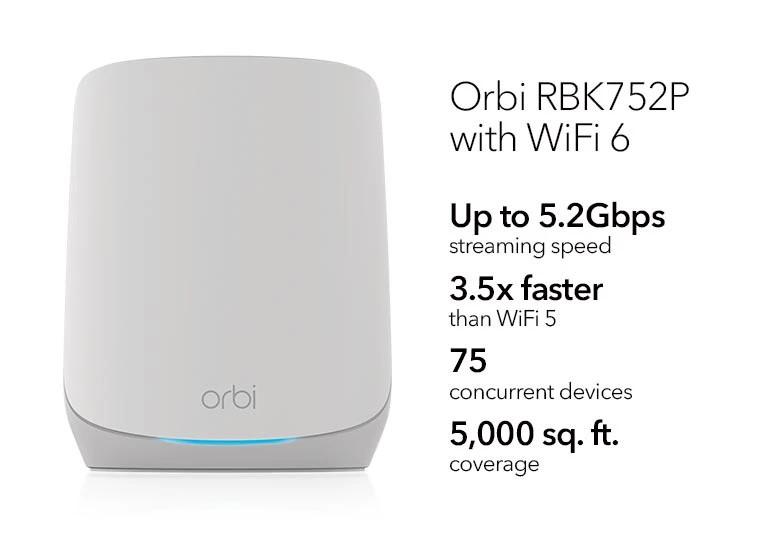

AX5200 WiFi Mesh System (RBK752P)
Orbi 750 Series Tri-Band WiFi 6 Mesh System, 5.2Gbps, Router + 1 Satellite
AX5200 WiFi Mesh System (RBK752P)
Orbi 750 Series Tri-Band WiFi 6 Mesh System, 5.2Gbps, Router + 1 Satellite
Break free from limitations with strong, reliable, and lightning-fast WiFi in every room of your home. Cover up to 5,000 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 5.2Gbps for over 75 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with NETGEAR ArmorTM all-in-one internet security.
Product overview
Tri-Band
WiFi for maximum speeds to all devices
Up to
5,000 sq. ft.
WiFi coverage
Up to
5.2Gbps
maximum WiFi speed
Up to
75
concurrent devices

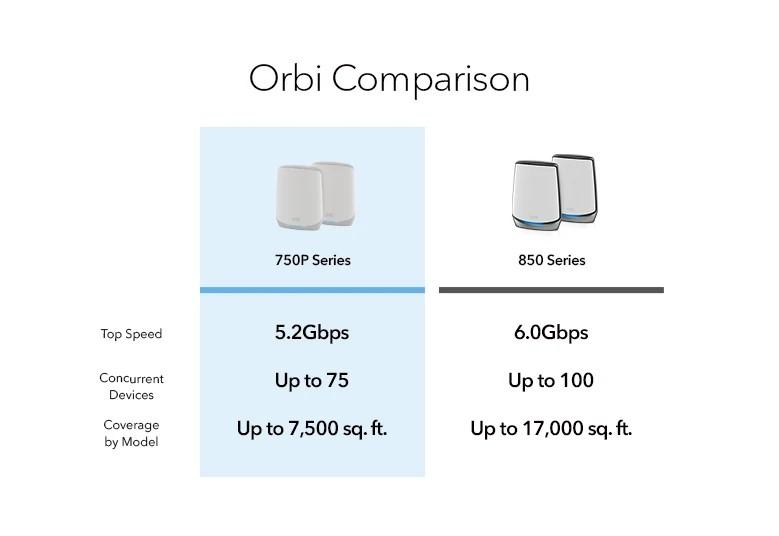

ORBI FAMILY
COMPARISON
![](/media/760-series_tcm148-138218.jpg)
750P Series
WiFi: WiFi 6
Speed: up to 5.2Gbps
Devices: up to 75
Coverage: up to 7,500 sq.ft.
![](/media/850-series_tcm148-138219.jpg)
850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.
![](/media/960-series_tcm148-138220.jpg)
960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.
![ORBI-PNL-mobile](/media/ORBI-PNL-mobile_tcm148-155413.webp)
![ORBI-PNL-desktop](/media/ORBI-PNL-desktop_tcm148-155412.webp)
UNSTOPPABLE STREAMING
Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
![8k TV Premium Orbi LP](/media/4K_Room_R2_960X800_tcm148-123431.jpg)
![](/media/RBK760_EXPLODED-updated_blk_v1_tcm148-143051.jpg)
ENGINEERED FOR
BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.
THE BEST COVERAGE.
PERIOD.
Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.
![RBK763S-P4-Mobile](/media/RBK763S-P4-Mobile_tcm148-138433.jpg)
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
![](/media/orbi_rbk763_4_mobile_usa_tcm148-137464.jpg)
![](/media/orbi_rbk763_4_desktop_usa_tcm148-137463.jpg)
ADD SATELLITES TO
MEET YOUR NEEDS
Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).
![netgear orbi configurator](/media/full_asset_orbi-configurator_mobile_webPtest_tcm148-152687.webp)
![netgear orbi configurator](/media/full_asset_orbi-configurator_20220413_v1_webPtest_tcm148-152686.webp)
Which Orbi is right for you?
Answer a few questions and we'll find the perfect solution for your home
![netgear armor](/media/common-armor-mobile-20220627_webPtest_tcm148-152685.webp)
![netgear armor](/media/common-armor-20220627_webPtest_tcm148-152760.webp)
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
![WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind.](/media/SPC_PS_LP_swimlanes_02_webPtest_tcm148-152702.webp)
![WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind.](/media/SPC_PS_LP_swimlanes_04_webPtest_tcm148-152703.webp)
CONNECTED KIDS ARE PROTECTED TOO
Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control
Compare Similar Products
![]() RBK753P |
![]() RBK863SB |
![]() RBKE963B |
|
---|---|---|---|
Price |
Price |
Price |
Price |
WiFi 6 / 6E |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6E |
WiFi Bands |
WiFi Bands Tri-Band |
WiFi Bands Tri-Band |
WiFi Bands Quad-Band |
Max WiFi Speed |
Max WiFi Speed 5.2Gbps |
Max WiFi Speed 6 Gbps |
Max WiFi Speed 10.8 Gbps |
Coverage |
Coverage 7,500 sq. ft. |
Coverage 8,000 sq. ft. |
Coverage 9,000 sq ft |
# of Devices |
# of Devices 75 |
# of Devices 100 |
# of Devices 200 |
Internet Port Speed |
Internet Port Speed up to 1 Gig |
Internet Port Speed up to 10 Gig |
Internet Port Speed up to 10 Gig |
Dedicated WiFi Backhaul |
Dedicated WiFi Backhaul Dedicated 5GHz 2x2 (160MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Fronthaul WiFi |
Fronthaul WiFi 5GHz: 2x2 (160MHz); 2.4GHz: 2x2 |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
Fronthaul WiFi 6GHz: 4x4 (160MHz), 5GHz: 4x4 (80MHz), 2.4GHz: 4x4 |
Total Wired Ethernet Ports (Router) |
Total Wired Ethernet Ports (Router) One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) |
Total Wired Ethernet Ports (Each Satellite) Two (2) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
![](/media/orbi_rbk763_7_easysetup_usa_tcm148-137465.jpg)
EASY SETUP
-
Download the Orbi app
and follow instructions. -
Connect Orbi Router to
your modem and power. -
Place and power Orbi Satellite
in another part of your home.
Technical Specifications
![RBK752P_BackDiagram_HiRes_landscape_1251x508](/media/RBK752P_BackDiagram_HiRes_landscape_1251x508_tcm148-156263.webp)
![RBK752P_BackDiagram_345x619](/media/RBK752P_BackDiagram_345x619_tcm148-156262.webp)
Product specifications
-
Orbi Router (RBR750P)One (1)
-
Orbi Satellites (RBS750P)One (1)
-
2m Ethernet cableOne (1)
-
power adaptersTwo (2)
-
Quick Start GuideOne (1)
-
Height8.3 in (210 mm)
-
Width6.6 in (167 mm)
-
Depth2.5 in (63 mm)
-
Weight1.6 lb (0.72 kg)
-
Overall WiFi CoverageUp to 5,000 sq. ft.
-
RequirementsHigh-speed internet connection to existing modem or gateway
ROUTER
-
WiFi Coverage2,500 sq. ft.
-
SpeedAX5200 (400 + 2400 + 2400Mbps†)
-
AX5200 Tri-Band WiFi2.4GHz (400Mbps†) + 5GHz (2400Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
-
ProcessorDual-core 1GHz processor
-
Memory4GB eMMC NAND flash and 1GB RAM
-
AntennaFour (4) high-performance internal antennas with high-power amplifiers
-
Ports
One (1) 1 Gigabit Ethernet WAN port
Three (3) 1 Gigabit Ethernet LAN ports
SATELLITE
-
WiFi Coverage2,500 sq. ft. (each)
-
SpeedAX5200 (400 + 2400 + 2400Mbps†)
-
AX5200 Tri-Band WiFi2.4GHz (400Mbps†) + 5GHz (2400Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
-
AntennaFour (4) high-performance internal antennas with high-power amplifiers
-
Ports
Two (2) 1 Gigabit Ethernet LAN ports
-
Orbi AppFor easy installation and management
-
Guest WiFi NetworkSeparate & secure Internet access for guests
-
WiFi SecurityStandards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
-
NETGEAR Armor™
Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft. 1
Learn More -
NETGEAR Smart Parental Controls™
Easily manage your kids' time and accessibility online across their connected devices.2
Learn More
-
NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
-
90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
![Sign up for news, tips and offers and receive latest updates on your favorite NETGEAR Orbi products](/media/Orbi-Subscription-Image-v4_tcm148-143463.jpg)
![Sign up for news, tips and offers and receive latest updates on your favorite NETGEAR Orbi products](/media/Orbi-Subscription-Image-v4_tcm148-143463.jpg)
Footnotes:
† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.2Gbps wireless speeds achieved when connecting to other 802.11ax 5.2Gbps devices.
1 NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor.
2 Smart Parental Controls is not available in all regions and countries. Visit www.netgear.com/NETGEAR-SPC-availability for availability. NETGEAR Smart Parental Controls™ Premium requires a paid subscription after the 30-day free trial. Learn more at www.netgear.com/spc.
