The complete mesh WiFi solution for your smart home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR ArmorTM all-in-one internet security.

RBK753 RBK753-100NAS RBK753-100NAS

AX4200 WiFi Mesh System (RBK753) armor

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 2 Satellites armor

AX4200 WiFi Mesh System (RBK753)

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 2 Satellites armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

The complete mesh WiFi solution for your smart home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR ArmorTM all-in-one internet security.

NEXT-GEN ORBI NOW AVAILABLE

The Orbi 770 Series - Flawless, whole-home WiFi 7.

RBK863SB
SHOP NOW
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

UNSTOPPABLE STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
8k TV Premium Orbi LP

8k TV Premium Orbi LP

ENGINEERED FOR BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band Mesh technology. The result is faster WiFi performance that doesn't degrade across the house.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
netgear orbi configurator netgear orbi configurator

Which Orbi is right for you?


Answer a few questions and we'll find the perfect solution for your home

netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind. WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind.

With NETGEAR Smart Parental Controls, Manage your kids  internet time, Monitor their activity, Build healthy internet  habits together

CONNECTED KIDS ARE PROTECTED TOO

Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control

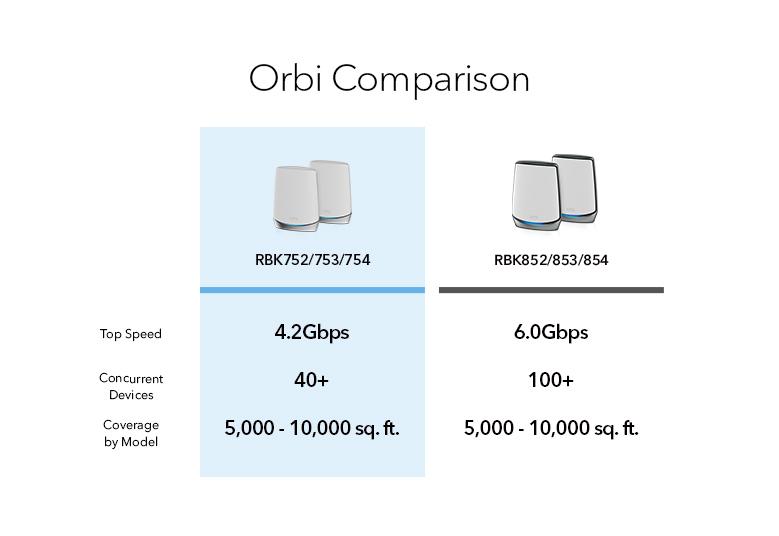

Compare Similar Products

RBK753_comparison

RBK753
small_orbiv2

RBK763
Main_RBK863SB

RBK863SB

Price

Price

Price

Price

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi Bands

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

Max WiFi Speed

Max WiFi Speed

4.2 Gbps​

Max WiFi Speed

5.4Gbps

Max WiFi Speed

6 Gbps​

Coverage

Coverage

7,500 sq. ft.

Coverage

7,500 sq. ft.

Coverage

8,000 sq. ft.

# of Devices

# of Devices

40

# of Devices

75

# of Devices

100

Internet Port Speed

Internet Port Speed

up to 1Gbps

Internet Port Speed

up to 1Gbps

Internet Port Speed

up to 10Gbps

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4​ (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 2x2 (160MHz)

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Fronthaul WiFi

Fronthaul WiFi

5GHz: 2x2 (80MHz); ​ 2.4GHz: 2x2

Fronthaul WiFi

5GHz: 2x2 (160MHz); ​ 2.4GHz: 2x2​

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port - Orbi Satellite (each) Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

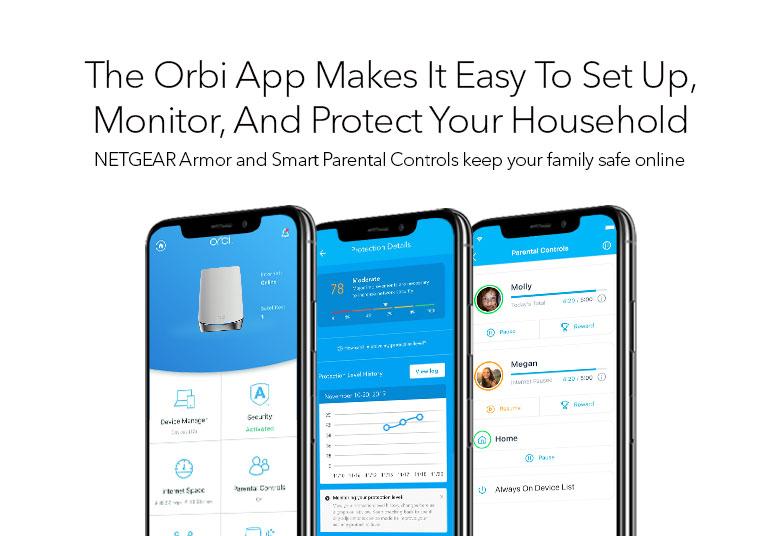

Netgear Orbi App

TAP. MANAGE.
CONTROL.



Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

Technical Specifications

Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

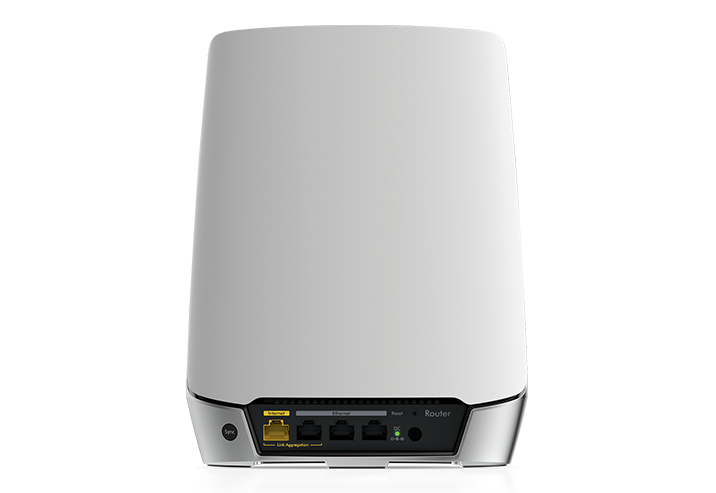

  • Orbi Router (AX4200) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb

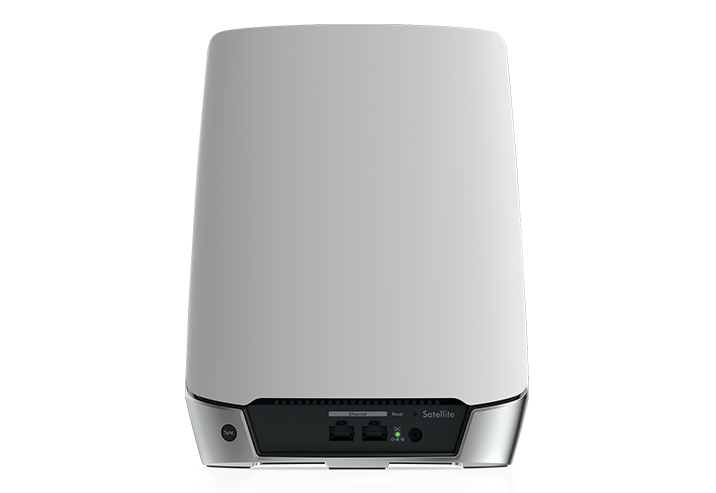

  • Orbi Satellite (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb each
  • WiFi Coverage : 7,500 sq. ft.
  • Orbi Router (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices.
  • Processor : Powerful Quad-Core 1.4GHz processor
  • AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Ports : One (1) Gigabit WAN port and three (3) LAN Gigabit Ethernet ports
  • Memory : Router: 512MB NAND Flash and 1GB RAM
  • Works with Amazon Alex and the Google Assistant : Yes
  • Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
  • Support
  • One (1) Orbi Router (RBR750)
  • Two (2) Orbi Satellites (RBS750)
  • One (1) 2m Ethernet cable
  • Three (3) 12V/2.5A power adapters
  • Quick start guide
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

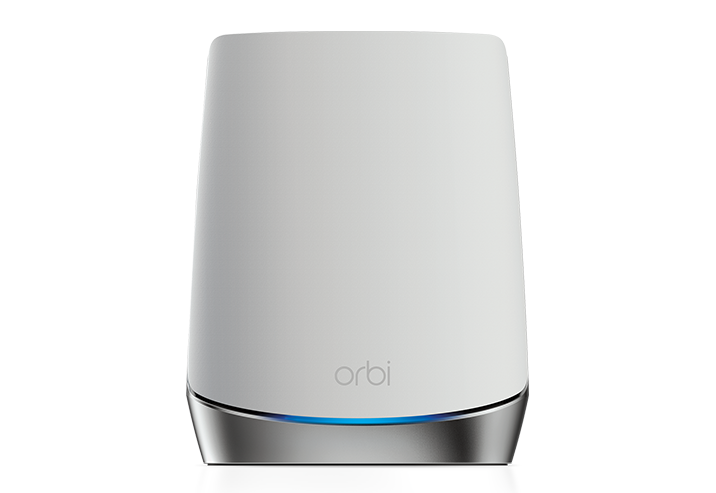

  • Orbi Router (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb
  • Orbi Satellite (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb each
  • Orbi Satellite (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
  • MU-MIMO : MU-MIMO capable for simultaneous data streaming to multiple devices
  • AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Ports : Two (2) LAN Gigabit Ethernet ports (each)
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
  • Support
  • One (1) Orbi Router (RBR750)
  • Two (2) Orbi Satellites (RBS750)
  • One (1) 2m Ethernet cable
  • Three (3) 12V/2.5A power adapters
  • Quick start guide
