Break free from limitations with strong, reliable, and lightning-fast WiFi in every room of your home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 5.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with NETGEAR ArmorTM all-in-one internet security. RBK753P RBK753P-100NAS RBK753P-100NAS

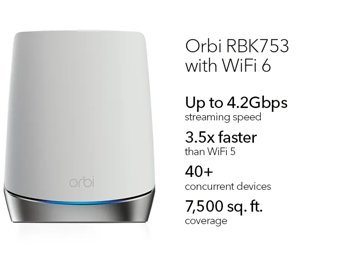

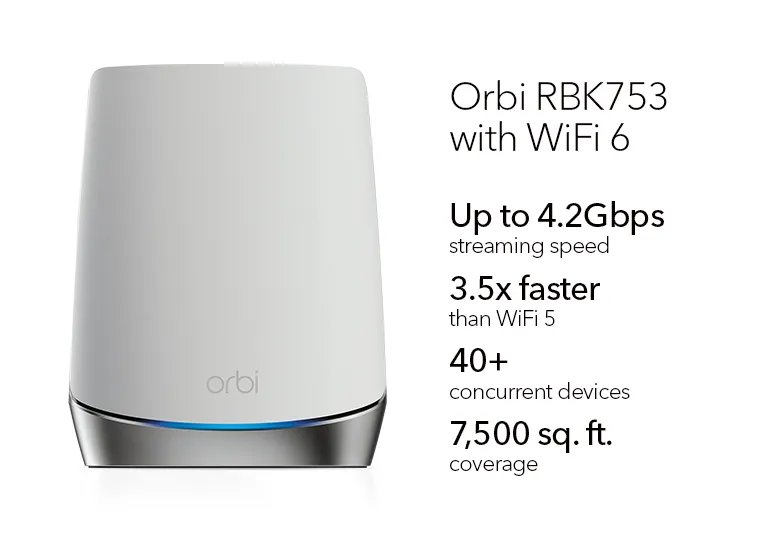

AX5200 WiFi Mesh System (RBK753P) armor

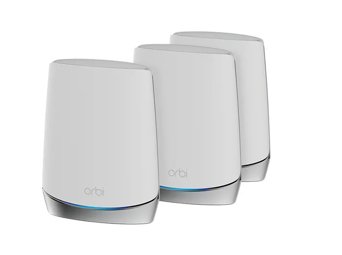

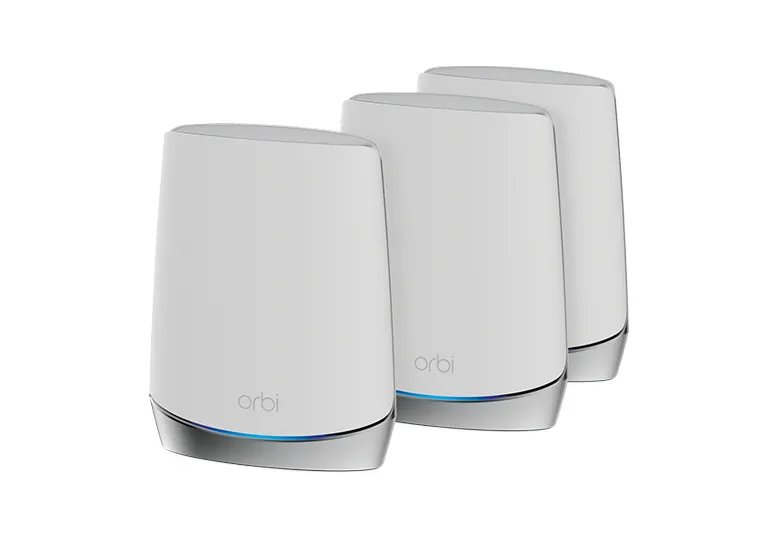

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 5.2Gbps, Router + 2 Satellites armor

AX5200 WiFi Mesh System (RBK753P)

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 5.2Gbps, Router + 2 Satellites armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Break free from limitations with strong, reliable, and lightning-fast WiFi in every room of your home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 5.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home. Keep your family and your connected devices safe from online threats with NETGEAR ArmorTM all-in-one internet security.

Product overview


Tri-Band

WiFi for maximum speeds to all devices

Up to
7,500 sq. ft.

WiFi coverage

Up to
5.2Gbps

maximum WiFi speed

Up to
75

concurrent devices

ORBI FAMILY
COMPARISON

750P Series
WiFi: WiFi 6
Speed: up to 5.2Gbps
Devices: up to 75
Coverage: up to 7,500 sq.ft.

850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.

960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.

ORBI_more_of_everything_mobile ORBI_more_of_everything_desktop

UNSTOPPABLE STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
8k TV Premium Orbi LP

ENGINEERED FOR
BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

RBK763S-P4-Mobile

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.

ADD SATELLITES TO
MEET YOUR NEEDS


Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).

netgear orbi configurator netgear orbi configurator

Which Orbi is right for you?


Answer a few questions and we'll find the perfect solution for your home

netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind. WiFi with built-in NETGEAR Smart Parental Controls keeps your family connected and protected for complete peace of mind.

With NETGEAR Smart Parental Controls, Manage your kids  internet time, Monitor their activity, Build healthy internet  habits together

CONNECTED KIDS ARE PROTECTED TOO

Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control

Compare Similar Products

small_orbiv2

RBK753P
Main_RBK863SB

RBK863SB
nbke963-wiredconnection-7a

RBKE963​B

Price

Price

Price

Price

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6E​

WiFi Bands

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

WiFi Bands

Quad-Band

Max WiFi Speed

Max WiFi Speed

5.2Gbps

Max WiFi Speed

6 Gbps​

Max WiFi Speed

10.8 Gbps​

Coverage

Coverage

7,500 sq. ft.

Coverage

8,000 sq. ft.

Coverage

9,000 sq ft​

# of Devices

# of Devices

75

# of Devices

100

# of Devices

200

Internet Port Speed

Internet Port Speed

up to 1 Gig

Internet Port Speed

up to 10 Gig

Internet Port Speed

up to 10 Gig

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 2x2 (160MHz)

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)

Fronthaul WiFi

Fronthaul WiFi

5GHz: 2x2 (160MHz); ​ 2.4GHz: 2x2​

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4

Fronthaul WiFi

6GHz: 4x4 (160MHz),​ 5GHz: 4x4 (80MHz), ​ 2.4GHz: 4x4​

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Two (2) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

TAP.
MANAGE.
CONTROL.



Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

Technical Specifications

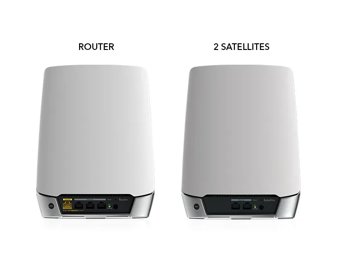

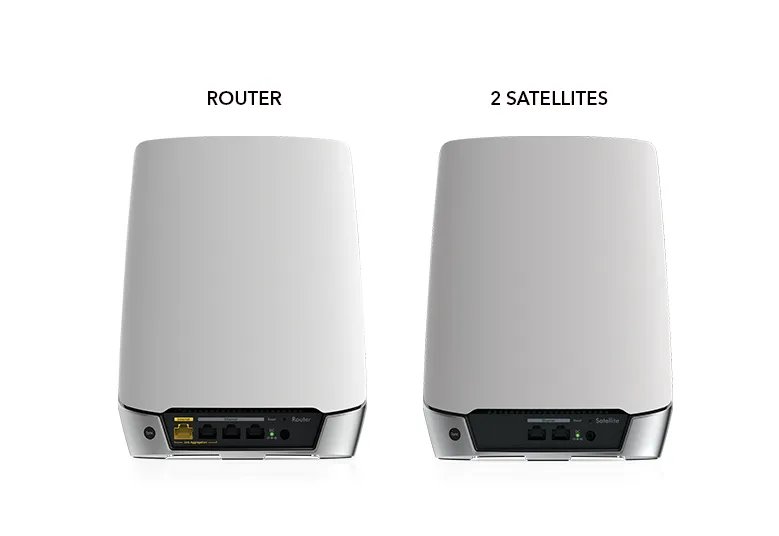

RBK752P_BackDiagram_HiRes_landscape_1251x508 RBK752P_BackDiagram_345x619

Product specifications

  • Orbi Router (RBR750P)
    One (1)
  • Orbi Satellites (RBS750P)
    Two (2)
  • 2m Ethernet cable
    One (1)
  • power adapters
    Three (3)
  • Quick Start Guide
    One (1)
  • Height
    8.3 in (210 mm)
  • Width
    6.6 in (167 mm)
  • Depth
    2.5 in (63 mm)
  • Weight
    1.6 lb (0.72 kg)
  • Overall WiFi Coverage
    Up to 7,500 sq. ft.
  • Requirements
    High-speed internet connection to existing modem or gateway
ROUTER
  • WiFi Coverage
    2,500 sq. ft.
  • Speed
    AX5200 (400 + 2400 + 2400Mbps†)
  • AX5200 Tri-Band WiFi
    2.4GHz (400Mbps) + 5GHz (2400Mbps) for WiFi devices to connect to the Internet. 5GHz (2400Mbps) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Processor
    Dual-core 1GHz processor
  • Memory
    4GB eMMC NAND flash and 1GB RAM
  • Antenna
    Four (4) high-performance internal antennas with high-power amplifiers
  • Ports

    One (1) 1 Gigabit Ethernet WAN port

    Three (3) 1 Gigabit Ethernet LAN ports

SATELLITE
  • WiFi Coverage
    2,500 sq. ft. (each)
  • Speed
    AX5200 (400 + 2400 + 2400Mbps)
  • AX5200 Tri-Band WiFi
    2.4GHz (400Mbps) + 5GHz (2400Mbps) for WiFi devices to connect to the Internet. 5GHz (2400Mbps) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Antenna
    Four (4) high-performance internal antennas with high-power amplifiers (each)
  • Ports

    Two (2) 1 Gigabit Ethernet LAN ports (each)

  • Orbi App
    For easy installation and management
  • Guest WiFi Network
    Separate & secure Internet access for guests
  • WiFi Security
    Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
  • NETGEAR Armor™

    Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft. 1
    Learn More

  • NETGEAR Smart Parental Controls™

    Easily manage your kids' time and accessibility online across their connected devices.2
    Learn More

  • NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
  • 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)

Footnotes:

Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.2Gbps wireless speeds achieved when connecting to other 802.11ax 5.2Gbps devices.

1 NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor.

2 Smart Parental Controls is not available in all regions and countries. Visit www.netgear.com/NETGEAR-SPC-availability for availability. NETGEAR Smart Parental Controls™ Premium requires a paid subscription after the 30-day free trial. Learn more at www.netgear.com/spc.
