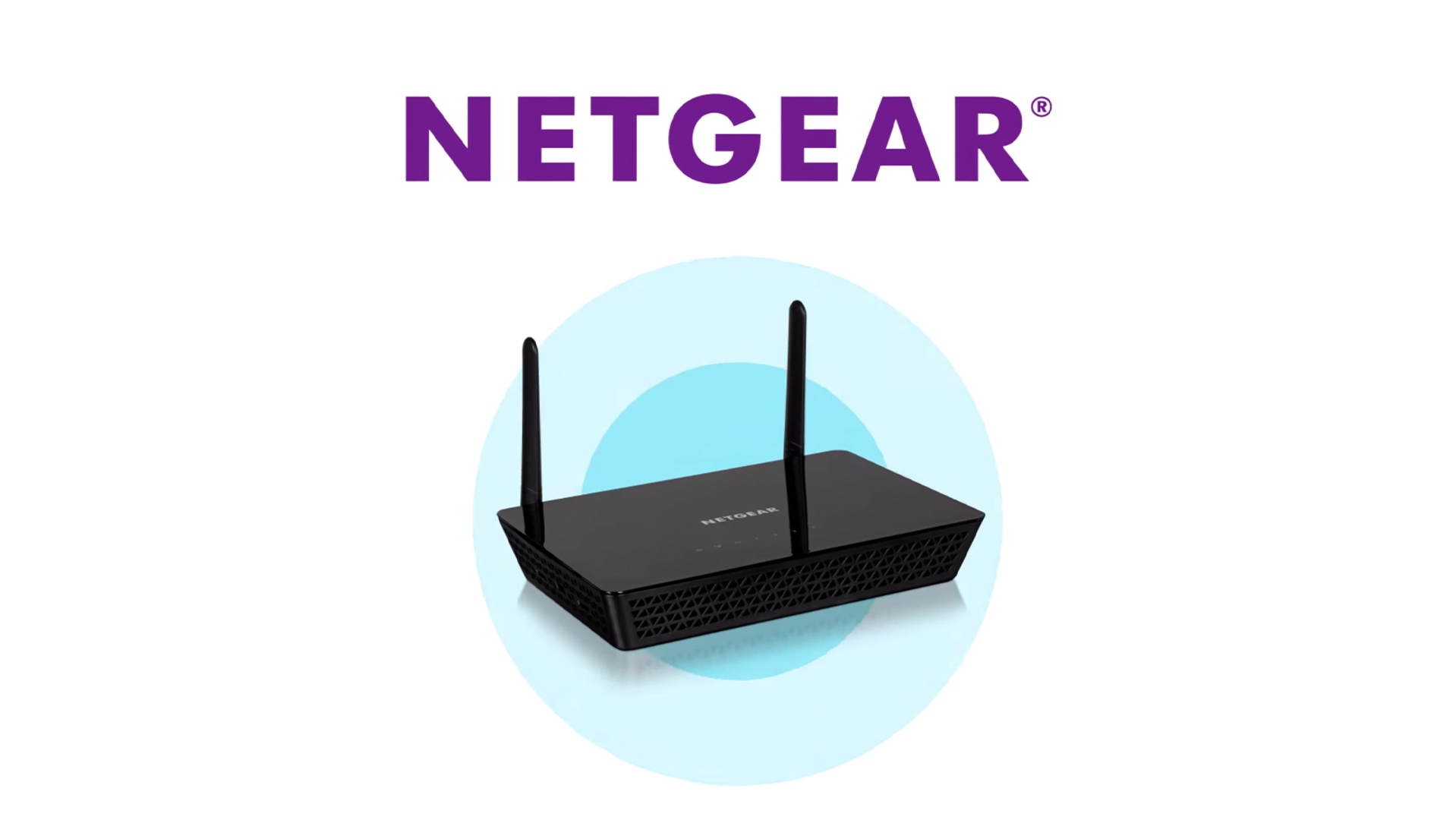

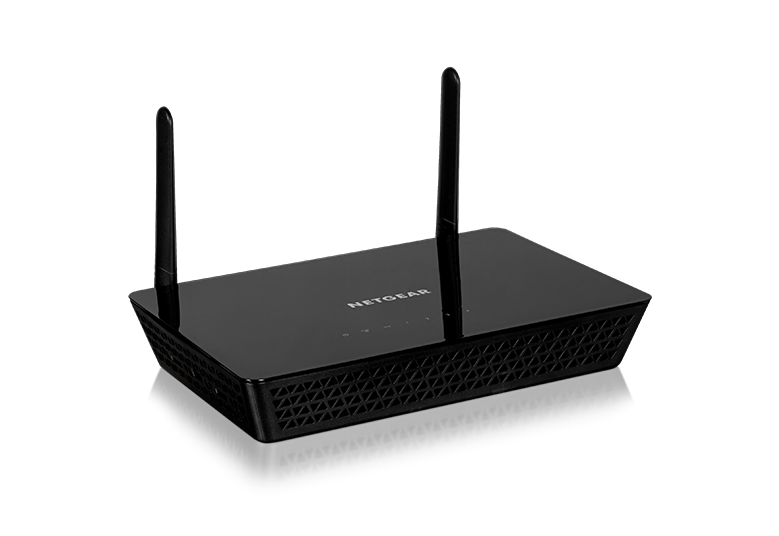

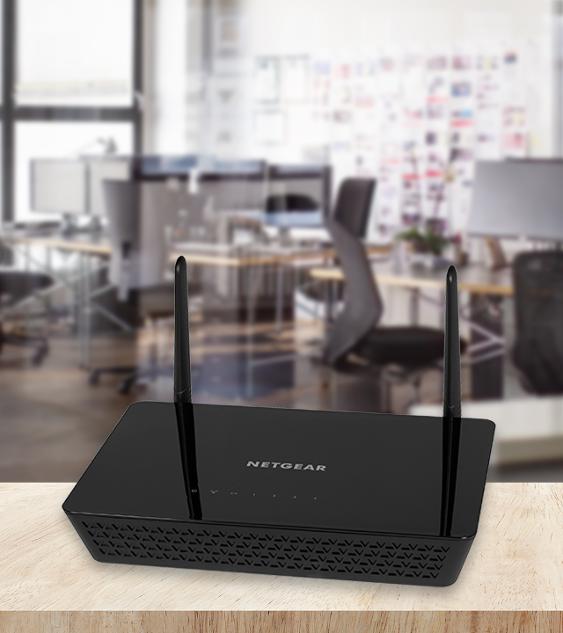

Essentials Wireless (WAC104)
AC1200 Dual Band Wireless Access Point
Essentials Wireless (WAC104)
AC1200 Dual Band Wireless Access Point
Provides ease of use in standalone access point mode. Connect to a router Ethernet port and 110V/220V AC to add 4 Ethernet Ports and 2.4GHz and 5GHz WiFi with combined throughput of 1.2Gbps
Features
WIRELESS
Dual band 802.11ac WiFi 2.4 GHz + 5 GHz
Aggregate speed of 1.2 Gbps
External Antennas
110V/220V 12V External Power Adaptor
MULTI-CONFIGURATION
Access Point, and WDS point-to-point or Point-to-Multipoint wireless bridge
COMPATIBLE
Works with WiFi 4,5,6 devices (802.11n/ac/ax) including IPV6 Support
EASY SETUP
WiFi Protected System WPS Button for 1-touch client setup
Connect to existing Router
CONNECTIVITY OPTIONS
Four (4) built-in Gigabit Ethernet Ports, Connect Laptop, PC, game consoles and other wired devices
Intuitive Graphical User Interface for web-based access
Work / Play / Learn from Home
Designed for SOHO Deployments
Modern Security
WPA, WPA2 and MAC based access control lists
WiFi 5
Compatible nearly all WiFi client devices WiFi 4, WiFi 5 and WiFi 6
Technical Specifications
- Dimensions (L x W x H): 9.43 x 7.14 x 1.59in (239.65 x 181.45 x 40.6mm), Weight: 0.84lb (385g).
- Standards : IEEE 802.11ac specification, IEEE 802.11n 2.0 specification, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a.
- Frequency Band : 2.4GHz and 5GHz concurrent operation
- Maximum Theoretical Throughput : 300Mbps (2.4GHz), 867Mbps (5GHz)
- Maximum Number of Clients : 128
- Deployment options : Standalone, Web UI.
- Access Point : Antenna: 3dBi (external)
- Advanced Wireless : WDS Point-to-point wireless bridge mode, WDS Point-to-multipoint wireless bridge mode.
- Security : Wired Equivalent Privacy (WEP) Encryption, WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK), MAC Address filtering, 1 BSSID.
- MAC ACL : Yes
- VPN Pass-through : Yes
- 802.11e WMM : (Wireless multimedia mode) for QoS
- Simultaneous Bridge/Client Association : Yes
- Power : Country-specific plug: 12V/1.5A (18W), 1.5 Amp power adapter, Power consumption: 8.1W (maximum).
- Mounting : Desktop standable and Wall mountable
- Physical Interfaces : Four (4) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X)
- LEDs : Power, WPS, WiFi, LAN Activity
- Default Reset : Yes
- Operating Temperature : 32° to 104°F (0° to 40°C)
- Storage Temperature : -4° to 158°F (-20° to 70°C)
- Operating Relative Humidity : 10-90%
- Storage Humidity : 5-95%
- MTBF : @ 25°C > 285,000 hours,@ 50°C > 100,000 hours.
- Safety Certification : CE (EN60950)
- Optional Support : PMB0351: 5 years OnCall 24x7, PMB0331: 3 years OnCall 24x7, PMB0311: 1 year OnCall 24x7
- Product Ordering Information : WAC104-100AUS, WAC104-100NAS, WAC104-100PES, WAC104-100PRS, WAC104-100UKS, WAC104-100INS
- Warranty: This product is backed by a NETGEAR limited 3-year Hardware Warranty .
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
- Support
- 802.11ac Wireless AP (WAC104), Ethernet cable, Installation guide, Power adapter, Localised to country of sale, Warranty/support information card
