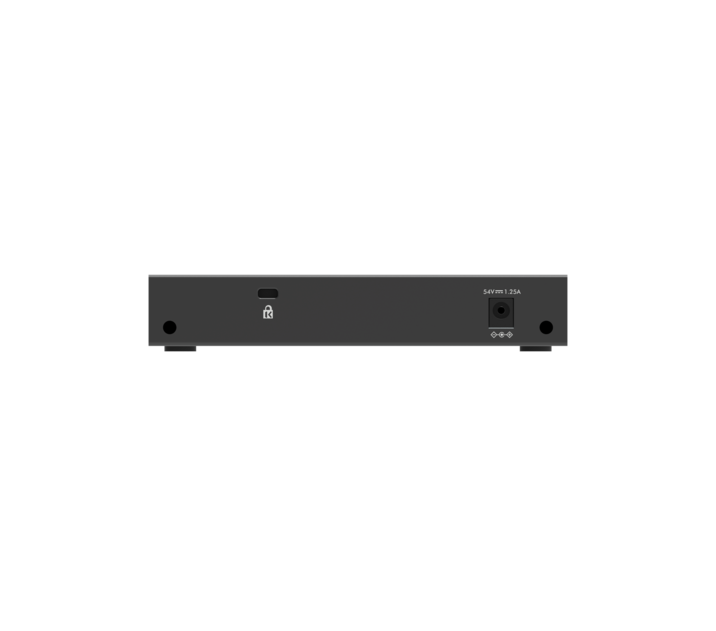

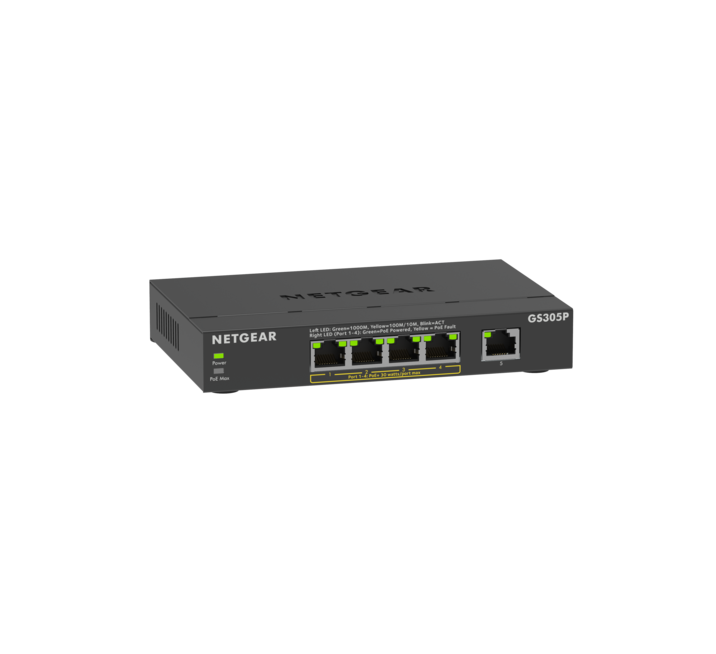

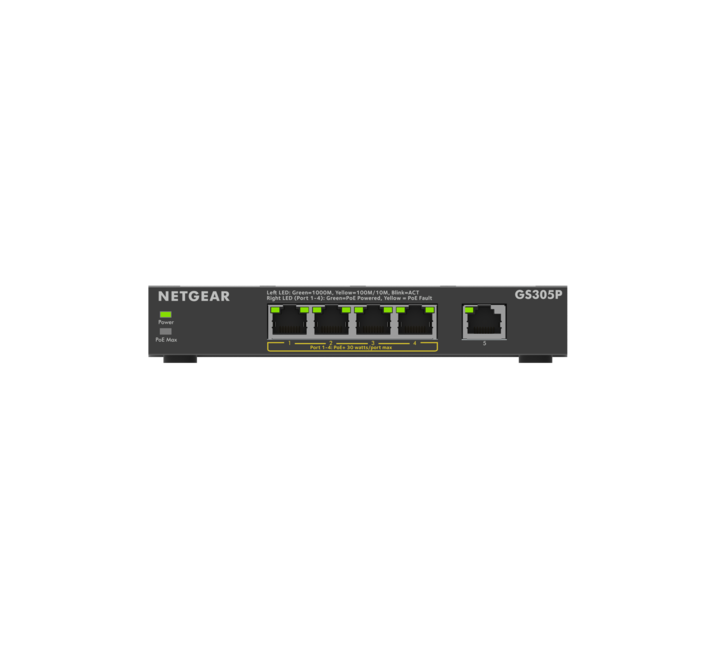

Gigabit 5-port 300 Series SOHO Unmanaged PoE+ Switch (GS305Pv3)
5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (63W)
Gigabit 5-port 300 Series SOHO Unmanaged PoE+ Switch (GS305Pv3)
5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (63W)
5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.
Features
ETHERNET PORT CONFIGURATION
5 Gigabit ports
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET
4 PoE+ ports with 63W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PoE POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Technical Specifications
- Dimensions (W x D x H) : : 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
- Weight : 0.40kg (0.88 lb)
- Speed : 100Mbps/1G
- Number of Ports : 5
- 4 PoE+ @ 30W each until budget is met
- PoE budget : Up to 63W Total
- Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
- Jumbo frame support : 9,216 bytes
- Queue WRR Ratio : 1:2:4:8
- MAC table size : 2k
- Packet buffer size : 128KB
- IEEE 802.1p QoS : Yes
- Power Consumption (Max/Standby) : 66.78W/1.02W
- Operating Temperature : 0-40°C (32°F - 104°F)
- MTBF (hours) : 4,113,947 hrs (469.32 years)
- FCC Class : Class B
- Fans : 0
- Acoustic Noise Level @25C : Fanless
- Warranty: This product is backed by a 3-year warranty.
- Click here for coverage, availability and terms and conditions.
- Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
