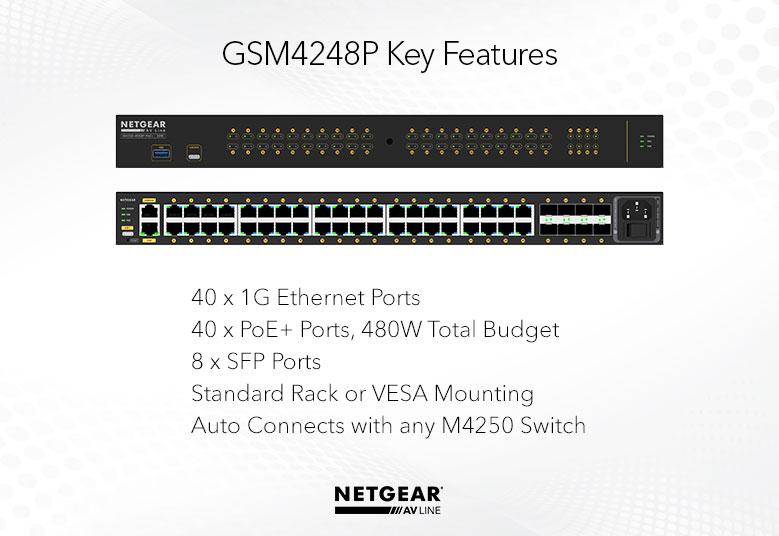

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality! GSM4248P GSM4248P-100NAS GSM4248P-100NAS

AV Line M4250-40G8F-PoE+ (GSM4248P) armor

40x1G PoE+ 480W and 8xSFP Managed Switch armor

AV Line M4250-40G8F-PoE+ (GSM4248P)

40x1G PoE+ 480W and 8xSFP Managed Switch armor

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

10-Port | 8xPoE+ 110W | 1x1G | 1xSFP | GSM4210PD

10-Port | 8xPoE+ 220W | 2xSFP+ | GSM4210PX

12-Port | 8xPoE+ 125W | 2x1G | 2xSFP | GSM4212P

12-Port | 8xPoE+ 240W | 2x1G | 2xSFP+ | GSM4212PX

12-Port | 8xPoE++ 720W | 2x1G | 2xSFP+ | GSM4212UX

14-Port | 12x1G/2.5G | 2xSFP+ | MSM4214X

16-Port | 16x1G/10G Fiber SFP+ | XSM4216F

30-Port | 24xPoE++ 1440W | 2x1G | 4xSFP | GSM4230UP

30-Port | 24xPoE+ 480W | 2x1G | 4xSFP+ | GSM4230PX

30-Port | 24xPoE+ 300W | 2x1G | 4xSFP | GSM4230P

48-Port | 40xPoE+ 480W | 8xSFP | GSM4248P

48-Port | 40xPoE+ 960W | 8xSFP+ | GSM4248PX

48-Port | 40xPoE++ 2880W | 8xSFP+ | GSM4248UX
We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

M4250 ProAv Powerful Av Switches M4250 ProAv Powerful Av Switches

POWERFUL AV SWITCHES
MADE SIMPLE


Pre-configured to get you up and running faster

M4250 AV OVER IP SIMPLIFIED

  • Groundbreaking AV GUI

    A simplified user interface makes it easy to assign configuration profiles to each port.

  • Multicast in an Instant

    NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

  • Sleek, Quiet Design

    Less fan noise, and mounting ears included for under-table or wall mounting.

  • Automatic Configuration

    Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.


FAST, EASY
CONFIGURATION
FOR AV PROS



A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.


FOCUS ON THE EVENT
NOT FAN NOISE



Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

M4250 DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX


DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX



With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

M4250 - REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY M4250 - REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY


REFINED DESIGN
PROVIDES MOUNTING
FLEXIBILITY



Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

COMPARE M4250 SERIES SWITCHES

Everest_Hero-Image_GSM4248P

GSM4248P
 		Hero-Image-GSM4210PD

GSM4210PD
 		Everest_GSM4210PX_PDP_32_Hero-Image

GSM4210PX
 		HeroImage

GSM4212P
 		HeroImage

GSM4212PX
 		HeroImage

GSM4212UX
 		HeroImage

MSM4214X
 		Hero Image

XSM4216F
 		Everest_Hero-Image_GSM4230P

GSM4230P
 		Everest_Hero-Image_GSM4230PX

GSM4230PX
 		Everest-Hero-Image-GSM4230UP

GSM4230UP
 		Everest_Hero-Image_GSM4248PX

GSM4248PX
 		Everest_Hero-Image_GSM4248UX

GSM4248UX

# Total Ports

# Total Ports

48

# Total Ports

10

# Total Ports

10

# Total Ports

12

# Total Ports

12

# Total Ports

12

# Total Ports

14

# Total Ports

16

# Total Ports

30

# Total Ports

30

# Total Ports

30

# Total Ports

48

# Total Ports

48

Port Types

Port Types

40x 1G, 8x SFP

Port Types

9x 1G, 1x SFP

Port Types

8x 1G, 2x SFP+

Port Types

10x 1G, 2x SFP

Port Types

10x 1G, 2x SFP+

Port Types

10x 1G, 2x SFP+

Port Types

12x 2.5G, 2x SFP+

Port Types

16x 1G/10G Fiber SFP+

Port Types

26x 1G, 4x SFP

Port Types

26x 1G,4x SFP+

Port Types

26x 1G, 4x SFP

Port Types

40x 1G, 8x SFP+

Port Types

40x 1G, 8x SFP+

Total PoE Budget

Total PoE Budget

480W

Total PoE Budget

110W

Total PoE Budget

220W

Total PoE Budget

125W

Total PoE Budget

240W

Total PoE Budget

720W

Total PoE Budget

-

Total PoE Budget

-

Total PoE Budget

300W

Total PoE Budget

480W

Total PoE Budget

1,440W

Total PoE Budget

960W

Total PoE Budget

2,880W

# PoE+ Ports

# PoE+ Ports

40

# PoE+ Ports

8

# PoE+ Ports

8

# PoE+ Ports

8

# PoE+ Ports

8

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

-

# PoE+ Ports

24

# PoE+ Ports

24

# PoE+ Ports

-

# PoE+ Ports

40

# PoE+ Ports

-

# PoE++ Ports

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

8

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

-

# PoE++ Ports

24

# PoE++ Ports

-

# PoE++ Ports

40

Rack Mount

Rack Mount

1U

Rack Mount

Desktop

Rack Mount

Desktop

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

1U

Rack Mount

2U

Form Factor WxHxD (mm)

Form Factor WxHxD (mm)

440 x 43.2 x 400

Form Factor WxHxD (mm)

210 x 40 x 140

Form Factor WxHxD (mm)

210 x 40 x 140

Form Factor WxHxD (mm)

440 x 43.2 x 200

Form Factor WxHxD (mm)

440 x 43.2 x 200

Form Factor WxHxD (mm)

440 x 43.2 x 257

Form Factor WxHxD (mm)

440 x 43.2 x 100

Form Factor WxHxD (mm)

440 x 43.2 x 200

Form Factor WxHxD (mm)

440 x 43.2 x 257

Form Factor WxHxD (mm)

440 x 43.2 x 400

Form Factor WxHxD (mm)

440 x 43.2 x 400

Form Factor WxHxD (mm)

440 x 43.2 x 400

Form Factor WxHxD (mm)

440 x 86.4 x 350

MAXIMIZE
PERFORMANCE
WITH NETGEAR
ACCESS POINTS



Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.

LEARN MORE


PRO AV
RESOURCES



All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

RESOURCES
m4250-pro-av-10-mb m4250-pro-av-10

Technical Specifications

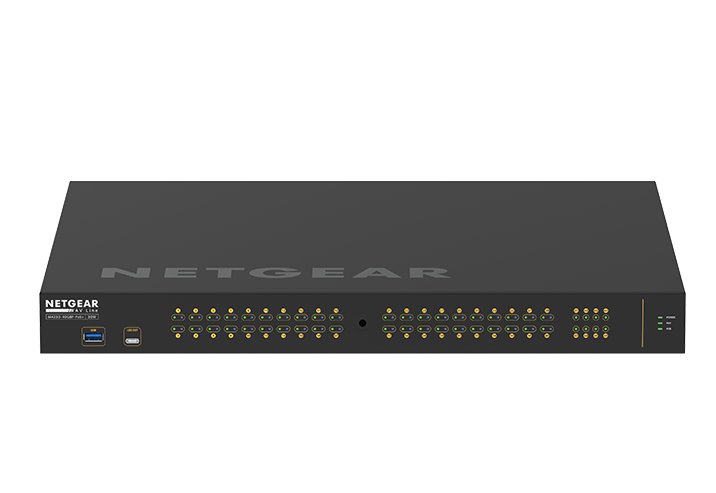

Tech Specs - GSM4248P Front

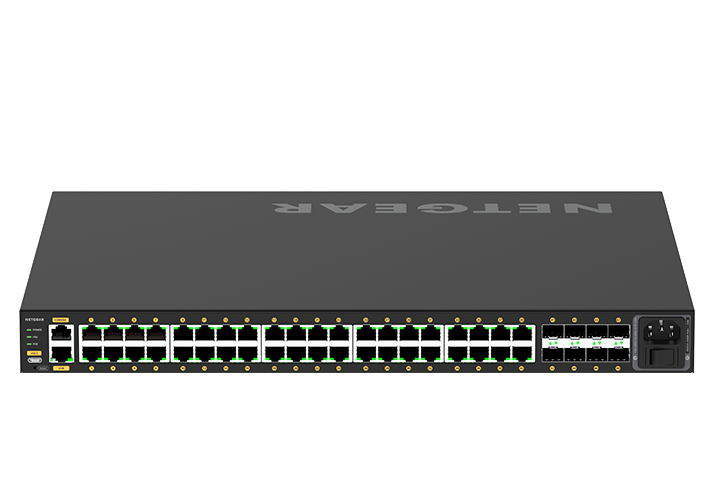

Tech Specs - GSM4248P Back
  • Dimensions (WxDxH) : 440 x 400 x 43.2 mm
  • Weight : 5.85Kg (12.9lb)
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 48 (40x 1G PoE+, 8x SFP)
  • PoE Ports / Budget : 40 PoE+ (30W/port), 480W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248P-10000S).
  • Acoustics : Fanless or 47dB@25ºC
  • Power Consumption : With PoE: 624.8W/2133.07Btu/hr; Without PoE: 59.5W/203.13Btu/hr; Standby without any port connection: 46.4W/158.41Btu/hr

    • Third party support : Domotz

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

  • M4250-40G8F-PoE+ (GSM4230P)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
