5-Port Gigabit Unmanaged switch with 4 PoE+ ports and 83W power budget to power Wireless AP, IP Cameras, IP Phones and more GS305PP GS305PP-100NAS GS305PP-100NAS

300 Series SOHO Unmanaged Switch (GS305PP) armor

5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (83W) armor

300 Series SOHO Unmanaged Switch (GS305PP)

5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (83W) armor

5-Port Gigabit Unmanaged switch with 4 PoE+ ports and 83W power budget to power Wireless AP, IP Cameras, IP Phones and more

5-port | PoE+ | 83W | GS305PP
SHOP NOW

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

ETHERNET PORT CONFIGURATION

5 Gigabit ports
PLUG-AND-PLAY

Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE

Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET

4 PoE ports with 83W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PoE POWER AUTO-BALANCE AND ALLOCATION

NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate.
Metal Case

Durable and Rugged
VERSATILE MOUNTING OPTIONS

Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN

Ensure interoperability with any standards-based PDs
Product Datasheet

Technical Specifications

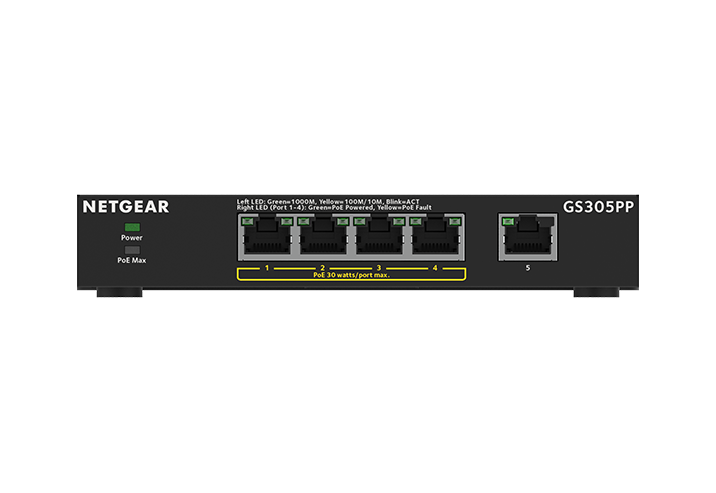

gs305pp_tech_specs_image_1
gs305pp_tech_specs_image_2
  • Dimensions : 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)
  • Weight : 0.46 kg (1.02 lb)
  • Product name : 5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (83W)
  • Speed : Gigabit
  • Number of Ports : 4 PoE ports
  • 4 PoE+ @ 30W each until budget is met
  • PoE budget : Up to 83W Total
  • Energy Efficient Ethernet support : Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode
  • Jumbo frame support : 9,216 bytes
  • MAC table size : 2k
  • Packet buffer size : 128K
  • PoE Auto balance : Yes - Balances the PoE power per port based on the device needs independent of PoE class detected
  • Optional Modules and Accessories : EPS130W 130W External Power Adapter (Included)
  • EPS200W 200W External Power Adapter (Optional, up to 183W PoE+ Budget)
  • EPS90W 90W External Power Adapter (Optional, lower to 76W PoE+ Budget)
  • Protocols : IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Priority QoS (all models)
  • IEEE 802.3 CSMA/CD
  • 802.3az Energy Efficient Ethernet
  • Warranty : 3-Year Warranty
  • Technical Support (online, phone) : 90 days free from date of purchase
  • Extended ProSupport Support and Warranty Available
