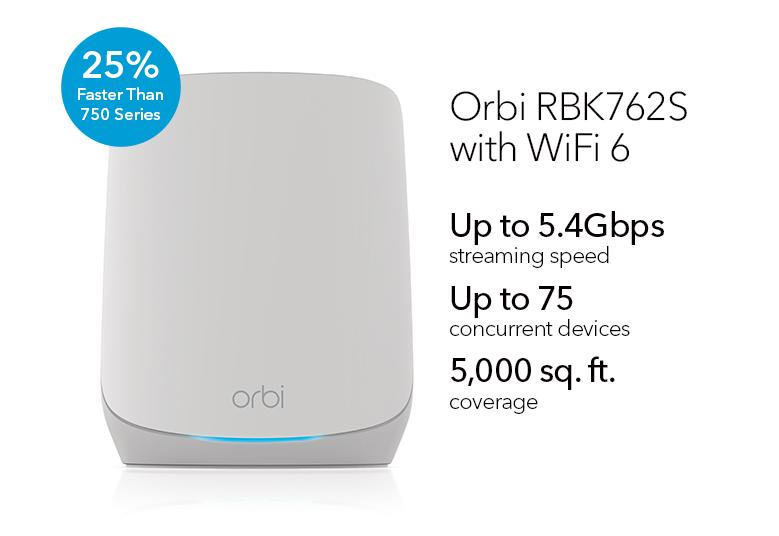

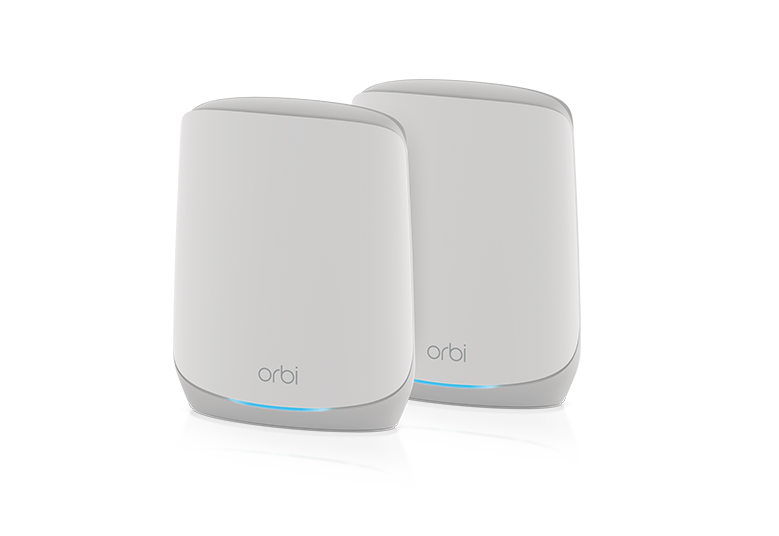

AX5400 WiFi Mesh System (RBK762S)
NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 1 Satellite
AX5400 WiFi Mesh System (RBK762S)
NETGEAR® Orbi™ Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 1 Satellite
Upgrade to blazing-fast 5.4Gbps† of WiFi 6 on up to 75 devices simultaneously across more space: 5 rooms or up to 5,000 sq. ft. The RBK762S includes a dedicated connection for instant router-satellite communication so WiFi speed stays fast as more devices connected, and 5 Gigabit ports to give your most demanding tech products their own wired connection. Keep your family and your connected devices safe from online threats with 1 year of NETGEAR Armor all-in-one internet security.

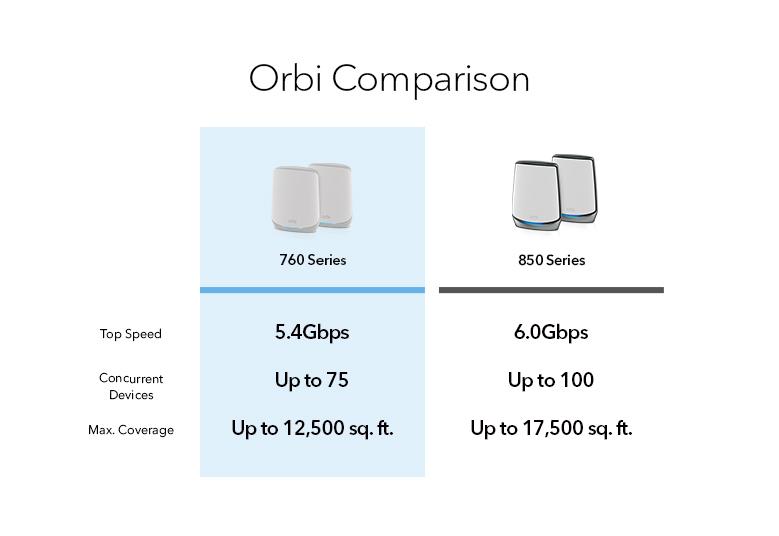

ORBI FAMILY
COMPARISON
760 Series
WiFi: WiFi 6
Speed: up to 5.4Gbps
Devices: up to 75
Coverage: up to 12,500 sq.ft.
850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.
960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.
ENGINEERED FOR
BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.
UNSTOPPABLE
STREAMING
Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
THE BEST COVERAGE.
PERIOD.
Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

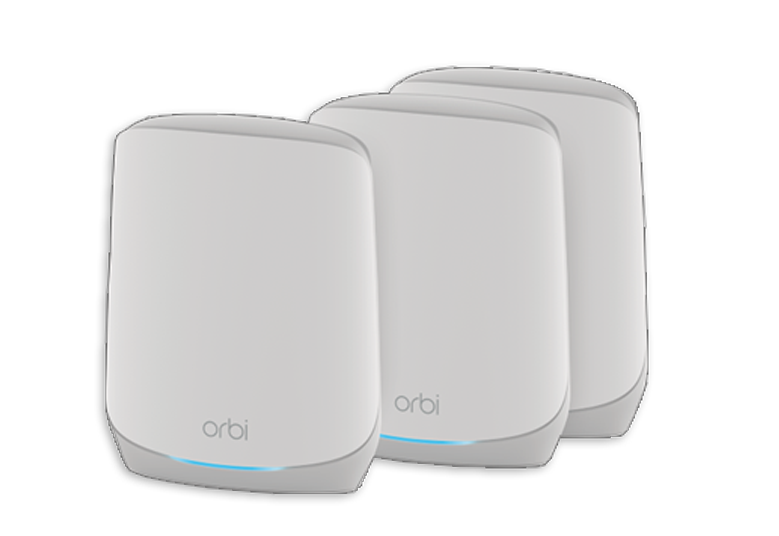

ADD SATELLITES TO
MEET YOUR NEEDS
Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
EASY SETUP
-
Download the Orbi app
and follow instructions. -
Connect Orbi Router to
your modem and power. -
Place and power Orbi Satellite
in another part of your home.
TAP.
MANAGE.
CONTROL.

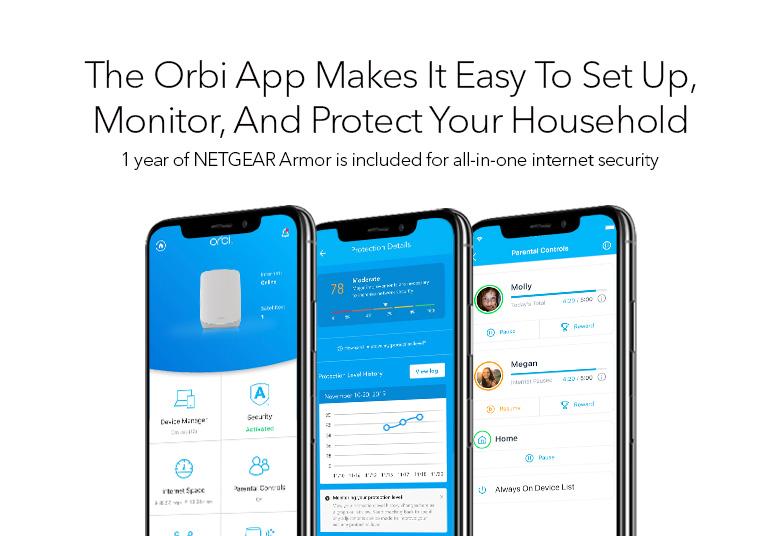

Orbi App
Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.
Technical Specifications
- Dimensions: 8.3 x 6.6 x 2.5in each
- Weight: 1.6lb each
- WiFi Coverage : 5,000 sq. ft.
- Simultaneous Tri-band WiFi : Orbi AX5400 Router and AX5400 Satellite (600 + 2400 + 2400Mbps)†
- - Radio 1: IEEE® 802.11b/g/n/ax 2.4GHz—1024QAM support
- - Radio 2: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
- - Radio 3: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
- MU-MIMO capable for simultaneous data streaming
- Processor – Router & Satellite : Powerful Dual-Core 1Ghz processor
- Memory - Router : 4GB eMMC NAND Flash and 1GB RAM
- Antenna – Router & Satellite (each) : Four (4) high performance internal antennas with high-powered amplifiers
- Ports – Orbi Router : One (1) Gigabit Ethernet WAN port
- Three (3) Gigabit Ethernet LAN ports
- Ports – Orbi Satellite : Two (2) Gigabit Ethernet LAN ports
- Control your WiFi using voice commands when you have Amazon AlexaTM or the Google® Assistant
- Security : Advanced cyber threat protection for your home network and connected devices, with comprehensive anti-virus & data theft protection for your PC, Mac®, and mobile devices with NETGEAR ArmorTM
- Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
- Guest WiFi Network is easy to setup separate & secure Internet access for guests
- NETGEAR Smart Parental Controls™ : Easily manage your kids’ time online across their connected devices. Learn more at www.netgear.com/spc
- Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty
- WARRANTY
- Find troubleshooting tips to diagnose product issues in our knowledge base
- SUPPORT
- Extend your warranty & technical support within 90 days of product purchase [US only].
- GET PROSUPPORT
- One (1) Orbi Router (RBR760)
- One (1) Orbi Satellite (RBS760)
- One (1) 2m Ethernet cable
- Two (2) power adapters
- Quick start guide
Compare Similar Products
RBK763 |
RBK863SB |
RBKE963B |
|
|---|---|---|---|
|
Price |
Price |
Price |
Price |
|
WiFi 6 / 6E |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6E |
|
WiFi Bands |
WiFi Bands Tri-Band |
WiFi Bands Tri-Band |
WiFi Bands Quad-Band |
|
Max WiFi Speed |
Max WiFi Speed 5.4Gbps |
Max WiFi Speed 6 Gbps |
Max WiFi Speed 10.8 Gbps |
|
Coverage |
Coverage 7,500 sq. ft. |
Coverage 8,000 sq. ft. |
Coverage 9,000 sq ft |
|
# of Devices |
# of Devices 75 |
# of Devices 100 |
# of Devices 200 |
|
Internet Port Speed |
Internet Port Speed up to 5.4Gbps |
Internet Port Speed up to 10 Gig |
Internet Port Speed up to 10 Gig |
|
Dedicated WiFi Backhaul |
Dedicated WiFi Backhaul Dedicated 5GHz 2x2 (160MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
|
Fronthaul WiFi |
Fronthaul WiFi 5GHz: 2x2 (160MHz); 2.4GHz: 2x2 |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
Fronthaul WiFi 6GHz: 4x4 (160MHz), 5GHz: 4x4 (80MHz), 2.4GHz: 4x4 |
|
Total Wired Ethernet Ports (Router) |
Total Wired Ethernet Ports (Router) One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
|
Total Wired Ethernet Ports (Each Satellite) |
Total Wired Ethernet Ports (Each Satellite) Three (3) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
Footnotes:
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty
*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.
† Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.4Gbps wireless speeds achieved when connecting to other 802.11ax 5.4Gbps devices.
NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor
