As part of the Business Essentials line, the WAX220 is an ideal WiFi 6 solution for your small business or home office. Use this standalone access point to create your own dedicated, secure and fast wireless network. Manage it locally without any app or subscription required. Quickly and easily configure in less than 10 minutes!
WAX220 WAX220-100NAS WAX220-100NAS

AX4200 WiFi 6 Access Point (WAX220) armor

NETGEAR® WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE+ armor

AX4200 WiFi 6 Access Point (WAX220)

NETGEAR® WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE+ armor

As part of the Business Essentials line, the WAX220 is an ideal WiFi 6 solution for your small business or home office. Use this standalone access point to create your own dedicated, secure and fast wireless network. Manage it locally without any app or subscription required. Quickly and easily configure in less than 10 minutes!

AX4200 | WiFi 6 | Multi-Gig | No power adapter | WAX220

AX1800 | WiFi 6 | Multi-Gig | No power adapter | WAX214v2
SHOP NOW

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.


WiFi6_logo_white

The most powerful WiFi ever

4x

more capacity

40%

increase in data throughput

100%

backwards compatibility

LATEST BUSINESS WIFI

Upgrade to WIFi 6 with speeds of up to 4.2 Gbps for faster streaming, downloading, video conferencing, and more.
BUDGET FRIENDLY SOLUTION

The perfect WiFi 6 business solution for your small office, retail shop, conference room, or lobby.

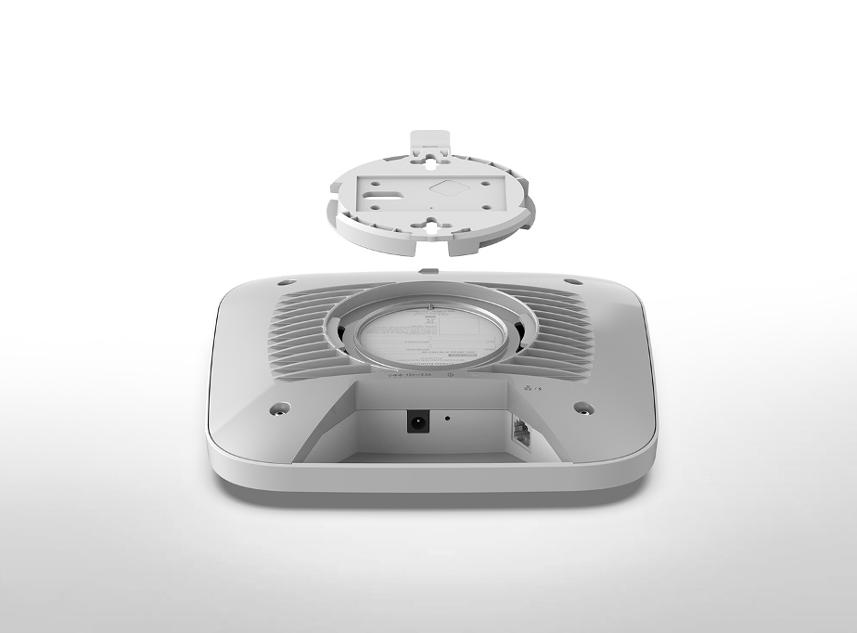

COMPACT WITH VERSATILE MOUNTING

Small size and easy to mount on a wall or ceiling make it ideal for a lobby or retail showroom where you want your Access Point to be discrete
SECURE & ISOLATED

4 unique SSID’s, WPA3 authentication, and a dedicated Ethernet connection isolate it from the rest of your office network
POWER OVER ETHERNET(PoE+) POWERED

Connect it to your router with a single Ethernet cable for both power and data, without complicated wiring, professional installation, or added IT equipment costs.
EASY DIY SET UP

Easy 10 minute configuration with an intuitive Web GUI. No need for professional installation or IT equipment cost.
Product Datasheet

Technical Specifications

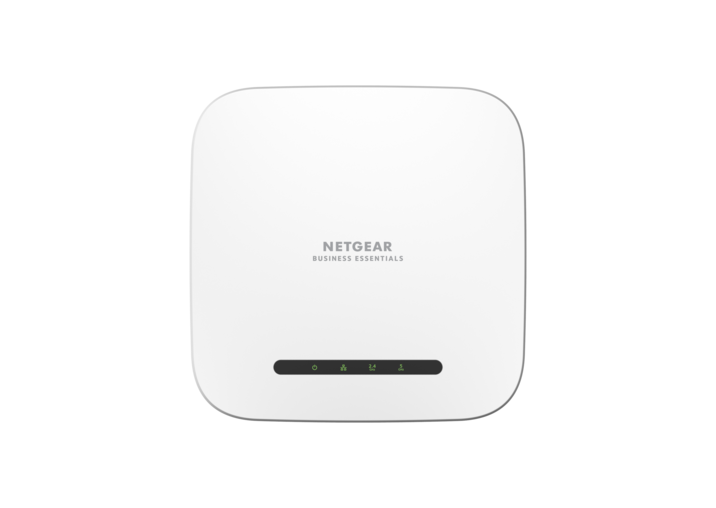

Tech_Specs_Image-WAX220_woshadow_Front

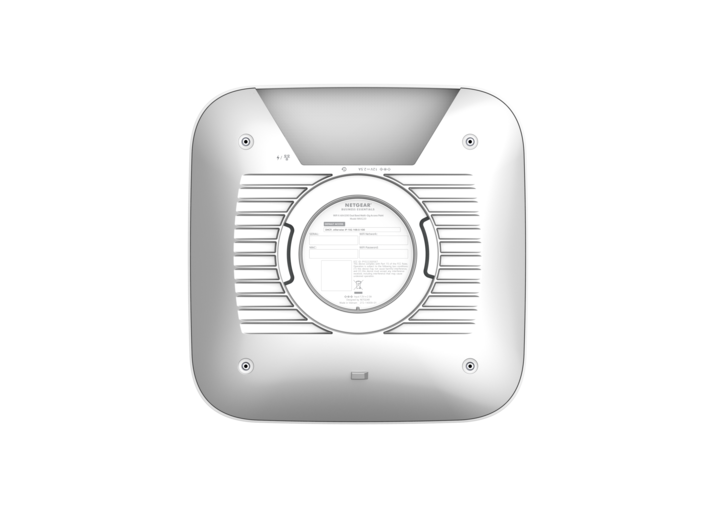

Tech_Specs_Image-WAX220_woshadow_Back
  • Dimensions (W x D x H) : 7.71 x 7.71 x 1.74 in (196 x 196 x 44.4 mm)
  • Weight : 1.15lb (523g)
  • Speed : AX4200
  • Radio : 5GHz: 4x4 20/40/80/160MHz
  • 2.4GHz: 2x2 20/40MHz
  • Theoretical Throughput : 5GHz: 3.6Gbps
  • 2.4GHz: 0.6Gbps
  • Antenna Gain : 5dBi (2.4GHz), 5dBi (5GHz)
  • # of Max Users : 256
  • # of Concurrent Devices : 75
  • Coverage : 2,000 sqft (185 sqm)
  • Ideal Use : Small and medium business, home office
  • Ethernet port : 1 x 2.5G port
  • PoE : Yes
  • PoE Power Consumption : 15W
  • Local management
  • Security : WiFi Protected Access (WPA/WPA2/WPA3), MAC Address filtering, 4 SSID
  • Hardware Limited Warranty 3 years
  • Next-Business-Day (NBD) Replacement 5 years
  • WAX220 Support
  • WAX220 Wireless Access Point
  • Ceiling / Wall mount kit
  • Installation guide
  • Warranty / Support information card
