Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades. GS305 GS305-300PES GS305-300PES

300 Series SOHO Unmanaged Switch (GS305) armor

5-Port Gigabit Ethernet SOHO Unmanaged Switch armor

300 Series SOHO Unmanaged Switch (GS305)

5-Port Gigabit Ethernet SOHO Unmanaged Switch armor

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.

5-port | Unmanaged | GS305

8-port | SOHO | Unmanaged | GS308v3

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

PLUG & PLAY: Simple setup with no software or configuration needed.
FLEXIBLE MOUNTING: Mount on desktop, or wall.
SMALL SIZE, METAL CASE, AND SILENT OPERATION: Durable quality, space saver, and quietness for peace of mind.
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT: NETGEAR has your back to ensure your network is up and running.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS: Can be placed on desk or mounted on the wall and will operate quietly with assured durability.
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts
Unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations
Energy efficient, built to last, and rigorously tested to provide the reliability businesses need
802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Desktop or wall-mountable
Product Datasheet

Technical Specifications

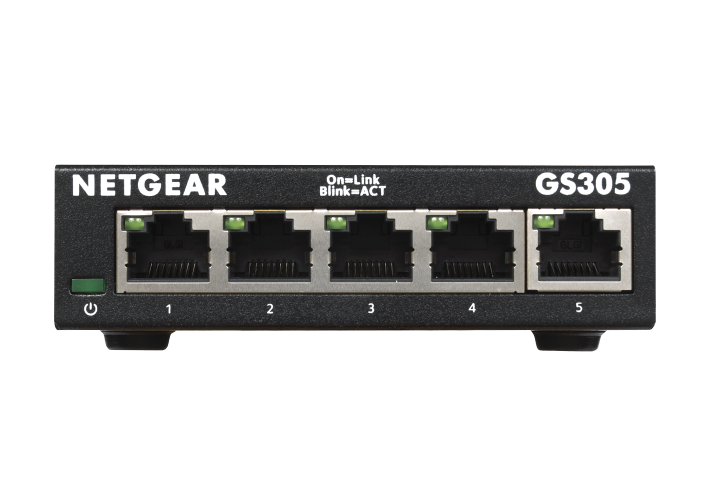

GS305_tech_specs_image_1

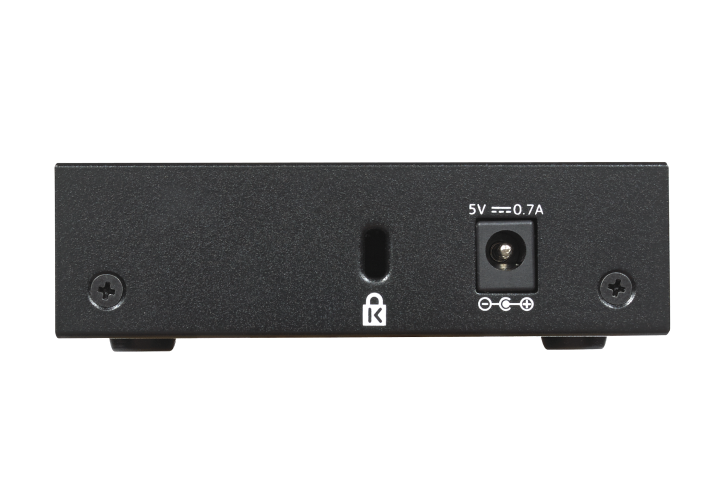

GS305_tech_specs_image_2
  • Dimensions (W x D x H) : 101 x 94 x 29 mm (4.0 x 3.7 x 1.1 in)
  • Weight : 0.24 kg (0.53 lb)
  • Model Description : 5-Port Gigabit Ethernet Switch
  • Speed : Gigabit
  • Number of Ports : 5
  • PoE Ports / Max Power Per Port : n/a
  • PoE Max Power Supplied (All Ports) : n/a
  • Connector Type : Plastic
  • Switch Housing : Metal
  • LEDs : Power, Link/Activity
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9,216 bytes
  • MAC Table Size : 2K
  • Packet buffer size : 128 KB
  • DC Power Adapter : 5V / 0.7A
  • Max Power Consumption (Watts) : 2.34W
  • Acoustic Noise Level @ 25° C (dBA) : 0 dBA (Fanless)
  • Operating Temperature : 0° to 40°C (32° to 104°F)
  • MTBF (@ 25° C) : 3,670,230 hours
  • Electromagnetic compliance (A or B) : Class B
  • Form Factor : Desktop or wall-mountable

    • Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region).

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
