Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 299W PoE+ Budget - IT Core & AV-over-IP XSM4316PA XSM4316PA-100AJS XSM4316PA-100AJS

M4300-16X (XSM4316PA) armor

16x Multi-Gig, PoE+ (299W) Managed Switch armor

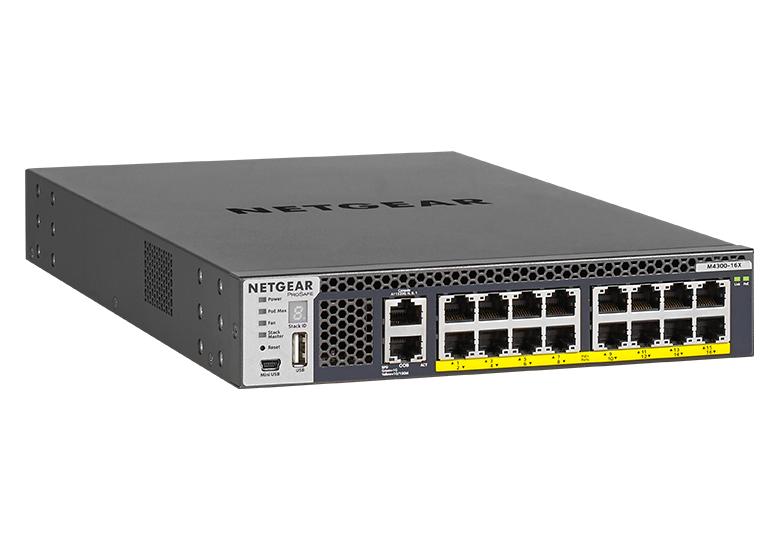

M4300-16X (XSM4316PA)

16x Multi-Gig, PoE+ (299W) Managed Switch armor

Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 299W PoE+ Budget - IT Core & AV-over-IP

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency

Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
299W PSU

Ships with 299W PSU APS299W installed

Optional 600W PSU APS600W
Half-Width ToR

Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

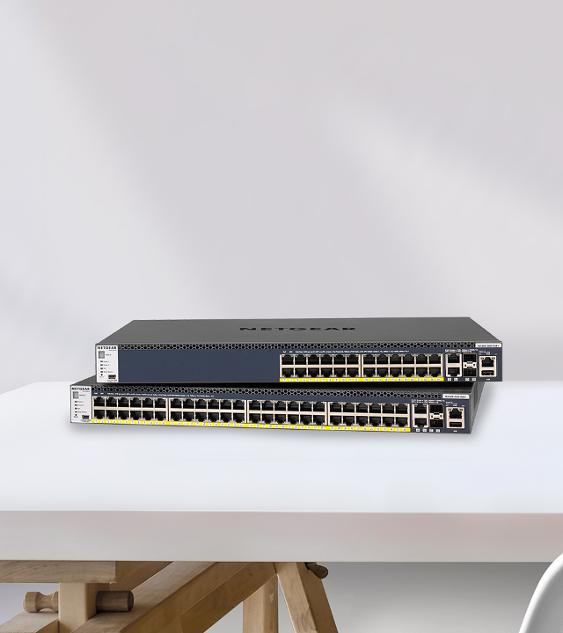

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow

With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Full PoE+ Provisioning

All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (199W budget)
Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

Pre-configured for Out-of-Box Multicast/IGMP
No Delay

Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
Product Datasheet

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

Tech Specs Image 1
Tech Specs Image 2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Power over Ethernet PoE : 16x 10GBASE-T PoE+
  • Fully provisioned for up to 30 Watts Per Port
  • 199 Watts Total PoE+ Budget

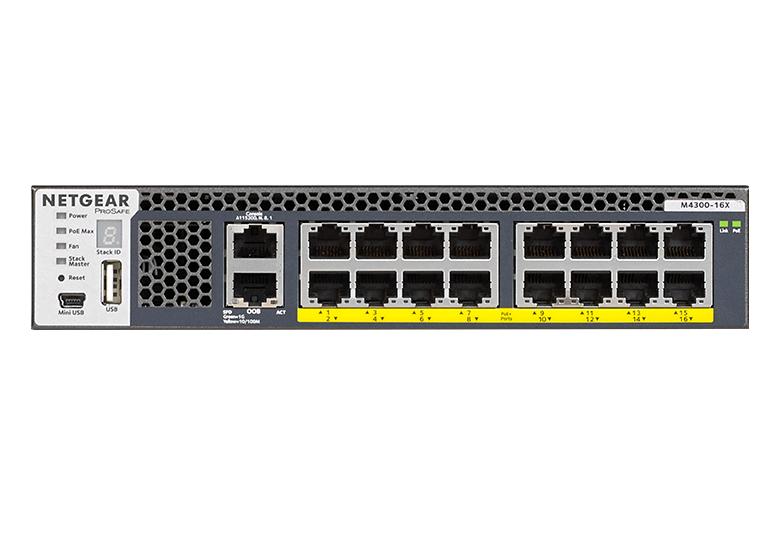

  • Hardware Specifications : 16 Ports RJ45 PoE+ Multi-Gigabit 100M/ 1G / 2.5G / 5G / 10G

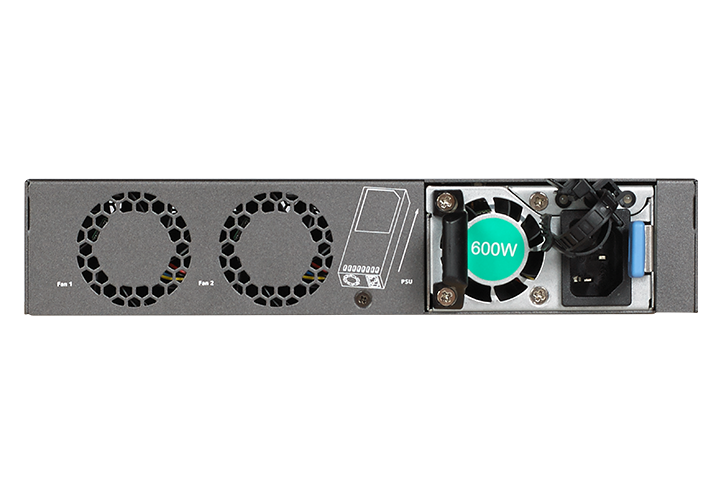

  • 1 Modular Bay with 1 299W Modular PSU included APS299W (or 500W Budget with optional APS600W PSU)
  • 1-unit 1U / 2-unit 1U Rack Mount (Included)
  • 320 Gbps Switching Fabric
  • Fixed Fan Front-to-Back 35db

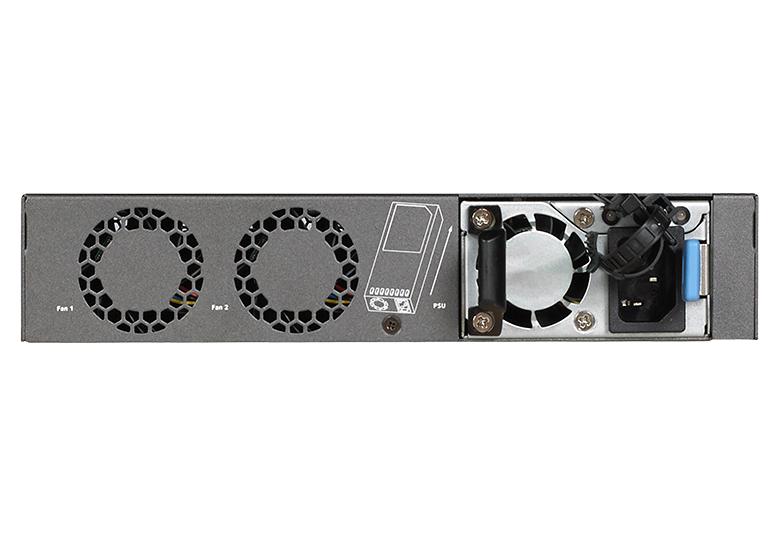

  • Management Options : Ethernet: Out-of-band 1G port (Back)
  • Console: RJ45 RS232 (Back)
  • Console: Mini-USB (Front)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption
Tech Specs Image 1
Tech Specs Image 2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Table Sizes : 16K MAC 888ARP / NDP. Up to 480 Gbps. Throughput up to 357 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP : 512 OSPF: 512
  • Latency : 2.76us 10G RJ45
  • IP Multicast : 96 IPv4 / 32 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
