Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included. GS752TXPv3 GS752TXP-30000S GS752TXP-30000S
1-Year NETGEAR Insight Subscription Included

Smart w/ optional Cloud (GS752TXPv3) armor

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W) armor

1-Year NETGEAR Insight Subscription Included

Smart w/ optional Cloud (GS752TXPv3)

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W) armor

Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.

52-Port | 48xPoE+ | 760W | 4xSFP+ | Insight and Locally Managed | GS752TXPv3​

52-Port | PoE+ | 190W | 4xSFP | Insight and Locally Managed | GS752TPv3​

28-Port | 24xPoE+ | 380W | 4xSFP+ | Insight and Locally Managed | GS728TXPv3

24 Port Multi-Gig Switch | PoE++ | Insight Managed | MS324TXUP

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

LEARN MORE
Netgear insight remote management Netgear insight remote management

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

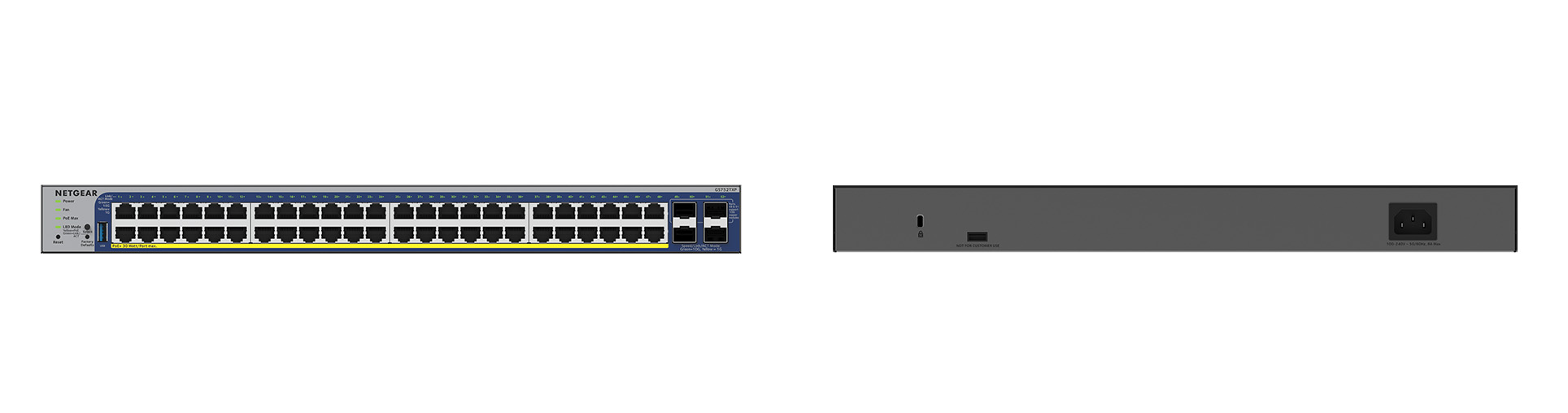

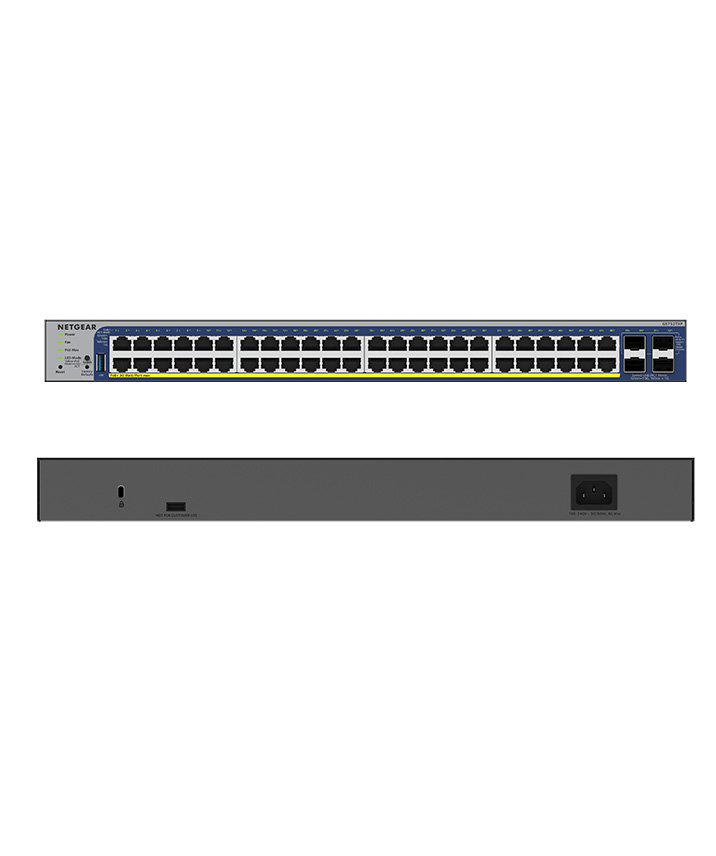

Tech_Specs_Image-GS752TXPv3_desktop Tech_Specs_Image-GS752TXPv3_mobile
  • NETGEAR GS752TXP with Insight Cloud Management
  • DC power cord (varies by region)
  • Rackmount kit
  • Installation guide
  • Width
    440mm
  • Depth
    310mm
  • Height
    43.2mm
  • Weight
    11.08lb (5.03kg)
  • Model Description
    48-Port Gigabit Ethernet Smart Switch with 4 10G SFP+ Ports
  • 10/100Mbps ports
    48
  • 10G SFP+ ports
    4
  • Number of PoE+ ports (802.3at)
    48
  • Total PoE Power budget (Watts)
    380W
  • Max MAC entries
    16K
  • Buffer size
    1.5MB
  • VLAN (Number Supported)
    256
  • VLAN routing
    Yes
  • Dynamic VLAN assignment
    Yes
  • MLD Snooping
    Yes
  • Static route
    Yes
  • Host ARP table
    512
  • EEE
    Yes
  • DoS Prevention
    Yes
  • Internal/External Power Supply/Adapter
    Internal
  • Max consumption without PoE (Watts)
    51W
  • FAN
    3
  • Acoustic Noise Level @25C (dBA)
    36.6dBA
  • Operating Temperature
    0° to 50° C
  • MTBF
    1,296,949 hours  (148 years)
  • NETGEAR Insight Remote Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

  • GS752TXP Support
  • How to identify your device's version and model number
