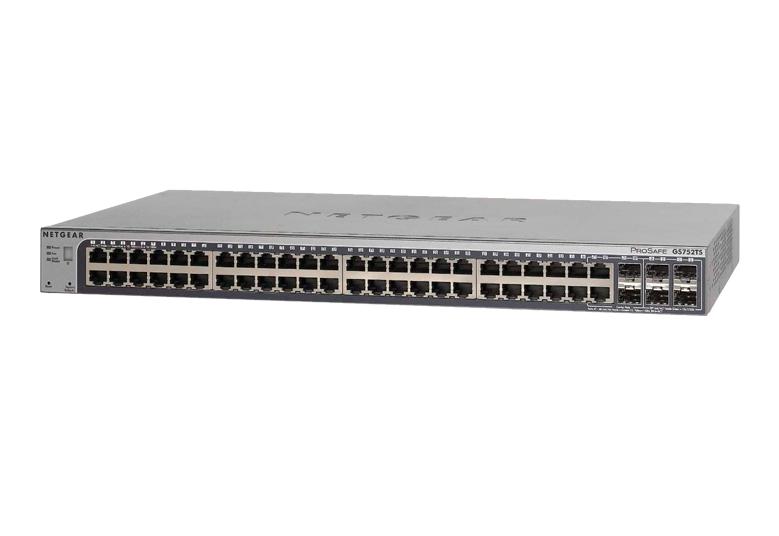

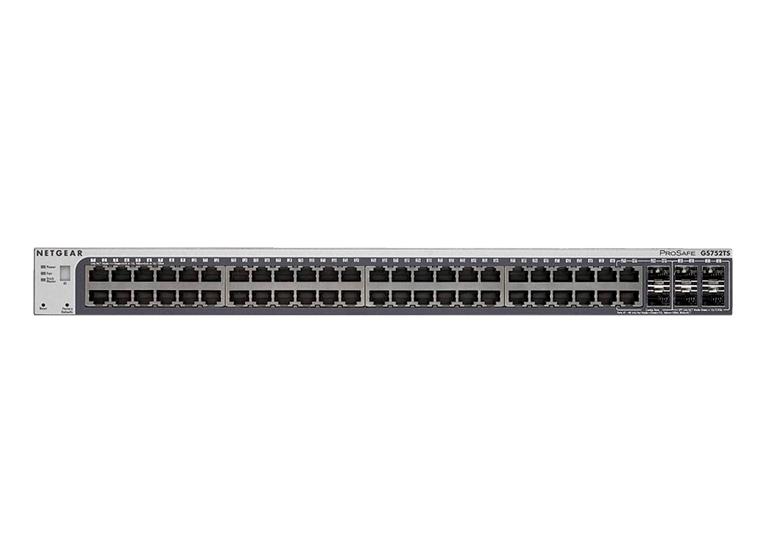

Stackable Smart Switch Series (GS752TSB)
52-Port Gigabit Ethernet Stackable Smart Switch with 2 Copper/SFP Combo and 4 Dedicated SFP Uplink/Stacking Ports
Stackable Smart Switch Series (GS752TSB)
52-Port Gigabit Ethernet Stackable Smart Switch with 2 Copper/SFP Combo and 4 Dedicated SFP Uplink/Stacking Ports
The Stackable Smart Switch series is unique in delivering the scalability, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package.
Features
Enhanced Scalability and Network Convergence for Growing Businesses
The Stackable Smart Switch series is unique in delivering the scalability, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package. The second generation of these Stackable Smart Switches consists of 4 models in 28/52-port configurations. Each switch in the series comes with a total of 6 SFP ports for fiber connectivity. Among them, 2 are shared, and the other 4 are dedicated for either stacking or uplinks. This new generation of Stackable Smart Switches offers two models that support PoE+ (up to 30W per port) allowing more flexible network deployments of PoE devices. The Stackable Switch series offers the flexibility and scalability that will make it easier for growing businesses to seamlessly expand their network capacity.
Stacking for Scalability and High Availability
The new Generation of Stackable Smart Switches use 2 dedicated ports in the front of the switch for stacking, providing a 10Gbps, dual-ring, highly redundant stacking bus that carries intra-stack traffic and provide highest level of resilience, allowing you to stack up to six switches or up to 300 10/100/1000 Mbps ports, forming a virtual chassis for easy management under a single IP address. This stacking technology also provides several high-availability features to ensure business continuity:
Resiliency: Due to redundant stacking port connections, there is an automatic fail-over in case any switch in the stack fails, with rapid reconfiguration, thus preventing network downtime.
Hot-swappable: All switches in the stack are hot-swappable, and can be integrated or removed without disrupting the network.
Full-featured, Flexible 802.3at Power over Ethernet (PoE+)
With a total power budget of 192 Watts for the GS728TPS and 384 Watts for the GS752TPS, customers can choose to connect up to 48 802.3at IP-based devices in their network. Power-over-Ethernet (PoE) helps you optimize the installation and power management of network devices such as wireless access points (AP), VoIP phones, and IP-based surveillance cameras, and free your network deployment from restrictions of power outlet proximity using a standard Cat 5 cable. The first 8 ports on GS728TPS and GS752TPS also support 802.3at PoE+, providing up to 30 Watts of power for high-powered PoE devices such as videophones, RFID readers, access control systems. The switches are equipped with auto power budgeting functions, allowing flexibility in power management. The switches can prioritize how power is allocated, monitor power consumption and get alerts when power usage reaches a certain threshold.Advanced Quality of Service (QoS)
Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. Friendly to converged network with voice and video, the Stackable Smart Switches offers Auto Voice and Auto Video features that automatically configures QoS, Security and VLAN settings for IP phones and IP cameras.Manageability and Support
There are various easy and convenient ways to manage the Stackable Smart Switch. The new Stackable Smart Switches can be managed by the Smart Control Center software which comes free with the switch. With it, you can discover and manage all NETGEAR Smart Switches from a central location, conduct mass configuration and firmware upgrade. If you have other NETGEAR business products in your network, you can also use the NMS200, NETGEAR’s management platform for discovery and configuration of all your Netgear products in the network. For the peace of mind, these Stackable Smart Switches are backed by the NETGEAR ProSAFE® Lifetime Hardware Warranty and 1-year free 24x7 Advanced Technical Support*Technical Specifications
- Weight (kg) : 4.31kg
- Dimensions (WxDxH) mm : 440 x 257 x 43
- Gigabit ports : 48
- SFP ports : 4 SFP: last two can be used for stacking (2.5G)
- Number of PoE ports : N/A
- PoE+ (802.3at) : N/A
- Total PoE Power budget (Watts) : N/A
- Number of PD ports : N/A
- Buffer size : 2MB
- Max MAC entries : 16K
- VLAN (# Supported) : 256
- Number of LAGs & # of members : 8 LAGs & Max 8 members each
- Number of priority queues : 8
- Max # of ports in a stack : 6 units or 300 ports
- Stacking bandwidth : 10G
- Internal/External : Internal 100-240VAC 50-60Hz
- Max comsumption (Watts) : 77W
- FAN : 2
- Acoustic Noise Level @25C (dBA) : 34.8
- Operating Temperature : 0° to 50° C
- MTBF : 303219.7 hrs
- Electromagnetic Compliance (A or B) : A
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
