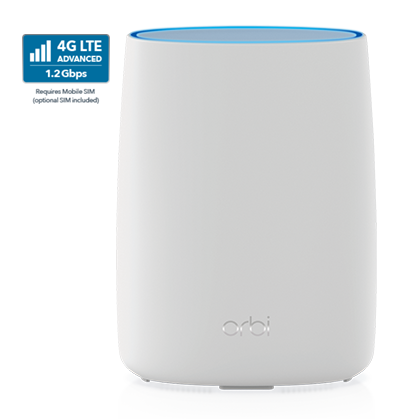

The Orbi™ 4G LTE Advanced WiFi Router is compatible with select Orbi satellites to create a mesh WiFi system that covers 2,000 sq. ft. with speeds of up to 2.2 Gbps. An integrated cellular modem also lets you use 4G LTE speeds for always-on WiFi at home. Certified for AT&T, T-Mobile networks, Verizon Wireless and works with other major 4G LTE Service Providers excluding Sprint legacy network††. LBR20 LBR20-100NAS LBR20-100NAS

AC2200 LTE Mesh Router (LBR20) armor

Orbi 4G LTE Modem + Tri-Band Mesh WiFi Router Combo, 2.2Gbps armor

AC2200 LTE Mesh Router (LBR20)

Orbi 4G LTE Modem + Tri-Band Mesh WiFi Router Combo, 2.2Gbps armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

The Orbi™ 4G LTE Advanced WiFi Router is compatible with select Orbi satellites to create a mesh WiFi system that covers 2,000 sq. ft. with speeds of up to 2.2 Gbps. An integrated cellular modem also lets you use 4G LTE speeds for always-on WiFi at home. Certified for AT&T, T-Mobile networks, Verizon Wireless and works with other major 4G LTE Service Providers excluding Sprint legacy network††.

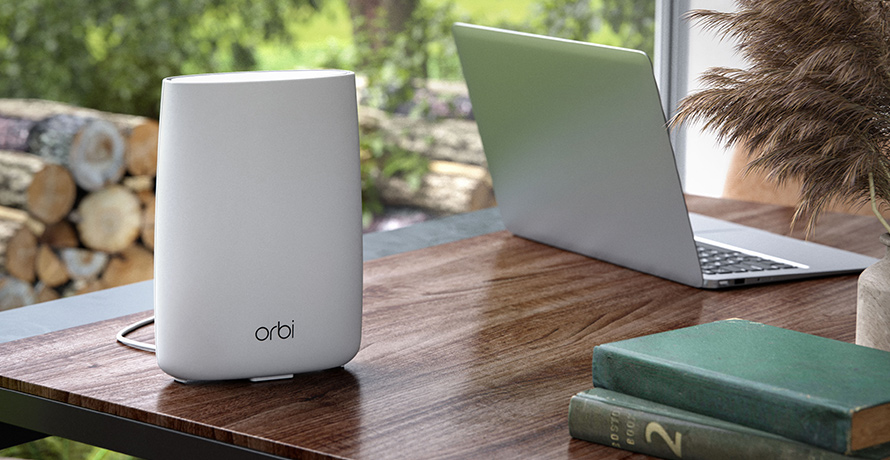

Orbi 4G LTE WiFi System

Orbi 4G LTE WiFi System

    IMG_2324

    Your Orbi 4G LTE WiFi Router works with your preferred 4G LTE service provider


    Please ask your preferred 4G LTE service provider for the best BYOD (Bring Your Own Device) data plan to work with your Orbi 4G LTE WiFi Router.

    ADD A DATA PLAN FOR YOUR ROUTER

    Award-Winning, Unmatched Performance


    Tri-band mesh technology creates the ultimate WiFi experience. It uses a third dedicated WiFi connection between your router and satellites to deliver maximum speeds throughout every square inch of your home, even hard-to-reach places. Stay constantly connected on all your devices, even as you move through the house.

    netgear armor netgear armor

    ArmorBitedefender_NETGEAR_Primary_Blackv2


    ESSENTIAL ALL-IN-ONE INTERNET SECURITY

    You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

    Orbi App with Armor

    Easy Setup and Use with the Orbi App

    With the Orbi app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.


    App Store google play

    Features

    Performance

    • Super-Fast WiFi Award-winning tri-band technology lets you enjoy speeds of 2.2 Gbps for uninterrupted ultra HD streaming and gaming.

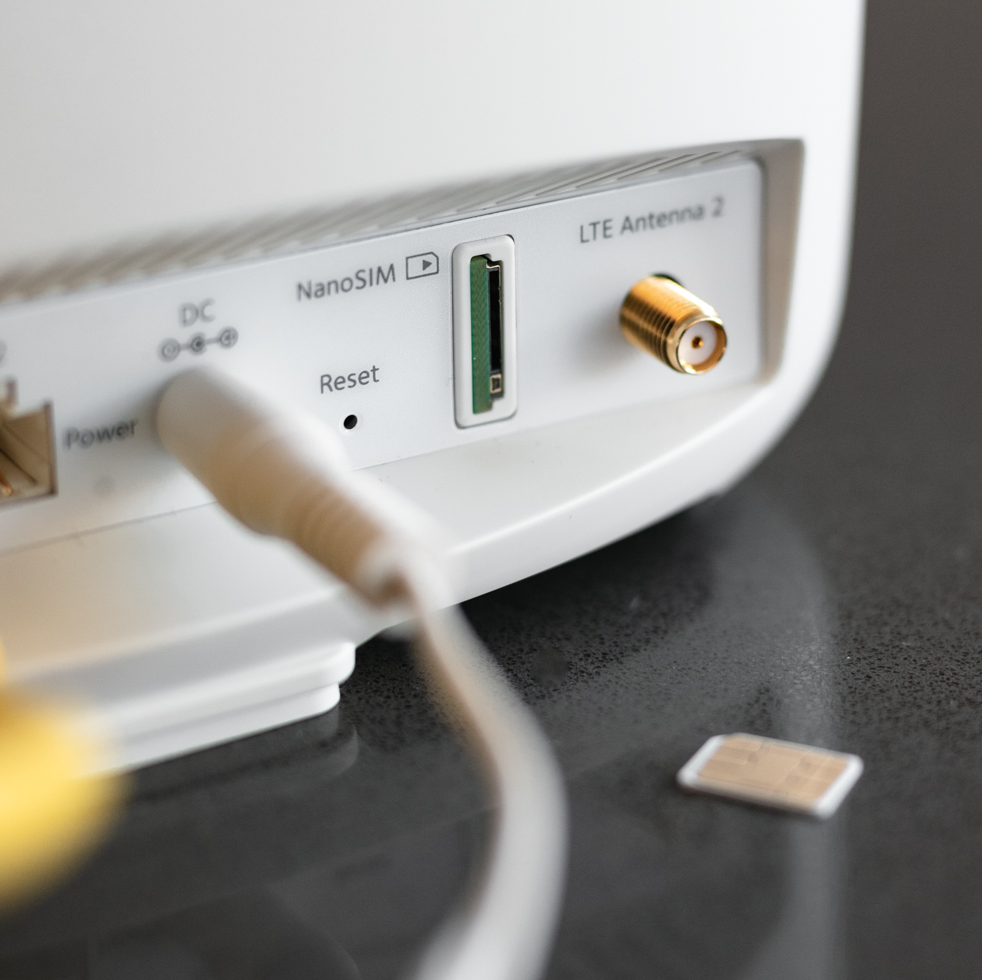

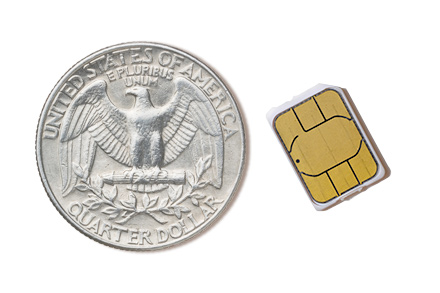

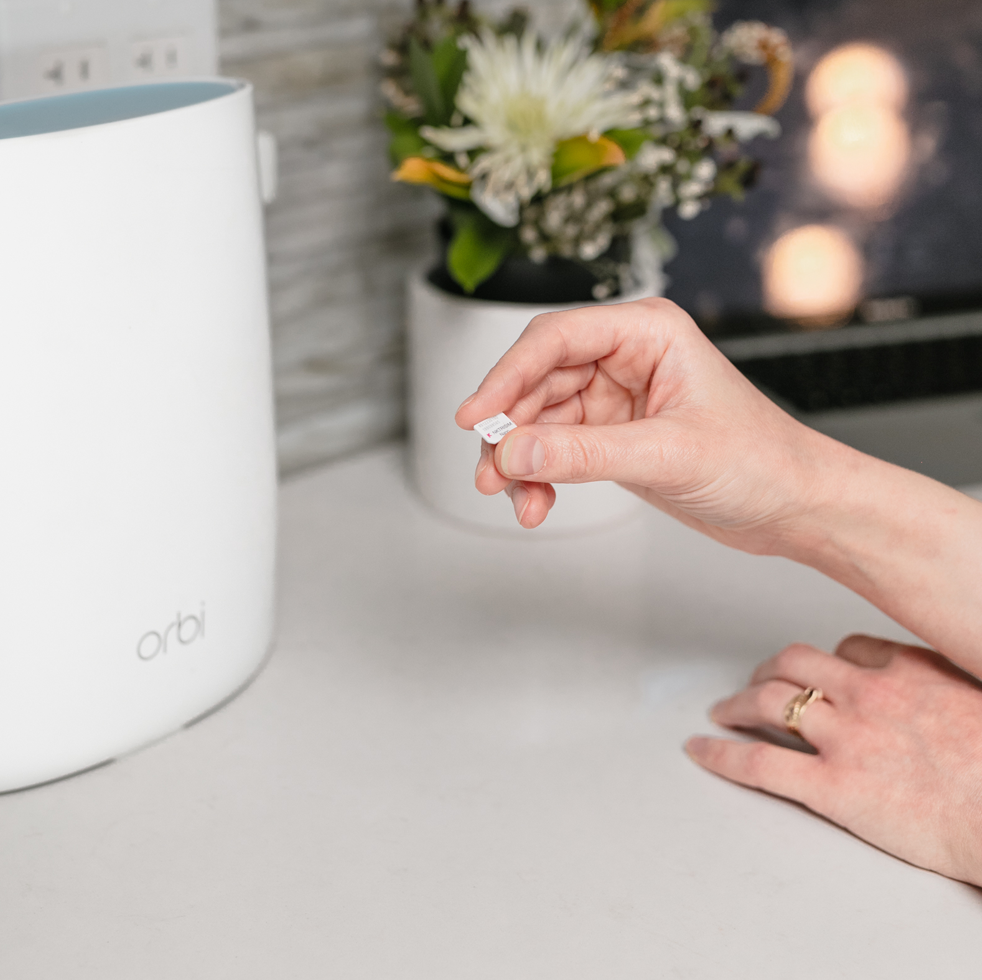

    • Integrated Cellular Modem Use fast internet speeds from the 4G LTE mobile network. Simply insert a Nano SIM card from AT&T, T-Mobile, Verizon Wireless or another major 4G LTE service provider, excluding Sprint legacy network.


    • Ethernet Ports Two Gigabit Ethernet ports (1 WAN, 1 LAN) keep your wired devices connected.

    Protection

    • NETGEAR Armor Cybersecurity Protect an unlimited number of connected devices from internet threats, both at home and on the go.


    • Smart Parental Controls Manage and monitor your kids’ screen time. Pause internet when it’s homework time, create profiles for each child, and more.

    Security

    • Guest WiFi Have visitors? Set up a separate, secure guest network with its own name and password.


    • Encryption Rest assured your WiFi is encrypted in accordance with WiFi security standards.

    Technical Specifications

    LRB20_tech_specs_image_1
    LRB20_tech_specs_image_2

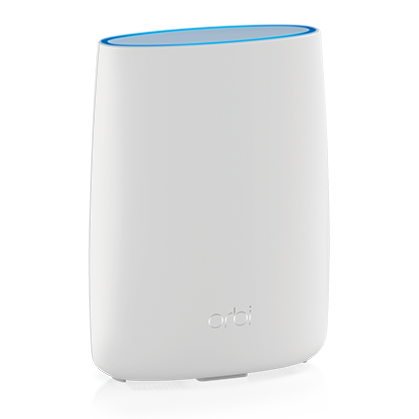

    • Orbi 4G LTE Router (LBR20) : Dimensions: 6.7 x 3.1 x 8.9in, Weight: 1.72lb
    • WiFi Coverage : 2,000 sq.ft.
    • Orbi 4G LTE Advanced Router (AC2200) : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands, MU-MIMO capable for simultaneous data streaming to multiple devices, Powerful Quad-Core 710MHz processor
    • AC2200 Tri-Band WiFi : 2.4GHz (400Mbps†) + 5GHz (866Mbps†) for WiFi devices to connect to the Internet
    • Dedicated Backhaul : 2X2 (866Mbps), 5GHz (866Mbps†) dedicated WiFi link for faster data connections between Orbi Router and (additional) Orbi Satellite
    • LTE Support : Built in 4G LTE Modem. LTE Category 18, capable of up to 1.2 Gbps. 4G LTE Band (LTE FDD): B2,4,5,7,12,13,14,17,25,26,29,30,66,71. 4G Band (LTE-TDD): B41. 3G Band: B1,4,5

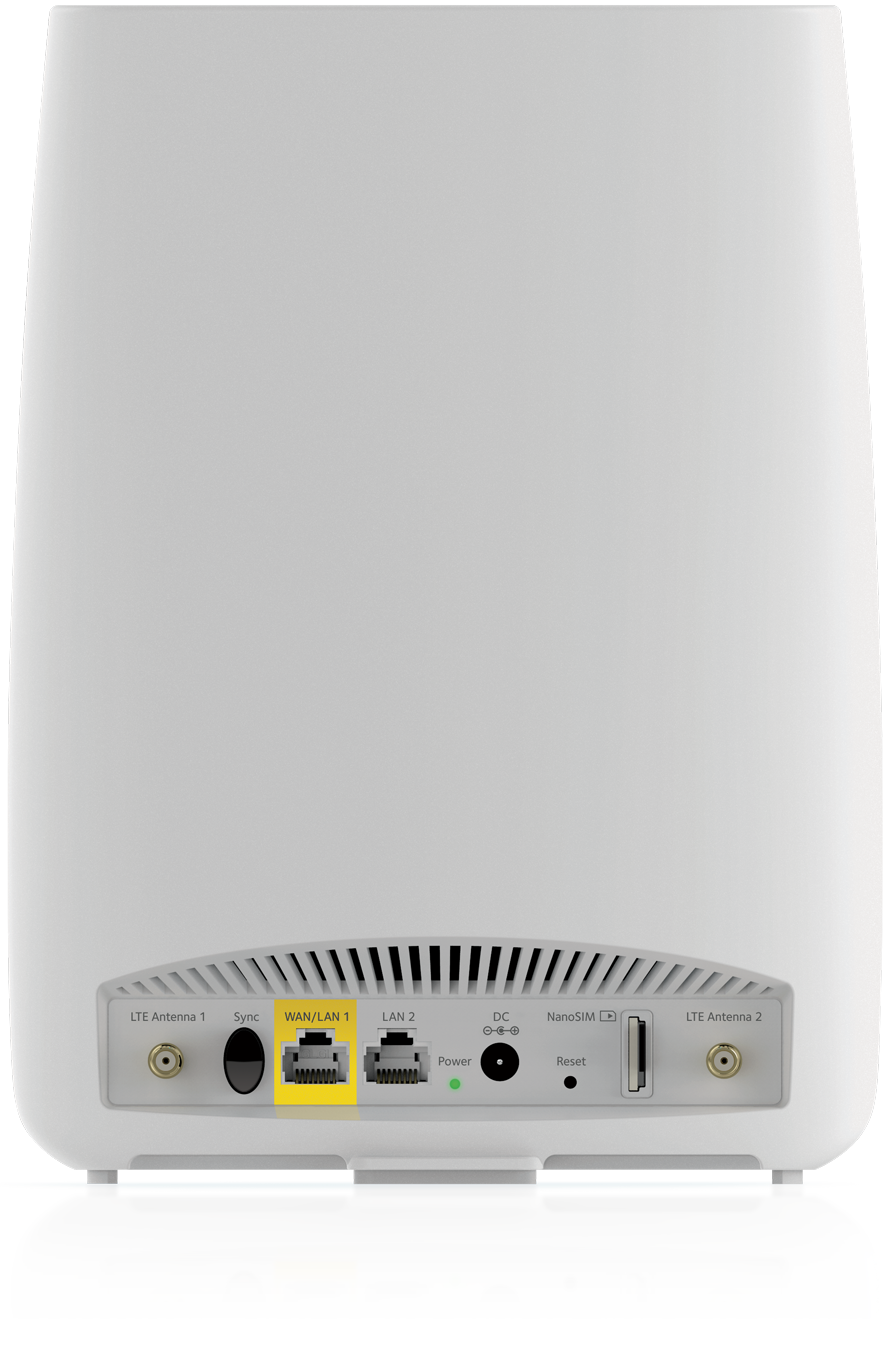

    • Ports : Two (2) external SMA type antenna ports (antenna not included), Two (2) 10/100/1000Mbps Gigabit Ethernet ports (1 WAN + 1 LAN)
    • Security : Advanced cyber threat protection for your PC, Mac® and mobile devices with NETGEAR Armor™ Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK), Guest WiFi Network is easy to setup separate & secure Internet access for guests, Circle® Smart Parental Controls to manage content and time online for all your devices.
    • Works with Amazon Alexa and the Google Assistant : Yes
    • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
    • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 2,200Mbps wireless speeds achieved when connecting to other 802.11ac 2,200Mbps devices.
    • †† Network must support subset of the 4G LTE bands listed under the Technical Specifications.
    • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
    • Support
    • One (1) Orbi LTE Router (LBR20)
    • One (1) 2m Ethernet cable
    • One (1) 12V/2.5A power adapter
    • Quick start guide
