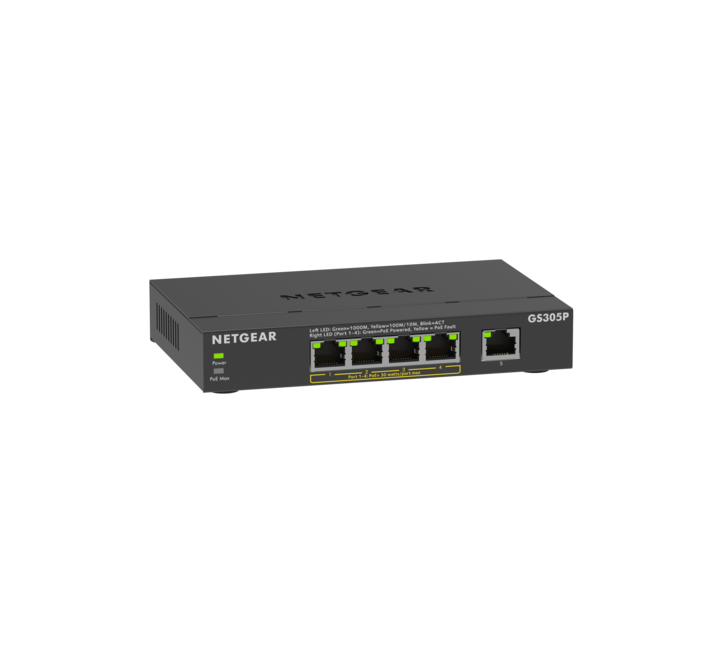

5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more. GS305Pv3 GS305P-300EUS GS305P-300EUS

Gigabit 5-port 300 Series SOHO Unmanaged PoE+ Switch (GS305Pv3) armor

5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (63W) armor

Gigabit 5-port 300 Series SOHO Unmanaged PoE+ Switch (GS305Pv3)

5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (63W) armor

5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.

Looking for GS305Pv1 or GS305Pv2? Please see the Helpful Links in the Tech Specs for more information.

5-Port Gigabit | GS305Pv3

5-Port | unmanaged | Multi-Gig | MS105

8-Port | unmanaged | Multi-Gig | PoE++ | MS108UP

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

ETHERNET PORT CONFIGURATION

5 Gigabit ports
PLUG-AND-PLAY

Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE

Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET

4 PoE+ ports with 63W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PoE POWER AUTO-BALANCE AND ALLOCATION

NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate.
VERSATILE MOUNTING OPTIONS

Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN

Ensure interoperability with any standards-based PDs
Product Datasheet

Technical Specifications

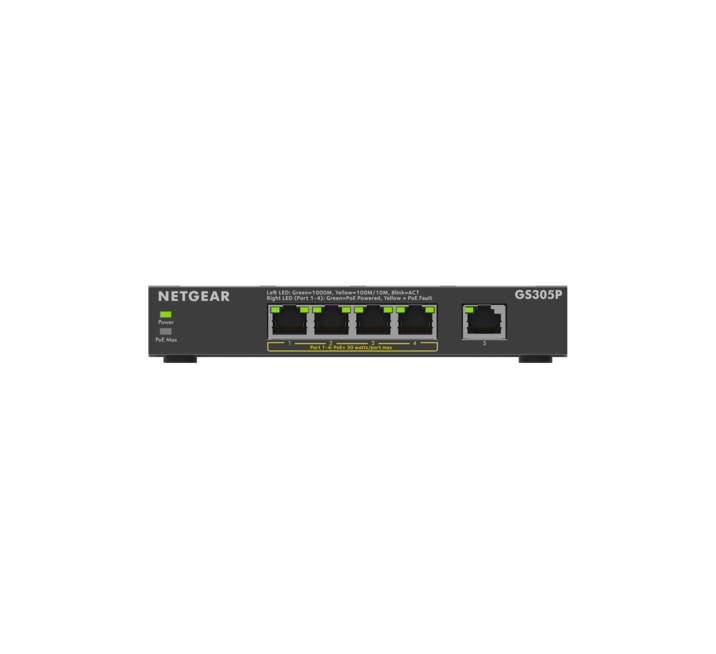

GS305Pv3 Tech Specs woshadow Front
GS305Pv3 Tech Specs woshadow Back
  • Dimensions (W x D x H) : : 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
  • Weight : 0.40kg (0.88 lb)
  • Speed : 100Mbps/1G
  • Number of Ports : 5
  • 4 PoE+ @ 30W each until budget is met
  • PoE budget : Up to 63W Total
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo frame support : 9,216 bytes
  • Queue WRR Ratio : 1:2:4:8
  • MAC table size : 2k
  • Packet buffer size : 128KB
  • IEEE 802.1p QoS : Yes
  • Power Consumption (Max/Standby) : 66.78W/1.02W
  • Operating Temperature : 0-40°C (32°F - 104°F)
  • MTBF (hours) : 4,113,947 hrs (469.32 years)
  • FCC Class : Class B
  • Fans : 0
  • Acoustic Noise Level @25C : Fanless

    • Warranty: This product is backed by a 3-year warranty.
    • Click here for coverage, availability and terms and conditions.
    • Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
