Provides ease of use in standalone access point mode. Connect to a router Ethernet port and 110V/220V AC to add 4 Ethernet Ports and 2.4GHz and 5GHz WiFi with combined throughput of 1.2Gbps WAC104 WAC104-100UKS WAC104-100UKS

Essentials Wireless (WAC104) armor

AC1200 Dual Band Wireless Access Point armor

Essentials Wireless (WAC104)

AC1200 Dual Band Wireless Access Point armor

Provides ease of use in standalone access point mode. Connect to a router Ethernet port and 110V/220V AC to add 4 Ethernet Ports and 2.4GHz and 5GHz WiFi with combined throughput of 1.2Gbps

AC1200 | WiFi 5 | Dual-band | WAC104
SHOP NOW

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Features

WIRELESS

Dual band 802.11ac WiFi 2.4 GHz + 5 GHz

Aggregate speed of 1.2 Gbps
External Antennas

110V/220V 12V External Power Adaptor
MULTI-CONFIGURATION

Access Point, and WDS point-to-point or Point-to-Multipoint wireless bridge
COMPATIBLE

Works with WiFi 4,5,6 devices (802.11n/ac/ax) including IPV6 Support
EASY SETUP

WiFi Protected System WPS Button for 1-touch client setup

Connect to existing Router
CONNECTIVITY OPTIONS

Four (4) built-in Gigabit Ethernet Ports, Connect Laptop, PC, game consoles and other wired devices
Product Datasheet

Technical Specifications

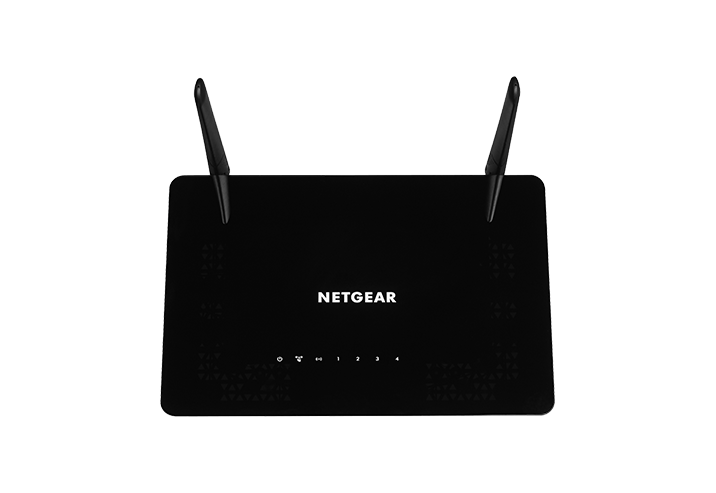

WAC104_tech_specs_image_1

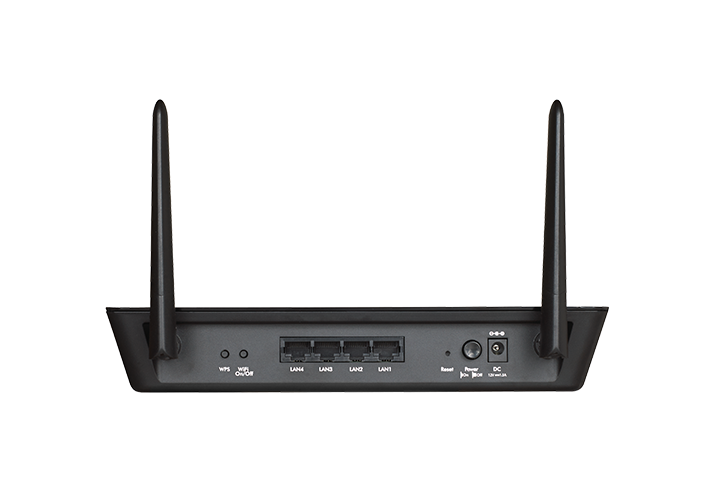

WAC104_tech_specs_image_2
  • Dimensions (L x W x H): 9.43 x 7.14 x 1.59in (239.65 x 181.45 x 40.6mm), Weight: 0.84lb (385g).
  • Standards : IEEE 802.11ac specification, IEEE 802.11n 2.0 specification, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a.
  • Frequency Band : 2.4GHz and 5GHz concurrent operation
  • Maximum Theoretical Throughput : 300Mbps (2.4GHz), 867Mbps (5GHz)
  • Maximum Number of Clients : 128
  • Deployment options : Standalone, Web UI.
  • Access Point : Antenna: 3dBi (external)
  • Advanced Wireless : WDS Point-to-point wireless bridge mode, WDS Point-to-multipoint wireless bridge mode.
  • Security : Wired Equivalent Privacy (WEP) Encryption, WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK), MAC Address filtering, 1 BSSID.
  • MAC ACL : Yes
  • VPN Pass-through : Yes
  • 802.11e WMM : (Wireless multimedia mode) for QoS
  • Simultaneous Bridge/Client Association : Yes
  • Power : Country-specific plug: 12V/1.5A (18W), 1.5 Amp power adapter, Power consumption: 8.1W (maximum).
  • Mounting : Desktop standable and Wall mountable
  • Physical Interfaces : Four (4) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X)
  • LEDs : Power, WPS, WiFi, LAN Activity
  • Default Reset : Yes
  • Operating Temperature : 32° to 104°F (0° to 40°C)
  • Storage Temperature : -4° to 158°F (-20° to 70°C)
  • Operating Relative Humidity : 10-90%
  • Storage Humidity : 5-95%
  • MTBF : @ 25°C > 285,000 hours,@ 50°C > 100,000 hours.
  • Safety Certification : CE (EN60950)
  • Optional Support : PMB0351: 5 years OnCall 24x7, PMB0331: 3 years OnCall 24x7, PMB0311: 1 year OnCall 24x7
  • Product Ordering Information : WAC104-100AUS, WAC104-100NAS, WAC104-100PES, WAC104-100PRS, WAC104-100UKS, WAC104-100INS

    • Warranty: This product is backed by a NETGEAR limited 3-year Hardware Warranty .

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
  • Support
  • 802.11ac Wireless AP (WAC104), Ethernet cable, Installation guide, Power adapter, localised to country of sale, Warranty/support information card
