10-Gigabit/Multi-Gigabit Plus (GS110EMX)
8-Port Gigabit Ethernet Plus switch with 2-Port Multi-Gig Ethernet (100M/1G/2.5G/5G/10G)
10-Gigabit/Multi-Gigabit Plus (GS110EMX)
8-Port Gigabit Ethernet Plus switch with 2-Port Multi-Gig Ethernet (100M/1G/2.5G/5G/10G)
GS110EMX 8-Port Gigabit Ethernet Plus Switch with 2 auto-adapt 5-speed networking ports (100M, 1G, 2.5G, 5G, 10G) support. Through an intuitive GUI it provides easy, reliable and affordable connectivity with VLAN, QoS, LAG and IGMP management capabilities.
10-Gigabit/Multi-Gigabit Plus
Features

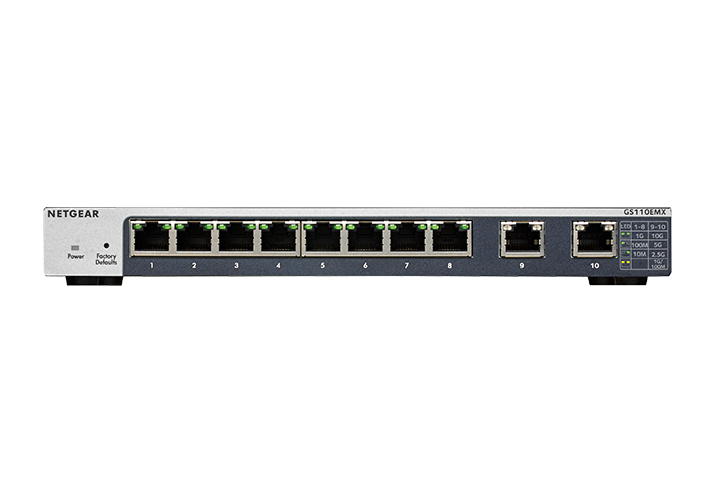

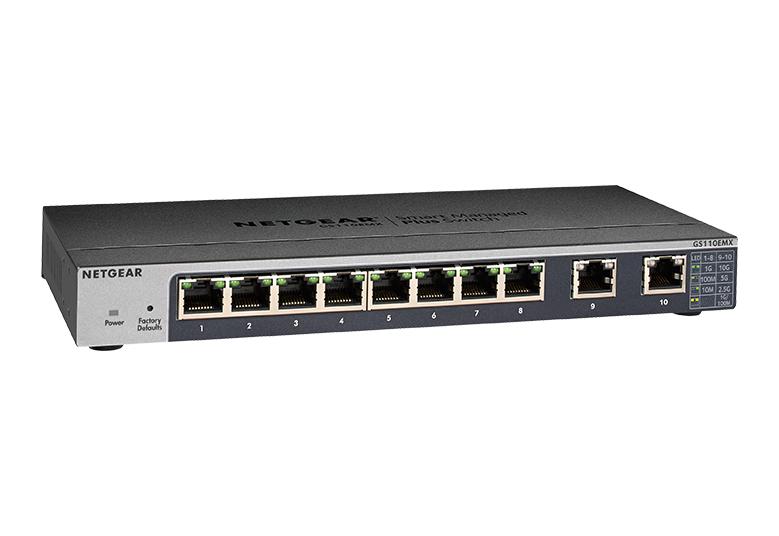

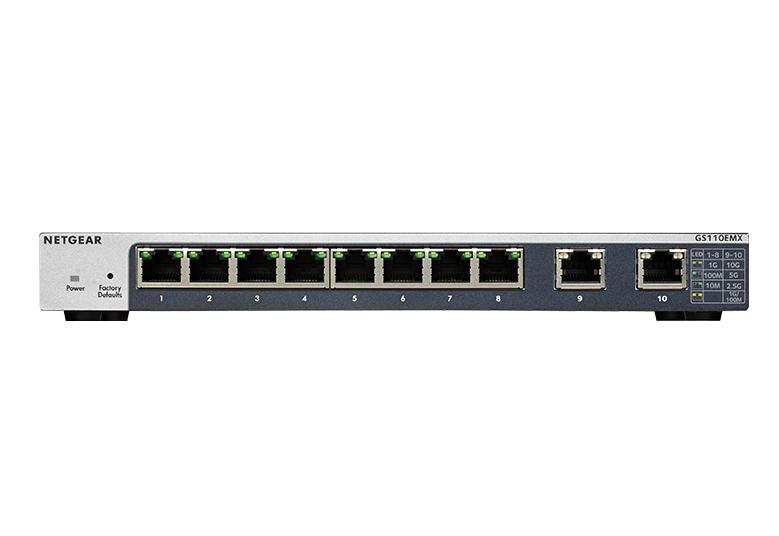

8 x 1G Copper Ethernet plus 2 x 5-speed Copper Ethernet that supports Fast Ethernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit, and 10-Gigabit connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Fanless design for silent operation
Desktop, wall-mountable or rack-mountable
PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
SILENT OPERATION: The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.
Technical Specifications
- Dimensions (W x D x H) : 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
- Weight : 0.75 kg (1.63 lbs)
- 100M/1G/2.5G/5G/10G RJ-45 copper ports : 2
- 10M/100M/1G Copper ports : 8
- Form Factor : Desktop/Wall-Mount/Rackmount
- Packet buffer memory : 128KB
- Bandwidth : 56Gbps
- MAC Address database size : 16K
- VLAN (# supported) : 64
- Number of LAGs & number of members : 5 LAGs with max 9 members in each LAG
- Supported multicast groups : 128
- Max number of source ports allowed (many to one port mirroring) : 9
- Bandwidth : 56Gbps
- Fan(s) : 0 ( Fanless)
- IEEE 802.3az (Energy Efficient Ethernet) : Yes
- Max power consumption (Watts) : 13.2W
- LEDs : Power, Speed, Link/Activity
- Acoustic noise level @ 25° C (dBA) : 0
- Operating temperature : 0° to 40° C
- Electromagnetic compliance (A or B) : B
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
- GS110EMX Support
