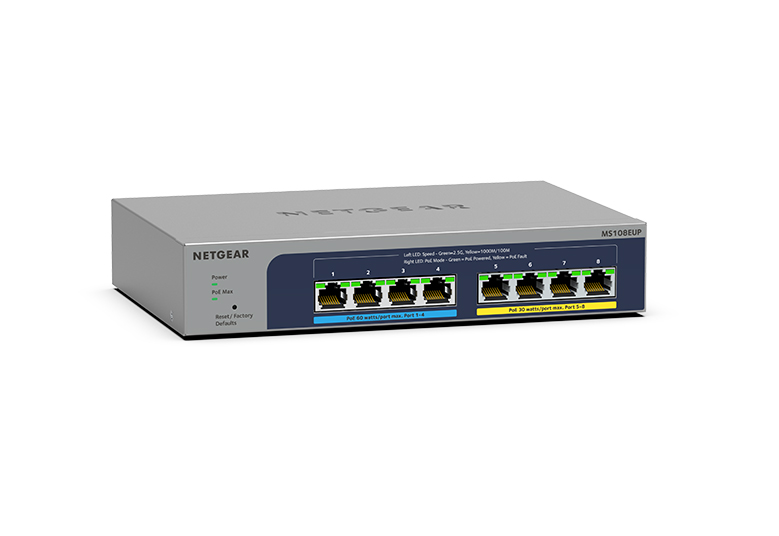

Multi-Gigabit Ethernet Plus Switch (MS108EUP)
8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus Switch
Multi-Gigabit Ethernet Plus Switch (MS108EUP)
8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus Switch
Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.
Simply Better Together
Combine your Multi-Gig Switch with WiFi 6 Access Points to optimize your network for power and speed.

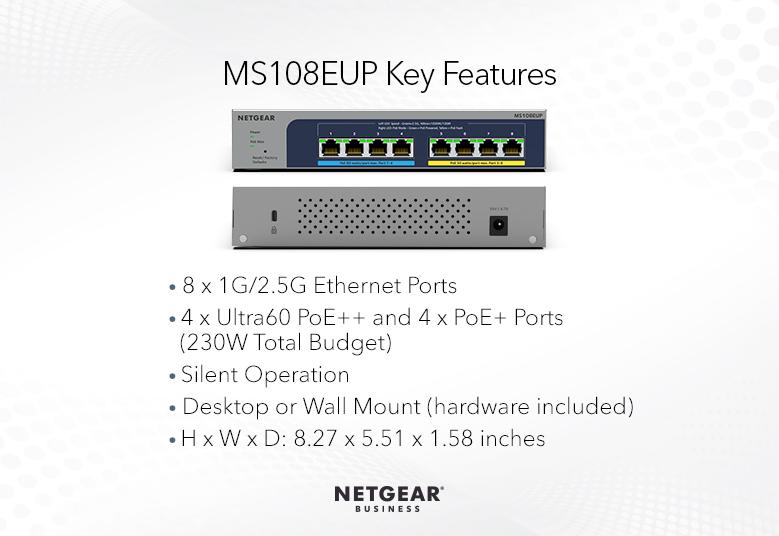

Features

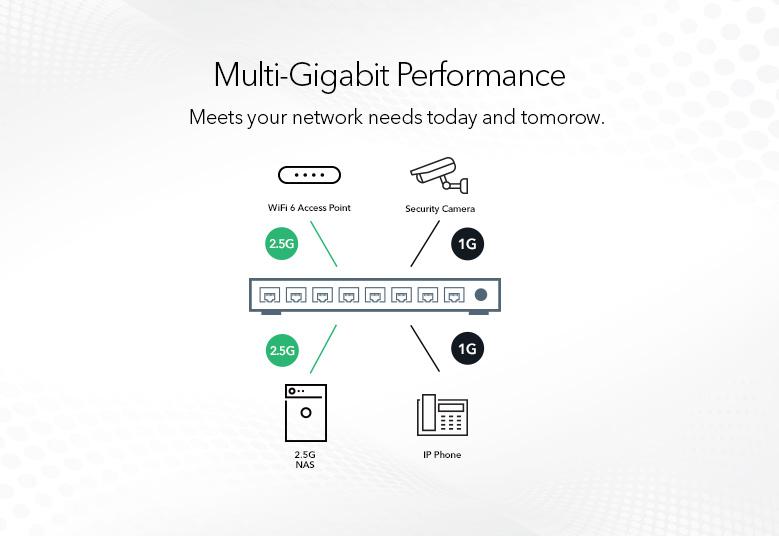

Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.Advanced PoE Controls

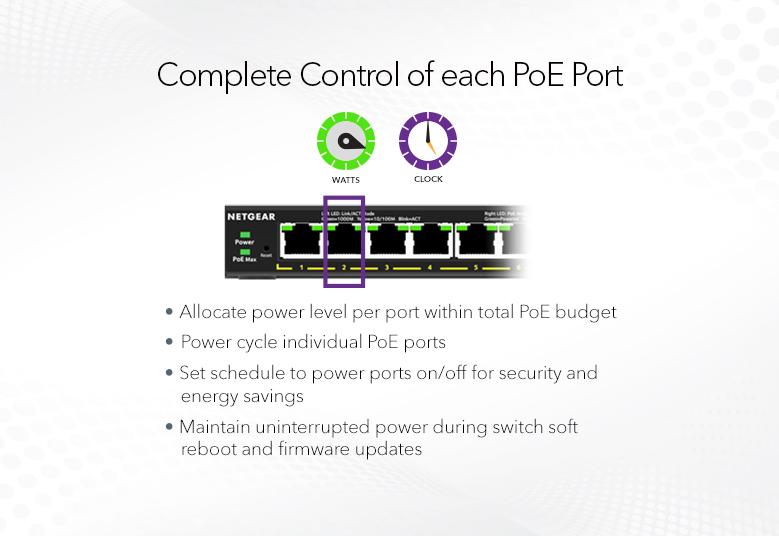

Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

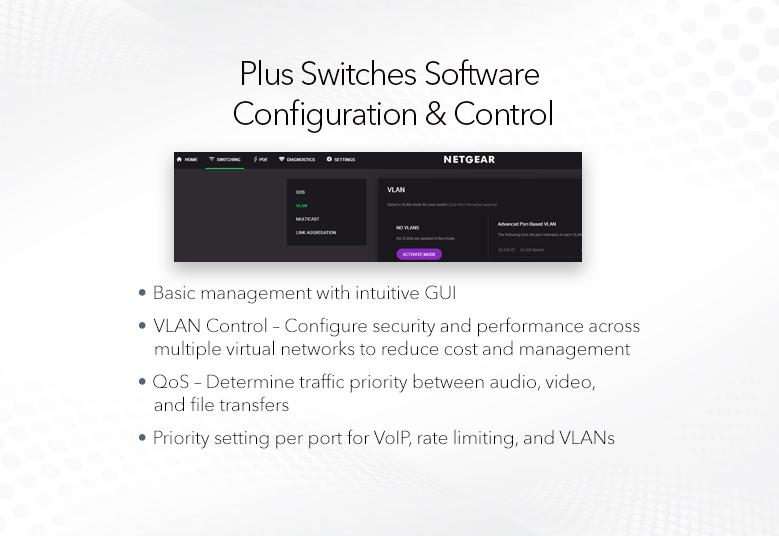

New and improved Plus switches

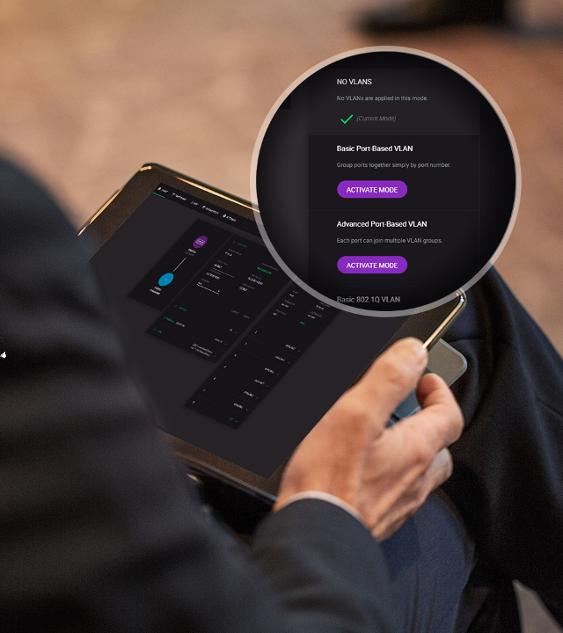

Along with the already great Plus features, MS108EUP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.
Room to Move
Auto-adapting 1G/2.5G ports ensure your devices are operating at their peak performance allowing you to realize faster speeds.

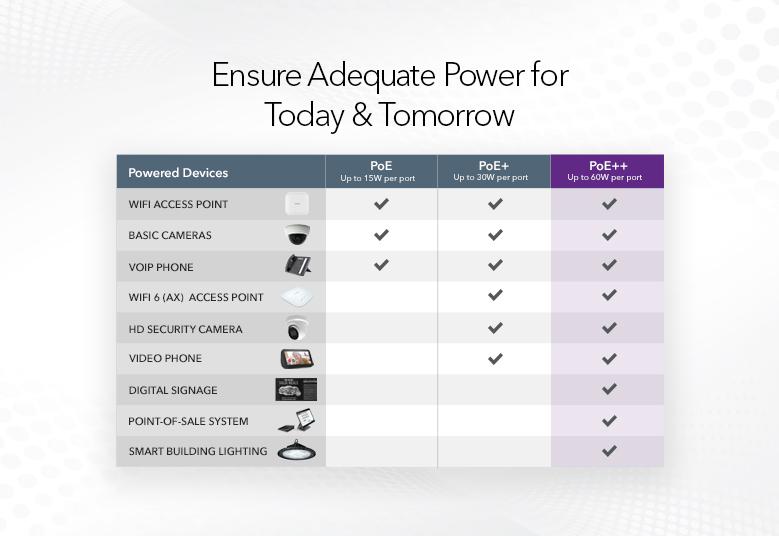

230W PoE Convenience
With 8 uninterrupted PoE ports, deploy PoE-based VoIP phones, IP cameras, AV-over-IP endpoints and wireless access points simply and securely.
Easy Management
Setup is simple – just plug and play. Configure your network using a user-friendly web GUI.
Technical Specifications
- Dimensions (W x D x H) : 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
- Weight : 0.9 kg (1.984 lb)
- Multi-gigabit copper ports : 8 (1G/2.5G)
- Number of PoE+ (802.3at) ports : 4
- Number of PoE++ (802.3bt) ports : 4
- Total PoE Power budget : 230 Watts
- Uninterrupted PoE : Yes
- Max MAC entries : 16K
- Buffer size : 1.5MB
- VLAN (Number Supported) : 64
- EEE : Yes
- DoS Prevention : Yes
- Internal/External PSU : External
- Max power (worst case, all ports used, line-rate traffic) : 230W
- Fans : 0
- Acoustic Noise Level @25C : Fanless
- Operating Temperature : 0° to 40° C (32 to 104F)
- MTBF : 373,643.7 hrs (42.6 yrs)
- Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement.
- Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
