  • 16 x 10G/Multi-Gigabit ports with 2 dedicated 10G SFP+ ports
  • Energy Efficient Ethernet for maximum power savings
  • Desktop, wall mount or rack mount placement
  • Configurable L2+/L3 Lite network features
  • 1-year of NETGEAR Insight Cloud Management included
 XS516TM XS516TM-10000S XS516TM-10000S
1-Year NETGEAR Insight Subscription Included

S3600 Series 10G/Multi-Gigabit Ethernet Smart Switches (XS516TM) armor

16-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports armor

1-Year NETGEAR Insight Subscription Included

S3600 Series 10G/Multi-Gigabit Ethernet Smart Switches (XS516TM)

16-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports armor

  • 16 x 10G/Multi-Gigabit ports with 2 dedicated 10G SFP+ ports
  • Energy Efficient Ethernet for maximum power savings
  • Desktop, wall mount or rack mount placement
  • Configurable L2+/L3 Lite network features
  • 1-year of NETGEAR Insight Cloud Management included

16-port 10G/Multi-Gig Switch | Insight Managed | XS516TM

8-port 10G/Multi-Gig Switch | Insight Managed | XS508TM

8-port | Insight | PoE++ | Multi-Gig/10G | MS510TXUP

8-port | Insight | Multi-Gig/10G | MS510TXM

24 Port Multi-Gig Switch | PoE++ | Insight Managed | MS324TXUP

8 Port Multi-Gig Switch | PoE++ | Insight Managed | MS108TUP

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

LEARN MORE
wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

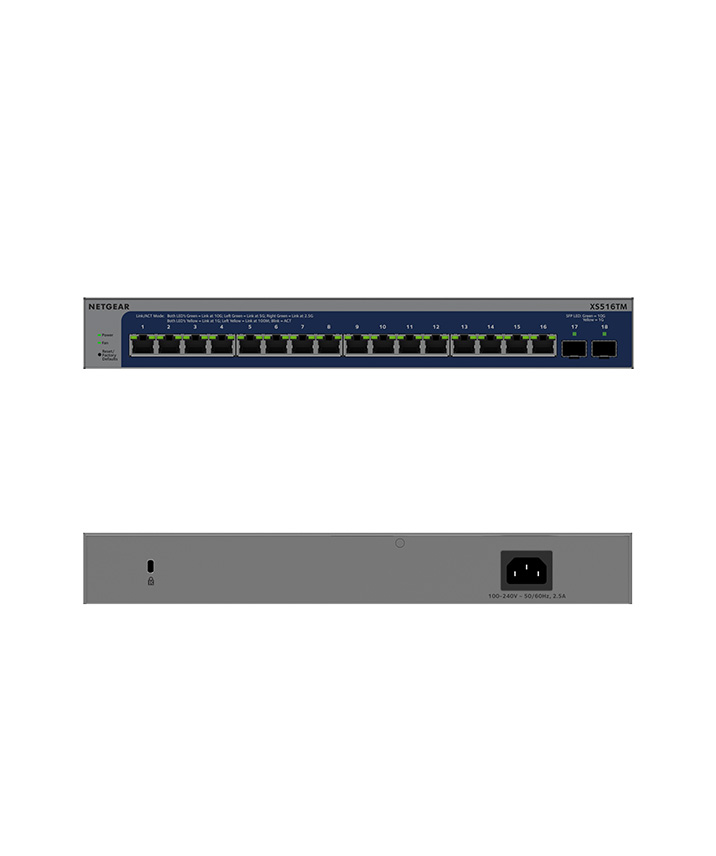

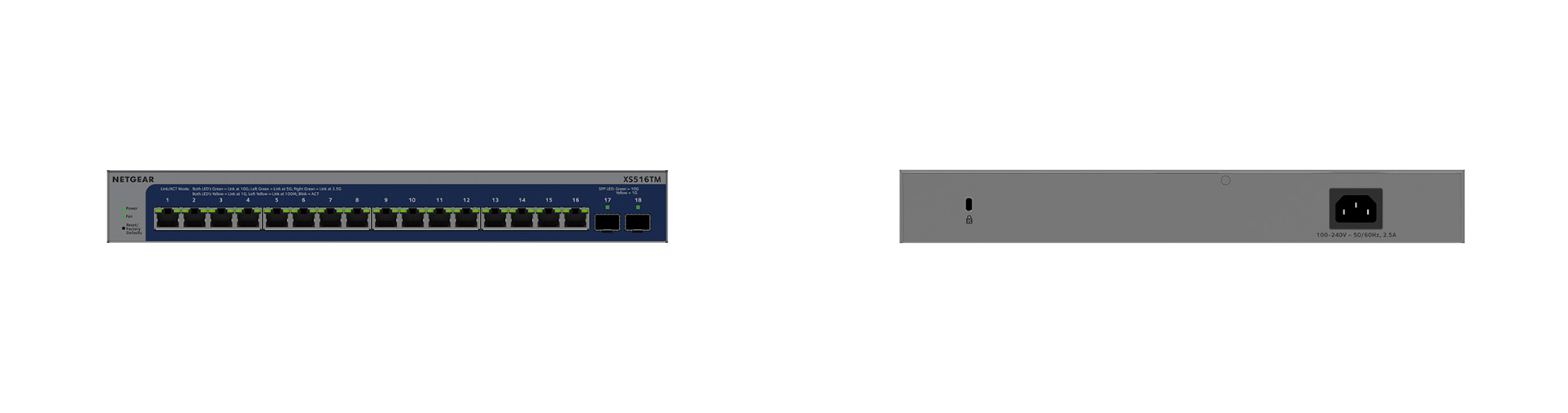

Desktop_XS516TM Mobile_XS516TM

  • NETGEAR XS516TM 16-port 10G/Multi-Gigabit Smart Switch with Insight Cloud Management
  • Power cord (varies by region)
  • Wall mount kit
  • Rackmount kit
  • Installation guide
  • Width
    330mm (13in)
  • Depth
    206mm (8.12in)
  • Height
    43mm (1.7in)
  • Weight
    2.45kg (5.4lb)
  • 10G/Multi-Gigabit ports
    16
  • 10G SFP+ ports
    2
  • Max MAC entries
    16K
  • Buffer size
    4MB
  • VLAN (Number Supported)
    512
  • VLAN routing
    Yes
  • Dynamic VLAN assignment
    Yes
  • MLD Snooping
    Yes
  • Static route
    Yes
  • Host ARP table
    1024
  • EEE
    Yes
  • DoS Prevention
    Yes
  • Internal/External Power Supply/Adapter
    Internal Power Supply
  • Max consumption (Watts)
    63.9W
  • FAN
    3
  • Acoustic Noise Level @25C (dBA)
    27.35 dBA
  • Operating Temperature
    0° to 50° C
  • MTBF
    506,741.9 hours (57.8 years)
  • NETGEAR Insight Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • Backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.

    *This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing 1, 3, or 5-year contracts.

    ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
