Orbi 970 Series Quad-Band WiFi 7 Mesh Add-on Satellite, Black Edition
Orbi 970 Series Quad-Band WiFi 7 Mesh Add-on Satellite, Black Edition
WiFi 7
technology
Up to
27Gbps
Up to
3,300 sq. ft.
10G
speeds
Expanding your Orbi™ system is as easy as the push of a button. Easily add 3,300 sq. ft. of additional WiFi 7 coverage to your existing Orbi 970 Series mesh system or router.
Read more
Notify me when this item comes back in stock
Successfully registered.
Features and benefits
Up to 27Gbps speed New!
Speeds up to 27Gbps† for unparalleled performance and coverage for your whole home, from the front door to the back yard and the basement to the rooftop
Quad-band Technology New!
Exclusive, patented Quad-Band technology with Enhanced Dedicated Backhaul ensures WiFi stays fast across all devices simultaneously
8k Streaming, Gaming and More
From 8K streaming to video conferencing, gaming, VR, and more, Orbi ensures your family can accomplish it all at once
360° WiFi Coverage New!
Elegant, new design and high-performance antennas provide exceptional 360° WiFi coverage across every corner of your home, no matter the layout
Reimagined Speed & Reliability New!
10Gbps† & 2.5Gbps† Ethernet ports unlock unbeatable speed and reliability for wired connections and 10Gbps wired backhaul option
Easy Set Up
Simply power on Orbi satellite and set it up with the Orbi app
How many Orbi Satellites do you need?
COVERAGE AREA
Consider square footage beyond your home footprint to maximize performance and ensure coverage for outdoor areas.
HOME SHAPE
L or U-shaped homes may need additional satellites to extend WiFi around corners.
WIRED CONNECTIONS
Orbi satellites give your ultra-fast wired connections where you need them.
CONSTRUCTION MATERIALS
Brick and concrete weaken WiFi signals. Add-on satellites will strengthen WiFi coverage.
What’s new
LATEST WIFI TECHNOLOGY
Fastest, most powerful WiFi ever
DEDICATED BACKHAUL
Multi-gig speed across all devices
WHOLE-HOME COVERAGE
High-performance antenna & design
LAN PORT
Future-proof for the fastest speeds
Product overview
Quad-Band
WiFi for the fastest speed to all devices
Up to
3,300 sq. ft.
WiFi coverage
Up to
27Gbps
maximum WiFi speed
Up to
200
concurrent devices
Orbi works with any internet provider.
There’s no need to worry about compatibility. Simply plug Orbi into your current router and you’ll be enjoying whole-home WiFi in a few easy steps.
Satellite
Product specifications
-
Orbi Satellite (RBE970B)One (1)
-
2m Ethernet cableOne (1)
-
19v/3.16A power adaptersOne (1)
-
Quick Start GuideOne (1)
-
Height11.58 inches (294.03mm)
-
Width5.68 inches (144.38mm)
-
Depth5.15 inches (130.79mm)
-
Weight3.96 lbs (1.79kg)
SATELLITE
-
WiFi CoverageUp to 3,300 sq. ft.
-
SpeedBE27000 (11,530 + 8,647 + 5,765 + 1,147Mbps)†
-
Simultaneous Quad-Band WiFi with dedicated backhaul
6GHz3 (4x4/320MHz, 4K-QAM): 11,530Mbps
5GHz-1 (4x4/240MHx, 4K-QAM): 8,647Mbps, Dedicated Backhaul
5GHz-2 (4x4/160MHz, 4K-QAM): 5,765Mbps
2.4GHz (4x4/40MHz, 1K-QAM): 1,147Mbps
-
AntennaTwelve (12) high-performance internal antennas with high-power amplifiers
-

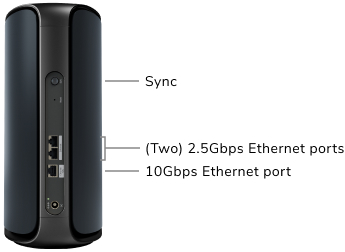

Ports (each)
One (1) 10Gbps Ethernet LAN port
Two (2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports
-
Orbi App:For easy installation and management
-
Separate WiFi Networks for secure access:
Main network for your connected home devices
IoT network for your IoT devices
Guest network for your guests
-
WPA3:For secure WiFi connection to devices
-
Automatic Firmware Update:Delivers latest security patches to router automatically
-
VPN Support:Provides secured remote access to your home network
-
NETGEAR 3-year limited hardware warranty (valid only if purchased from a NETGEAR authorized reseller)
-
90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
Discover a superior class of WiFi
Built on a quarter century of expertise, Orbi is fundamentally different WiFi, built for those who demand the best.
Footnotes:
† Maximum wireless signal rate derived from IEEE® 802.11specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 27Gbps wireless speeds achieved when connecting to other 802.11be 27Gbps devices. Up to 5Gbps wireless speeds achieved when connecting to other wireless speed 5Gbps devices. Up to 2.5Gbps wired speeds achieved when connecting to other wired speed 2.5Gbps devices. Up to 10Gbps wired speeds achieved when connecting to other wired speed 10Gbps devices.
‡ Requires client device that supports 320MHz bandwidth on WiFi. Four times faster than 80MHz WiFi bandwidth.
†† Gigabit service plans & compatible cable modem required for Gigabit or Multi-Gig Internet speeds.
1 NETGEAR Armor™ Powered by Bitdefender® requires a paid subscription after the initial 1-year free trial. Visit www.netgear.com/armor
3 MU-MIMO capability requires both router and client device to support MU-MIMO.
4 6 GHz band is limited to indoor range.
5 Requires compatible AX clients with DL-OFDMA and UL-OFDMA support.
