Standalone Smart Switch designed for converged networks, big or small. 1 Year Insight subscription included. GS724TPPv3 GS724TPP-300EUS GS724TPP-300EUS

Smart w/ optional Cloud (GS724TPPv3) armor

24 Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 2 SFP Ports (380W) armor

Smart w/ optional Cloud (GS724TPPv3)

24 Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 2 SFP Ports (380W) armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Standalone Smart Switch designed for converged networks, big or small. 1 Year Insight subscription included.

Looking for GS724TPPv1? Please see the Helpful links in the Tech Specs for more information.

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Insight mobile app or Insight Cloud Portal

Web browser-based management GUI

Smart Lite CLI

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Security

MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication (EAP)

MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP

Dynamic VLAN Assignment

Guest VLAN

TACACS+

3 HTTPS /SSL versions

TLS session

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP

LLDP-MED

Dual Image

SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client

DHCP clients

DHCP snooping

Ping and traceroute client

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 4-year subscription is included.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

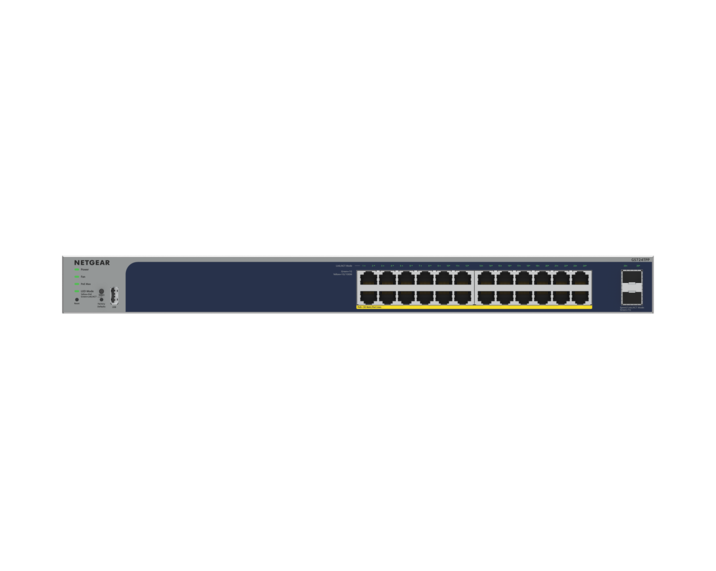

Tech_Specs_Image-GS724TPPv3_woShadow_Front

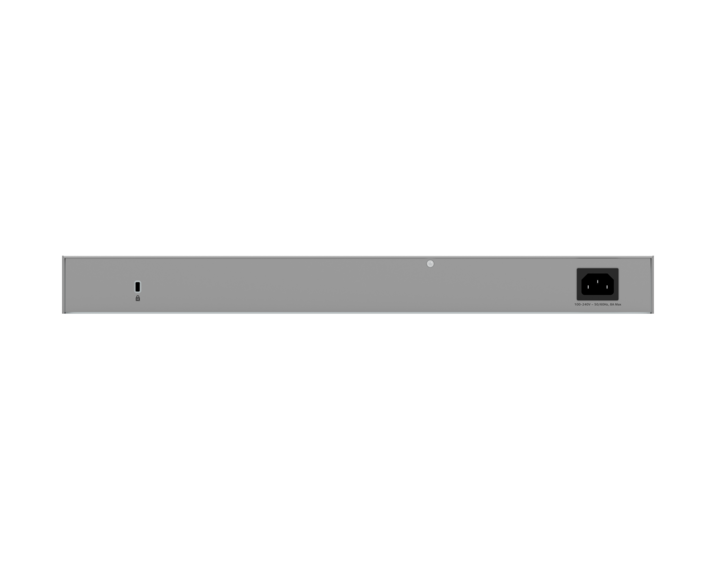

Tech_Specs_Image-GS724TPPv3_woShadow_Back
  • Weight (kg) : 3.7 kg (8.1 lb)
  • Dimensions (WxDxH) : 440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7in)
  • Model Description : 24 Port Gigabit PoE+ Smart Switch w/ optional Remote/Cloud Management and 2 SFP Ports (GS724TPPv3)
  • Management : Insight Remote/Cloud Manageable with 1 Year Insight subscription included
  • 10/100Mbps ports : N/A
  • Gigabit ports : 24
  • SFP ports : 2
  • Number of PoE ports : 24
  • PoE+ (802.3at) : 24
  • Total PoE Power budget (Watts) : 380W
  • Max MAC entries : 16K
  • Buffer size : 1.5MB
  • VLAN (Number Supported) : 256
  • VLAN routing : N/A
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : N/A
  • Static route : N/A
  • Host ARP table : N/A
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External : Internal 100 240VAC 50 60Hz
  • Max consumption (Watts) : 396.95W
  • FAN : 2
  • Acoustic Noise Level @25C (dBA) : 33.60
  • Operating Temperature : 0° to 50° C
  • MTBF : 1,310,422 hours (149.5 years)
    • ProSupport: CAT 1
    • Create an account at mynetgear.com, log in and purchase a ProSupport contract.

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
