S350 Smart Switches (GS324TP)
24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (190W)
S350 Smart Switches (GS324TP)
24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (190W)

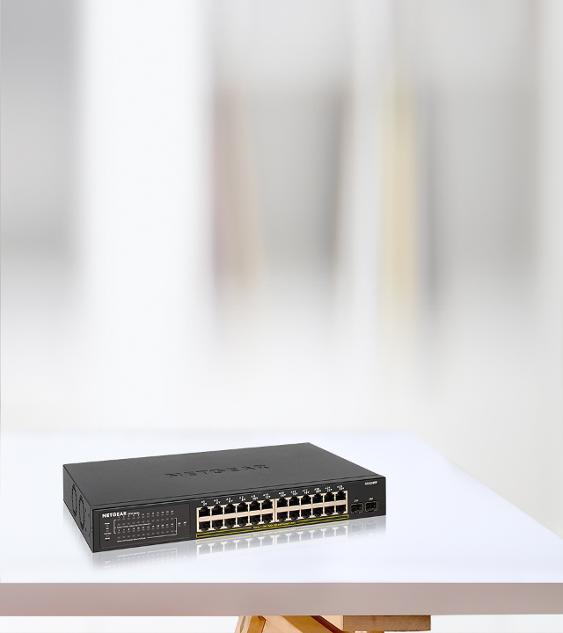

Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Also benefit from advanced PoE controls and high PoE budget for any PoE deployment. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.
Features
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP

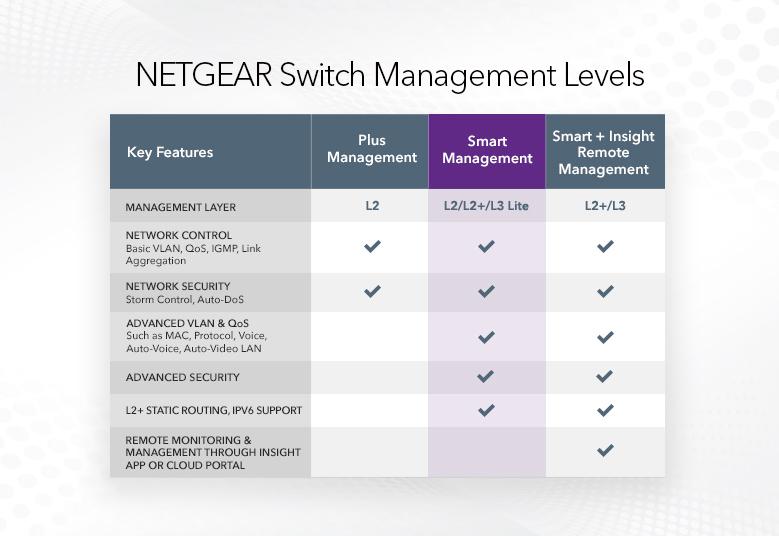

Switch Management
Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
Registration through NETGEAT Insight App
IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
Spanning Tree, Routing and Stacking
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Security
MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication EAP
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions (Selected models)
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant

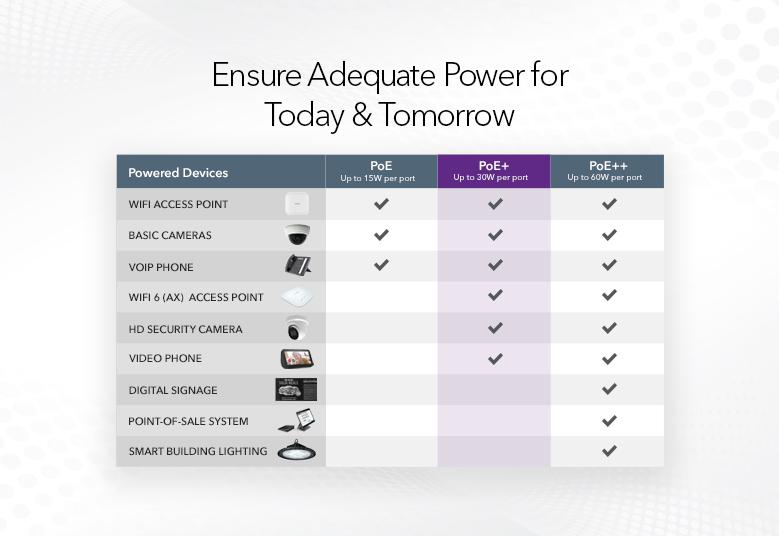

Great choice of PoE options
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing PoE options that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.
IEEE 802.3at PoE+
PoE devices encompass VoIP phones, IP Security Cameras, Wireless access points, proximity sensors, door locks and other IoT devices. Wave 2 802.11ac access points and PTZ cameras increasingly require 30W (PoE+).

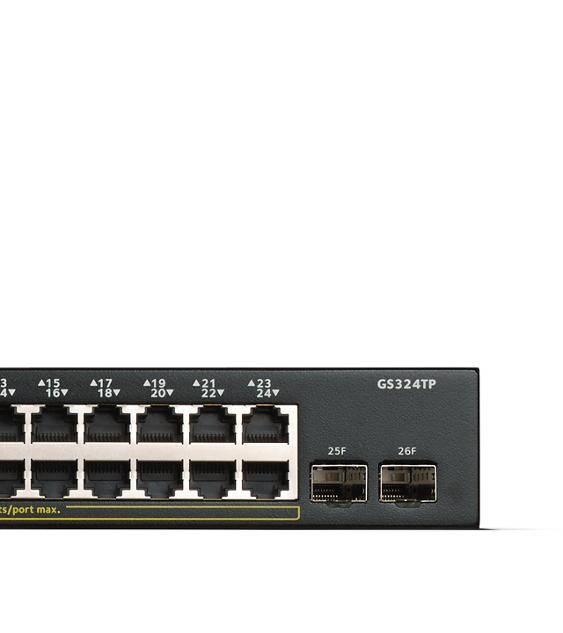

Dedicated SFP Fiber Uplinks
Two dedicated SFP ports provide fiber uplinks without sacrificing any downlink Gigabit port.
SOFTWARE FEATURES
Dynamic VLAN Assignment
IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.
Robust Security Features
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users. Features include: 802.1x authentication, DHCP filtering, ACL filtering.
Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video. Features include: Port-based or 802.1p-based prioritization, Port-based ingress and egress rate limiting.
Auto-VoIP, Auto-Voice and Auto-Video
Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams
Protected Ports
Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
Advanced per port PoE controls
Remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, secure access door locks, IoT devices…)
DHCP Snooping
Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.
Dual Firmware Images
Dual firmware image for transparent firmware updates / configuration changes with minimum service interruption.

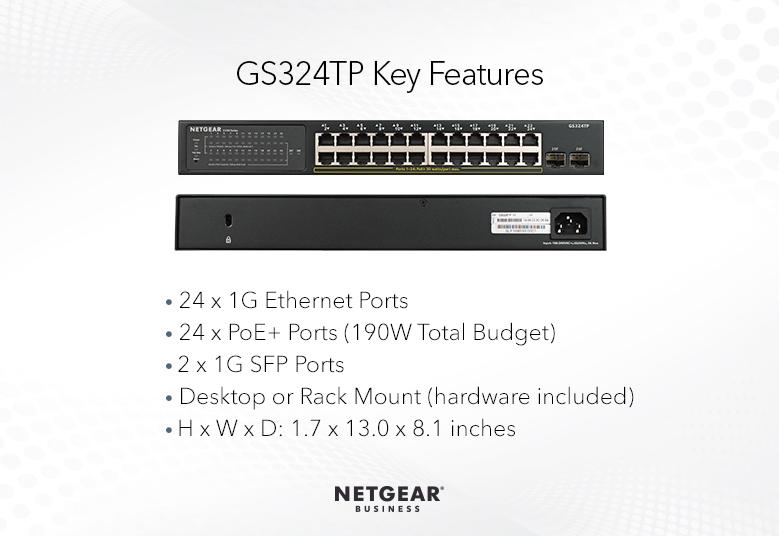

Technical Specifications
- Weight (kg) : 2.69kg (5.93lb)
- Dimensions (WxDxH) mm : 330 x 206 x 43mm(13.0 x 8.1 x 1.7in)
- Model Description : NETGEAR® S350 Series 24-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports
- Gigabit ports : 24
- SFP ports : 2 (dedicated)
- PoE+ (802.3at) ports : 24
- Total PoE Power budget (Watts) : 190W
- Max MAC entries : 16K
- Buffer size : 512KB
- VLAN (Number Supported) : 256
- VLAN routing : N/A
- Dynamic VLAN assignment : Yes
- MLD Snooping : N/A
- Static route : N/A
- Host ARP table : Yes
- EEE : Yes
- DoS Prevention : Yes

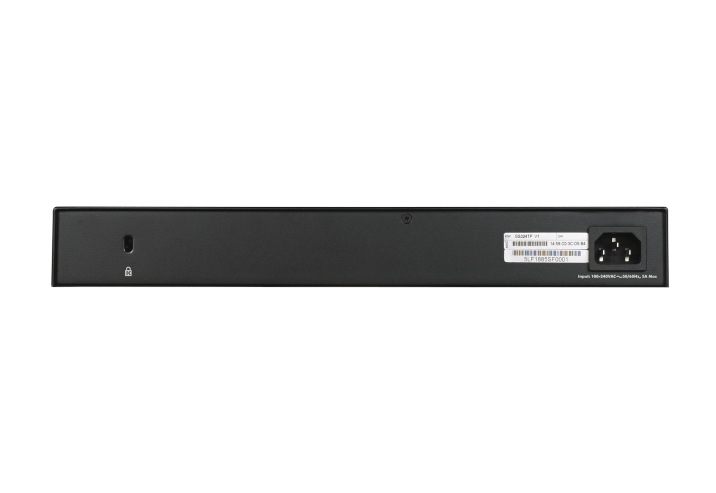

- Internal/External Power Supply : Internal 100-240VAC ~ 50-60Hz, 5A Max
- Max consumption (Watts) : 229.9W (full PoE)
- FAN : 2
- Acoustic Noise Level @25C (dBA) : 32.8 dBA
- Operating Temperature : 0° to 45° C (32° to 113° F)
- MTBF : 1,328,429 hrs(152 yrs)
- Warranty: This product is backed by a NETGEAR 5-year Hardware Warranty .
- 5-year Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone, email and chat for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- GS324TP Support
